12

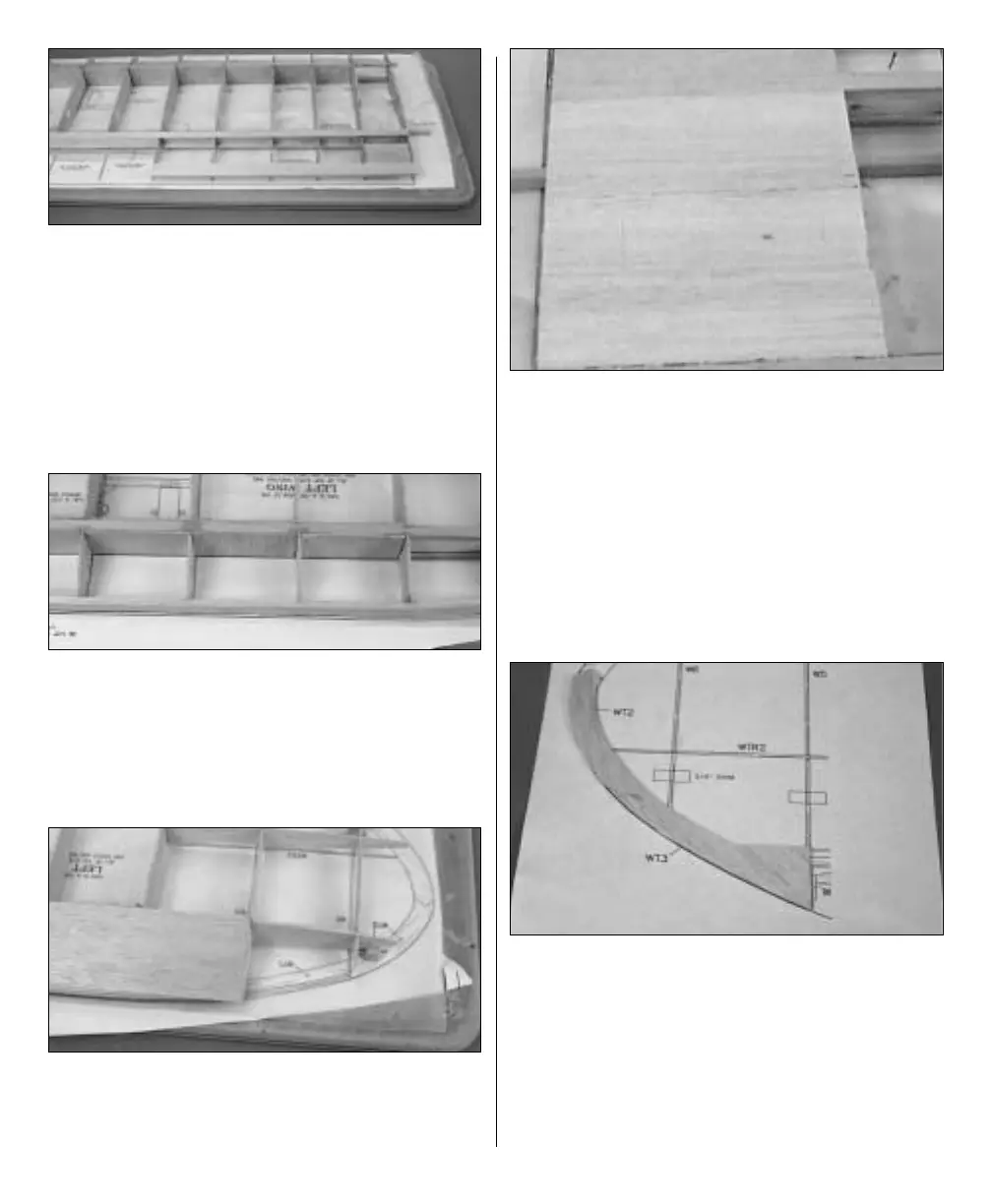

❏❏21. Fit and glue the 3/32" x 1/2" x 36" balsa
TE spar sheeting onto the top of the ribs and the rear
webs from rib W1 to rib W5 using medium CA.
❏❏22. Taper the lower TE sheeting to the contour
of the top of the ribs. Fit and glue the
3/32" x 15/16" x 36" balsa TE sheeting onto the
top of the TE of the ribs from ribs W1 to the last W3
using medium CA.
❏❏23. Fit and glue a 1/8" x 1/2" x 36" LE edge
stick onto the front of the ribs. Fit and glue a second
1/8" x 1/2" x 36" balsa LE stick onto the first.
❏❏24. Sand the top of the LE to match the airfoil
shape of the ribs.
❏❏25. Glue the 3/32" x 3" x 36" LE sheeting
onto the spar, ribs and leading edge using medium
CA. Sand the tip edge flush with the tip side of W5
and the root flush with W1.
❏❏26. Using a 3/32" x 3" x 24" balsa sheet,
glue the center sheeting from the W1 rib to the first
W3 rib.
❏❏27. From 3/32" x 3/8" x 30" balsa sticks, fit
and glue the cap strips to the tops of ribs W3 to W5.
Do not cap strip rib W6.
❏❏28. Do not laminate WT2 or WT3 together.
Glue the 3/32" die-cut balsa WT2 to WT3 over the
plans. Make two of these for each wing tip.
❏❏29. Laminate two of the 3/32" die-cut balsa
WT1's. Make one of these for each wing tip.
