❏ 13. Sand bulkheads 4, 5 and 6 flush with the top
of the fuse.
❏ 14. Turn the fuse upside-down. Glue the servo
tray to bulkheads 5 and 6.
❏ 15. Sand bulkheads 5 and 6 flush with the
bottom of the fuse.

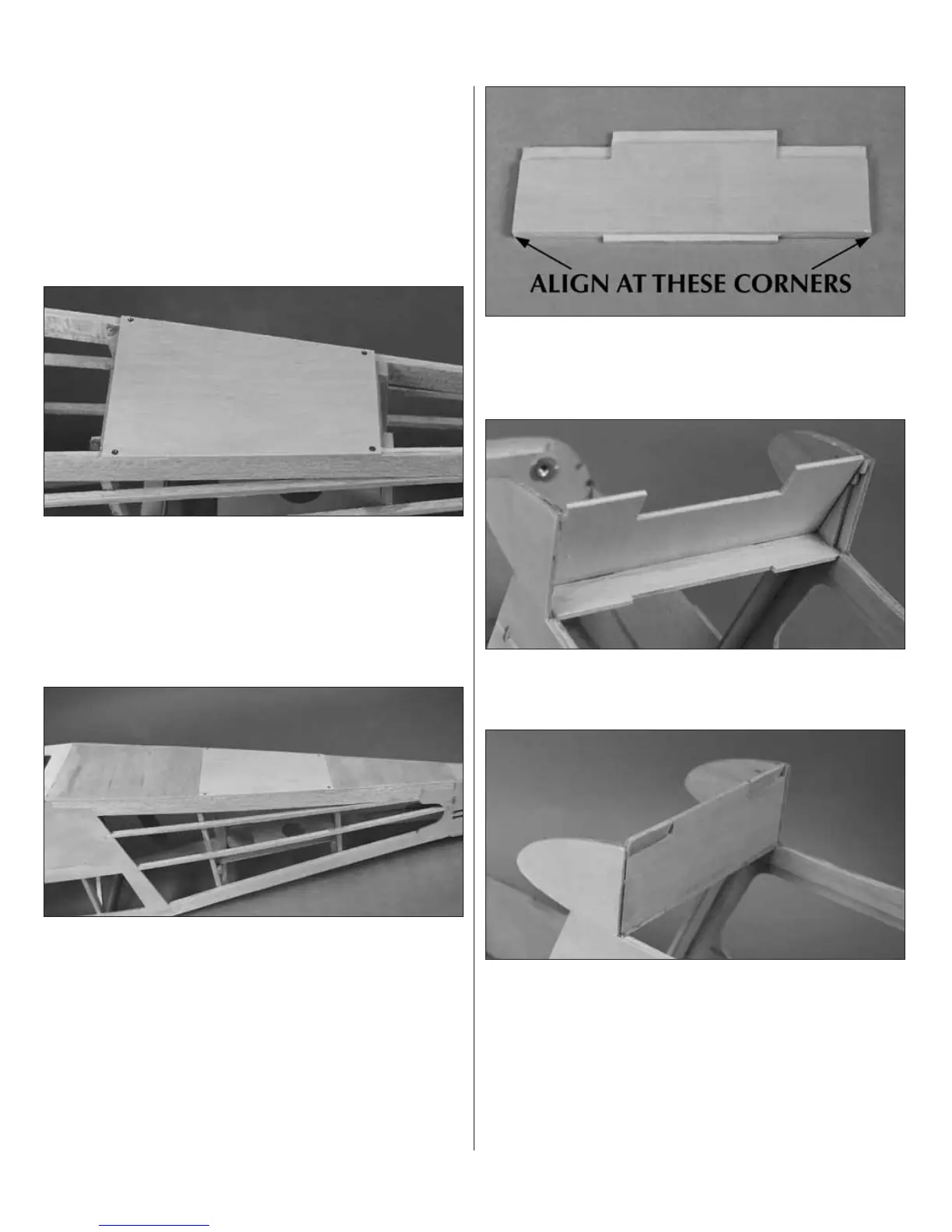

❏ 16. Fit the servo hatch in place, trimming as
necessary. Note: The hatch is made oversize to
allow for any deviations in building.
❏ 17. Mount the hatch to the fuse with four #2 x
3/8" flat head screws.
❏ 18. Using 3/32" x 3" x 30" balsa, sheet the
bottom of the fuse with the grain running across
the fuse bottom, NOT along the length of the fuse.
Note: Be careful not to glue the hatch to the fuse.
Save the leftover sheeting for the front deck.
❏ 19. Turn the fuse right-side up. Laminate the die-
cut 1/8" ply bulkheads 3B and 3C with medium CA,
aligning the bottom corners.
❏ 20. Glue the die-cut 1/8" ply 3D bulkhead
support in place.
❏ 21. Epoxy the laminated 3B and 3C in place.
