Terminal Connections
All connections are made to terminals on the back of the unit.
Terminal screws to be tightened to 8 inch-pounds torque.
See pages 9 &10 for complete wiring information.
Programming Overview

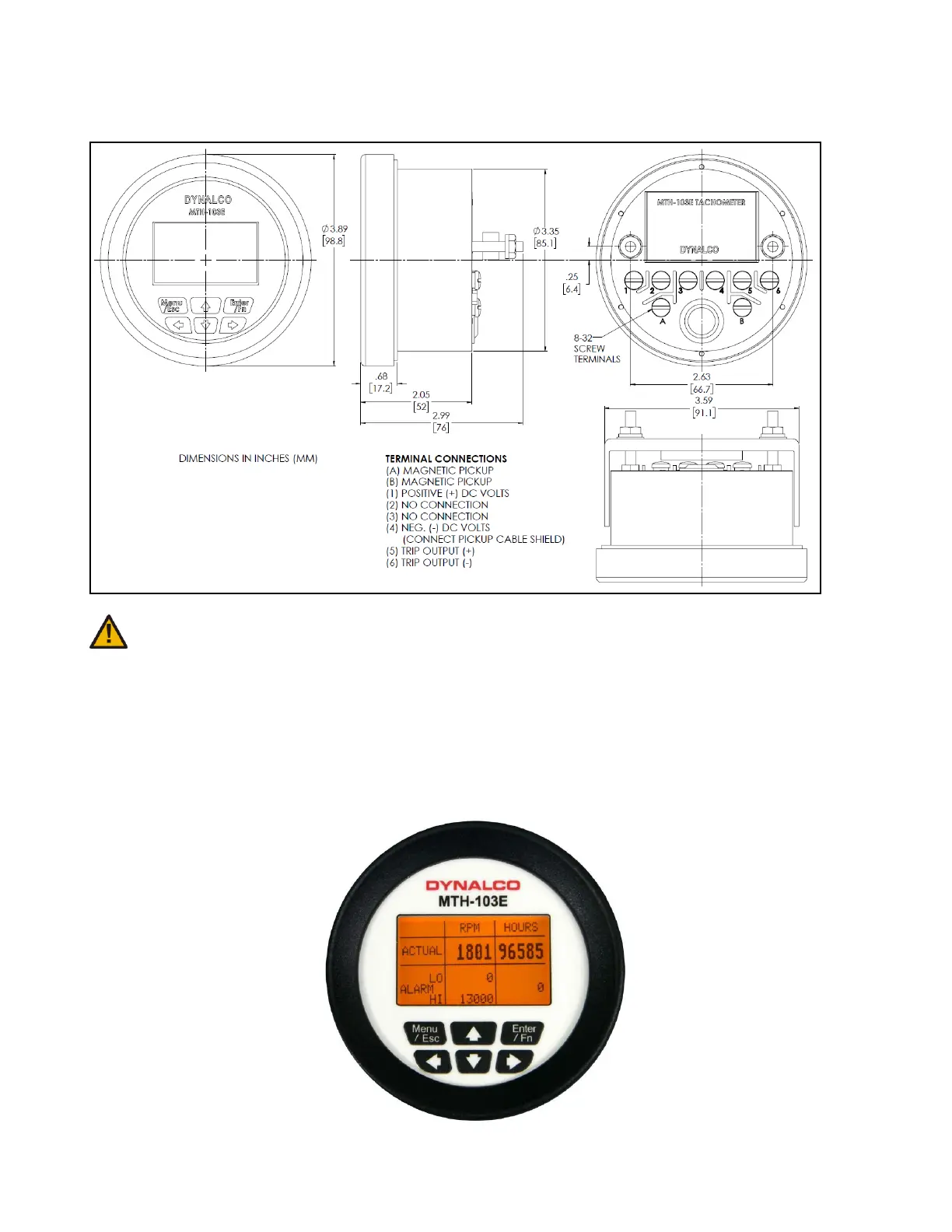

DIM E NS I ONS IN INCHES ( MM)
</! . 89
[98 .8]
68 L j
[17.2] 2.05
[
52
l 2.99
>----- [ 76 ] ---~
TERM I NAL CONNECTIONS
(A ) MAG N ETI C PICKUP
(BJ MAG NETI C PIC KUP
(I ) POSITIVE (+) DC VOLTS
(2) NO
CO NNEC TION
(3) NO
CO NNECTION
(4) NEG . (-)
DC VOLTS
(
CO NNEC T PICK UP CA BL E SH IELD)
(5)
TRI P OU T PUT{+ )
(6) T
RI P OU TPUT{-)
8- 32
SC RE W
TERMINALS
