Dynamic Mounting Down and Out Mount - Page 3

- 3 –

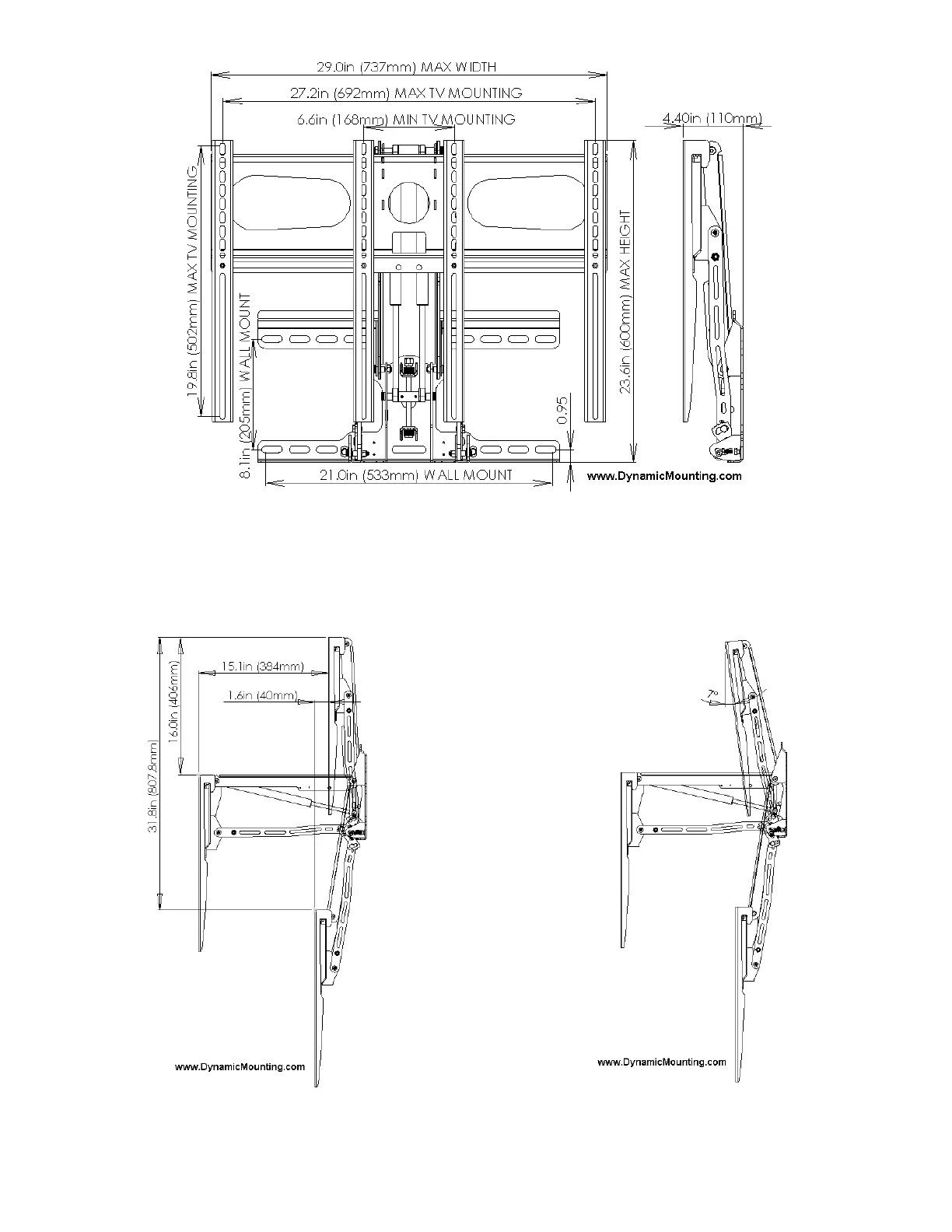

Figure 1
Mount Overall Size, Television Mounting Hole Pattern Range, Wall Mounting Hole Pattern Range
Note: Mount Only Comes with 2 television Mounting Arms, Not the 4 Shown
Figure 2 Side Views of Mount, Shown in the Top, Bottom, and All the Way Out Positions
Vertical in Up Position
Max Tilt (7 Degrees) in Up Position
Note: Vertical tolerance in the Out and Bottom Positions is +/-1 degree.
Top Position
Bottom Position
Out Position
