parts.
a、Disassemble four lock-nuts between foot
plate and pipe-protective, and then remove
foot plate.
b、Disassemble six screws (M8×25)
between foot plate and pipe-protective.
c、Disassemble six screws (M12×35) among
foot plate, cover and spring cylinder, then
remove foot place.
NOTICE！Do not to remove two screws
(M12×25) between cover and spring cylinder
when you operate step “c”. Be careful to
spring and cover bounced.

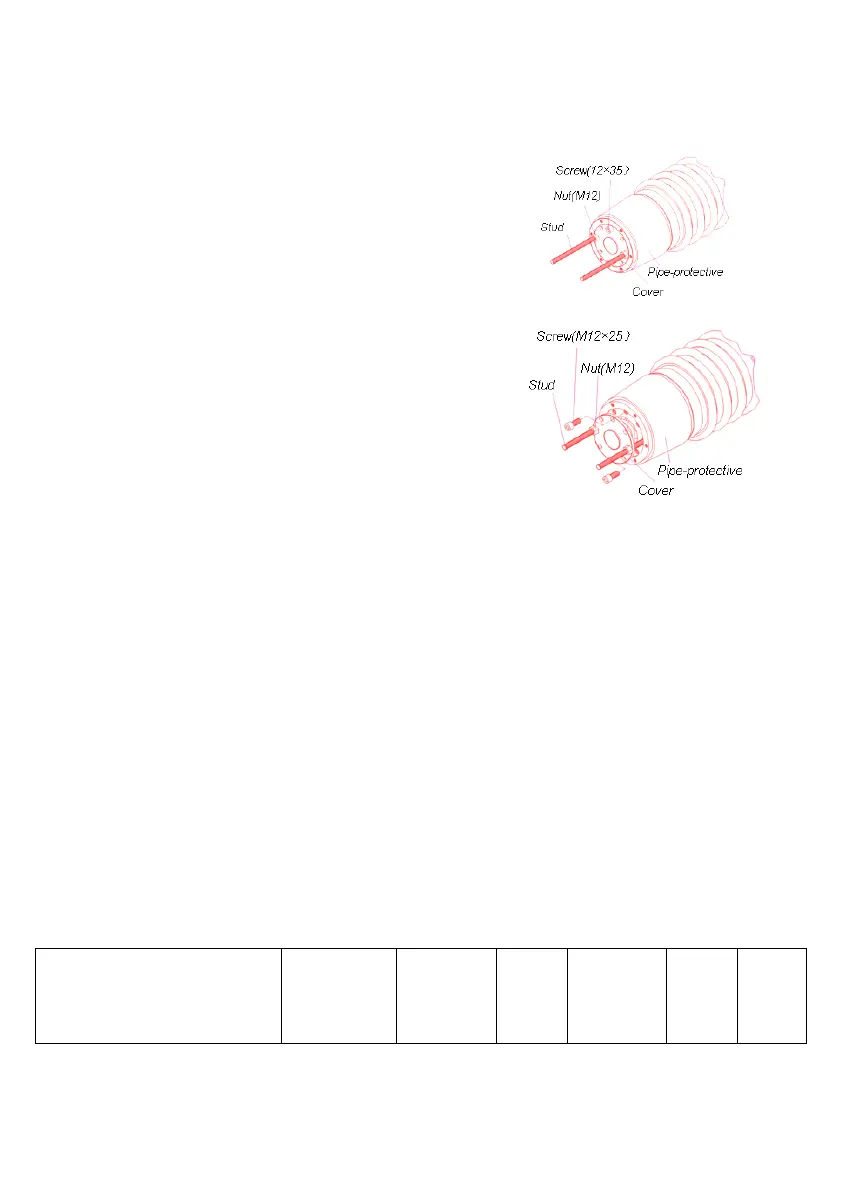

d、Install two stud (applicable types) in two disassembled screw (12×35)
positions , then attach two stud with two nut(M12) (applicable types) on
the cover. See right fig..
e、Remove two screw(M12×25) between cover and spring cylinder, then
slowly and equably remove two nut(M12). See right fig..
CAUTION！Keep people away from in the front two stud when remove
spring, serious injury.
CAUTION！Do not allow two stud to turn when remove spring. Be
careful bounce.
