- 19 -
(Check the fuel intake of the carburetor.)
4In case the engine does not start with well supplied fuel, try using
fresh fuel.
4 work machine jumping instability or no strength
(1) work, when the ground is too hard, the machine will be beating is
too large, or not stable, and the effect is not ideal. At this time, the
shifting switch proper adjustment is small, transferred to the
appropriate location.
(2) when the ground is too soft, the machine will appear no strength,
compaction effect is not good. This can put finger switch to the
maximum, if the maximum or the effect is not obvious, even when the

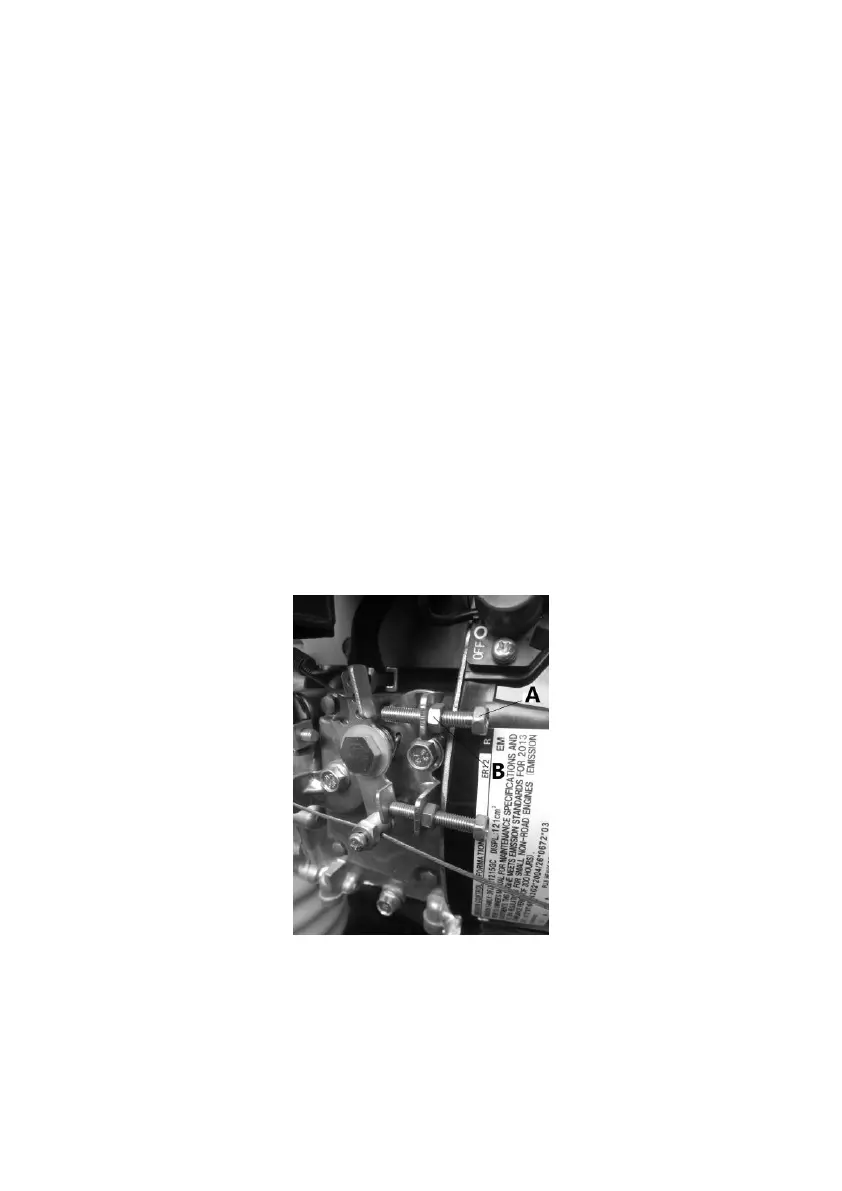

engine speed increase. Loosen the nuts bolts B, A back half circle,
increases the speed of 100 rpm, after adjustment, tighten the nut B.
The following diagram:
