T-1031-4 EN CC 102/102-II/C, CC 122/122-II/C, CC 142/142-II/C 2
X1
X4
X2
RX3
1
2
3
4
5

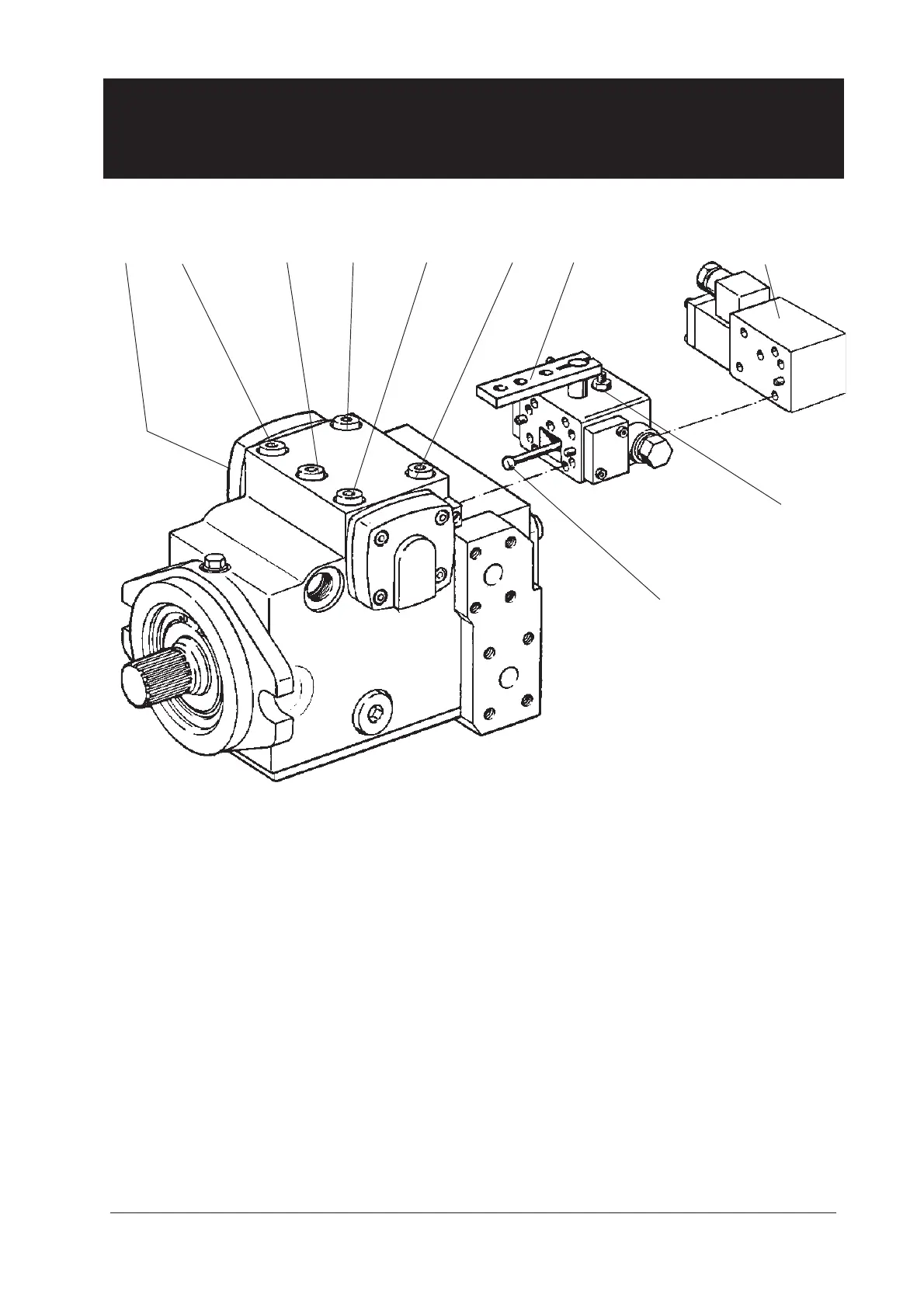

1 Mechanical neutral adjustment
2 Forw/Rev lever
3 Brake valve
4 Hydraulical neutral adjustment
5 Feed back link
X1 Test port before servo cylinder
X2 Test port before servo cylinder
X3 Test port in servo cylinder
X4 Test port in servo cylinder
R Housing pressure test port
Propulsion pump P/N 35 70 08
CC 102-II/C, CC 122-II/C, CC 142/142-II/C
See Workshop Instruction W-1006 for further information.
