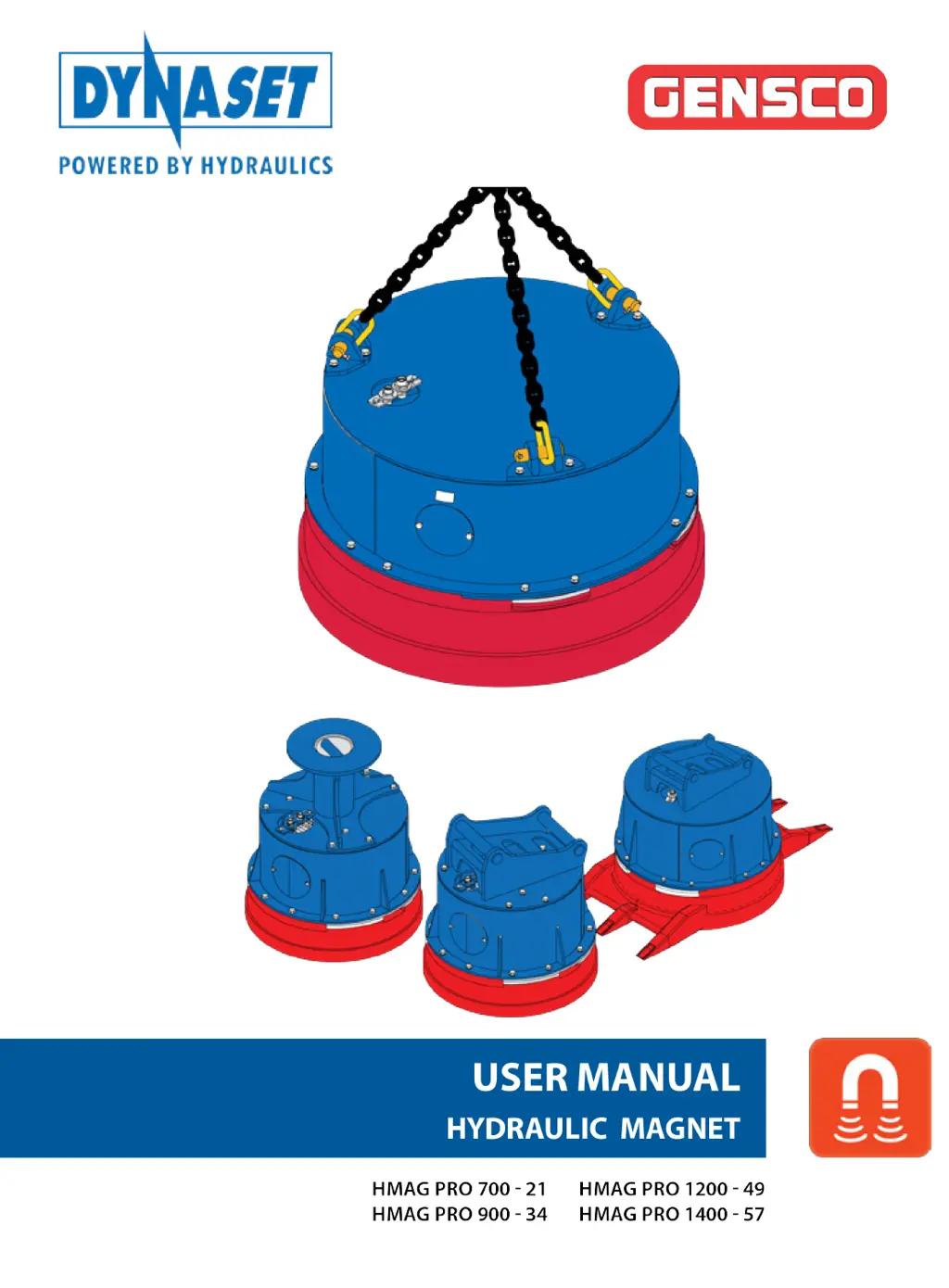

Dynaset GENSCO HMAG PRO 700-21

Questions and Answers

K
Kevin PowellAug 3, 2025
What to do if Dynaset Construction Equipment magnet shuts down by itself after magnetization is started?
- J
  josecampbellAug 3, 2025
  If the Dynaset Construction Equipment magnet shuts down by itself after magnetization is started, it may be due to the generator's output voltage being too high, causing overloading. If you are using a CMG PRO generator with multiple control cards, check the connection between terminals 6 and 7 on the different cards. If the connection is lost, repair it. If the connection is in order, the control card may be broken and needs to be replaced.
D
dennismurphyAug 13, 2025
What to do if Dynaset Construction Equipment HMAG PRO is spilling oil from the cover?
- M
  Mrs. Jacqueline Johnson DDSAug 13, 2025
  If oil spills from the Dynaset Construction Equipment HMAG PRO's cover, it's likely because the pressure line is connected while the return line is disconnected, and the pressure relief valve is leaking oil. Check the connection, connect the hoses to their correct places, and clean the spilled oil.
C
cohenscottAug 17, 2025
What causes Dynaset Construction Equipment magnet to suddenly drop collected metals after moving it?
- J
  Jennifer TurnerAug 17, 2025
  If the Dynaset Construction Equipment magnet drops collected metals after moving it, and it magnetizes after dropping the load, it's likely due to a drop in the system's hydraulic flow when moving the boom. The demagnetization begins too fast when the system’s hydraulic flow to the generator drops. The demagnetization delay has to be adjusted to be longer. Contact DYNASET for more information about adjusting the delay.
B
Brian PriceAug 23, 2025
Why is there low output voltage at no load in Dynaset Construction Equipment?
- C
  Chris HarrisAug 23, 2025
  Low output voltage at no load in Dynaset Construction Equipment may be due to poor contact in the electric system. Inspect all internal contacts and wirings of the generator. Also, check and clean the brushes and slip ring.
S
Shane SantiagoAug 27, 2025
What causes output voltage less than 20Vac in Dynaset Construction Equipment?
- R
  Richard JohnsonAug 27, 2025
  Output voltage less than 20Vac in Dynaset Construction Equipment is caused by excitation rectifiers failure. You should trace the failure and replace the rectifier (with Compound or Capacitor voltage regulator).
C
Carlos DicksonNov 6, 2025
Why is Dynaset Construction Equipment magnet malfunctioning and the readout displayed when magnet current is under 2A?
- A
  Angela HendricksNov 6, 2025
  If the Dynaset Construction Equipment magnet malfunctions and the readout is displayed when the magnet current is under 2A, there could be several reasons: * The HMAG PRO’s hoses are cross-connected. * The generator is unplugged from the magnet, or the magnet cable is damaged. * The magnet coil is damaged. * The CMG PRO magnet generator won’t produce 220 VDC. To solve this: * Check HMAG PRO’s connection to the hydraulic circuit and rectify. * Switch off the generator. Check the cable and the connection to the magnet. Change the cable if it is damaged. * Check the coil’s resistance and compare the result to the value indicated in the magnet’s manual. Check also coil’s inductance if possible. * Turn off the generator. Check whether there is a DC voltage between the control...

Summary

1. GENERAL

1.1. PRODUCT INFORMATION

Provides general information about the HMAG PRO hydraulic magnet and its capabilities.

1.2. PRODUCT IDENTIFICATION KEY

Explains how to interpret the identification key found on the product's type plate.

1.3. TYPE PLATE

Details the information found on the HMAG PRO's type plate, including product specifics.

1.4. HMAG PROS LINE-UP

Presents the different standard models available in the HMAG PRO series.

1.5. MAIN COMPONENTS OF THE HMAG PRO

Identifies and describes the primary components of the HMAG PRO hydraulic magnet.

1.6. IP(Ingress Protection) CLASSIFICATION

Explains the IP classification system and its application to the HMAG PRO.

1.7. ATTACHMENTS

Details the available attachments for the HMAG PRO, such as chains and lifting adapters.

1.8. OTHER OPTIONS

Describes additional options like the claw attachment and ED100% model.

7. MANUFACTURERS LIMITED WARRANTY

8. PRODUCT DISPOSAL

9. DECLARATION OF CONFORMITY

10. TECHNICAL SPECIFICATIONS

1. GENERAL

1.1. PRODUCT INFORMATION

Details how the HMAG PRO transforms hydraulic power into electricity for the magnet.

1.2. PRODUCT IDENTIFICATION KEY

Explains the product identification key structure and its meaning for HMAG PRO models.

1. GENERAL

1.3. TYPE PLATE

Describes the information presented on the HMAG PRO's type plate and its labeled components.

1.4. HMAG PROS LINE-UP

Lists the four standard HMAG PRO models, illustrated with a lineup image.

1. GENERAL

1.5. MAIN COMPONENTS OF THE HMAG PRO

Identifies the main external and internal components of the HMAG PRO with a diagram.

1.6. IP(Ingress Protection) CLASSIFICATION

Explains the IP classification system and the HMAG PRO's standard IP23 rating.

1. GENERAL

1.6. IP(Ingress Protection) CLASSIFICATION

Provides a detailed guide to IP (Ingress Protection) ratings for solids and water.

1. GENERAL

1.7. ATTACHMENTS

Details the standard chain attachment and optional lifting adapters (Q/G) for the HMAG PRO.

1. GENERAL

1.7. ATTACHMENTS

Shows quick attachment plate options for excavators and their specifications.

1.8. OTHER OPTIONS

Describes the claw attachment option and the ED100% model for continuous use.

2. SAFETY

2.1. SAFETY PRECAUTIONS

Outlines essential safety precautions for operation, installation, and maintenance of the HMAG PRO.

2. SAFETY

2.1. SAFETY PRECAUTIONS

Warns about magnetic field interference and the importance of keeping safe distances from electronics.

2. SAFETY

2.2. SAFETY EQUIPMENT

Specifies the required personal protective equipment for operating the HMAG PRO.

2.3. OPERATING SAFETY

Details safety warnings related to high temperatures and the risk of being crushed by loads.

2. SAFETY

2.3. OPERATING SAFETY

Provides critical safety instructions to avoid crushing hazards and improper operation.

2.4. MAINTENANCE SAFETY

Emphasizes the importance of system cleanliness and adherence to maintenance schedules.

2. SAFETY

2.5. WARNING LABELS

Lists and explains the various warning labels that must be applied to the DYNASET product.

3. OPERATING PRINCIPLES

3.1. OPERATING DESCRIPTION

Explains the operating principle of the HMAG PRO, from hydraulic flow to magnetic field generation.

3. OPERATING PRINCIPLES

3.2. MAGNETIZATION AND DEMAGNETIZATION

Describes the electronic control of magnetization and demagnetization, including adjustable delay.

4. INSTALLATION OF THE HMAG PRO

4.1. INSTALLATION TO A HYDRAULIC TOOL LINE

Details the recommended installation procedure using the base machine's existing hydraulic tool line.

4. INSTALLATION OF THE HMAG PRO

4.1. INSTALLATION TO A HYDRAULIC TOOL LINE

Illustrates an example of installing the HMAG PRO into an existing tool line with key components labeled.

4. INSTALLATION OF THE HMAG PRO

4.2. INSTALLATION TO A HYDRAULIC PRESSURE LINE

Explains installation requirements for machines without an existing tool line, using additional valves.

4. INSTALLATION OF THE HMAG PRO

4.3. HYDRAULIC FLUIDS

Refers to Chapter 6.2 for information regarding the proper use of hydraulic fluids.

4.4. ATTACHING THE HMAG TO THE BOOM

Describes how to attach the HMAG PRO to the base machine's boom using standard chains.

5. OPERATION

5.1. OPERATING THE HMAG PRO

Provides step-by-step instructions for operating the HMAG PRO, including magnetization and demagnetization.

5. OPERATION

5.2. OVERHEATING AND OVERLOAD SITUATION

Explains the O.HEA display indication and actions to take during overheating or overload situations.

5.3. AMBIENT TEMPERATURE

Discusses the impact of ambient temperature on performance and power takeoff limitations.

5. OPERATION

5.3. AMBIENT TEMPERATURE

Illustrates the power takeoff percentage versus ambient temperature graph.

6. MAINTENANCE

6.1. MAINTENANCE INTERVALS

Presents a daily maintenance schedule for checking the HMAG PRO's generator and chains.

6.2. HYDRAULIC FLUIDS

Recommends specific mineral hydraulic oils based on operating temperature and viscosity.

6. MAINTENANCE

6.3. ACCESSING THE GENERATOR

Provides instructions on how to access the HMAG PRO's generator by removing the cover or opening the service hatch.

6. MAINTENANCE

6.4. CLEANING HMAG PROS GENERATOR

Explains the importance of cleaning the generator and refers to other manuals for specific procedures.

6. MAINTENANCE

6.5. TROUBLESHOOTING

Lists common HMAG failures, their reasons, and corrective actions, requiring qualified personnel.

6. MAINTENANCE

6.5. TROUBLESHOOTING

Continues troubleshooting for magnet malfunctions, O.CUR, O.HEA, and SNUB indications.

6. MAINTENANCE

6.5. TROUBLESHOOTING

Covers troubleshooting for magnet malfunctions, low/high frequency issues, and CMG generator problems.

6. MAINTENANCE

6.5. TROUBLESHOOTING

Addresses output voltage instability, generator hydraulic fluid consumption, and abnormal noise.

7. MANUFACTURERS LIMITED WARRANTY

1. Warranty coverage

Defines the warranty coverage for DYNASET hydraulic accessories against defects.

2. Beginning of warranty period

Specifies how the warranty period commencement date is determined.

3. Warranty period

States the warranty duration as 24 months or 2000 hours of usage.

4. Warranty procedures

Outlines the steps a purchaser must follow to report and diagnose a potential warranty issue.

5. Warranty repairs

Details DYNASET's options for repair or replacement and charges for non-warranted issues.

6. Delivery terms of warranty repair

Specifies requirements for returning products for warranty repair, including necessary documentation.

7. MANUFACTURERS LIMITED WARRANTY

7. Warranty of repaired product

Clarifies that warranty for repaired products continues until the end of the original warranty period.

8. Exclusions from warranty

Lists conditions and circumstances that are not covered by the manufacturer's limited warranty.

8. PRODUCT DISPOSAL

9. DECLARATION OF CONFORMITY

10. TECHNICAL SPECIFICATIONS
