Dynaudio Esotec Series - Component Installation Dimensions; Tweeter;Midrange Dimensions

Technical specifications
Esotec / Esotar
2
Series 7
Installation dimensions
Tweeters/Midrange

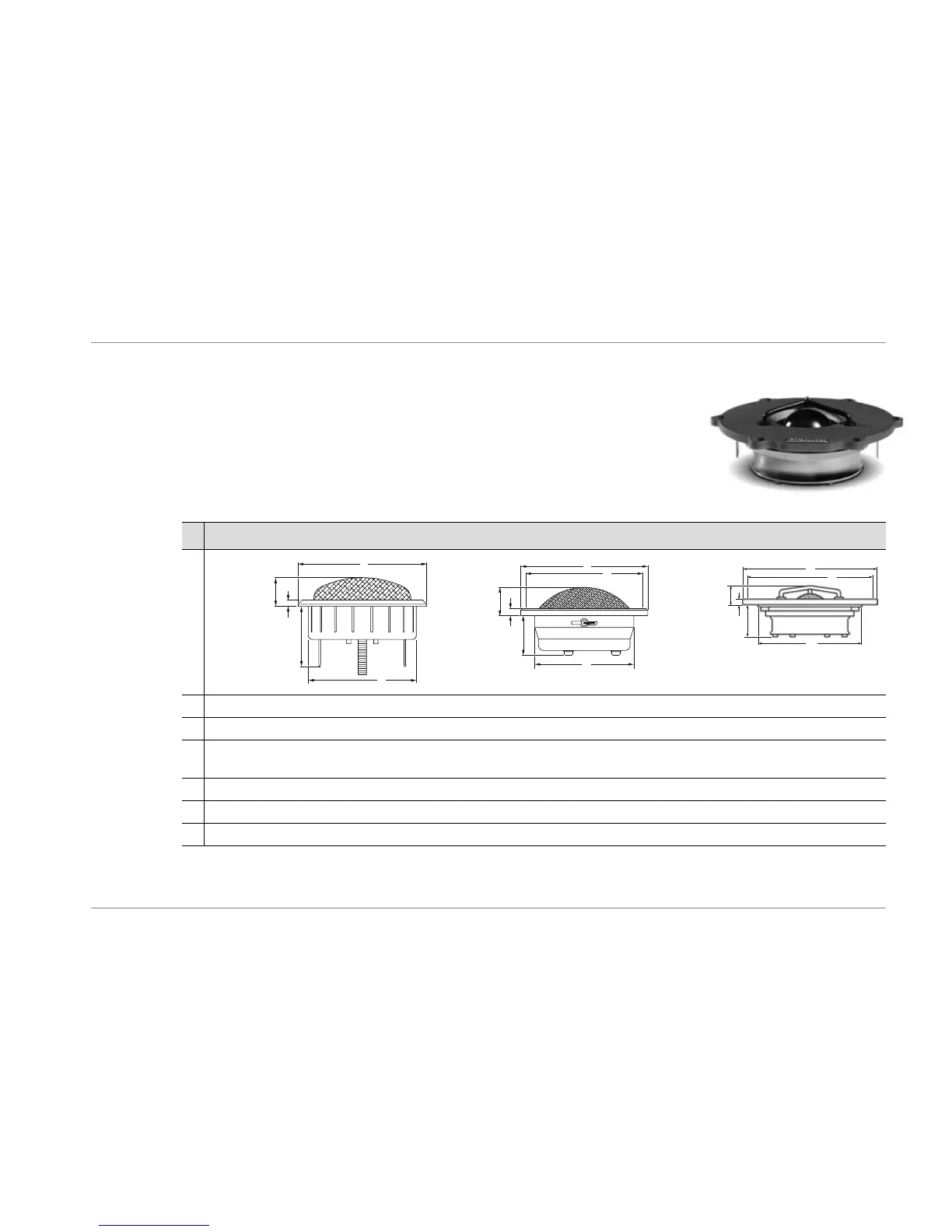

MD 102 MD 142 Esotar
2
110
1 max. Ø 62.2 mm max. Ø 121 mm Ø 111 mm
2 Mounting hole: Ø 52.1 – 55.5 mm 3 holes: Ø 4 mm on Ø 110.9 mm 6 holes: Ø 4.3 mm on Ø 101 mm
3 29.1 mm Mounting hole Ø 96 mm
(add cut-outs for terminals)
Mounting hole Ø 86 mm
4 3 mm max. 37.5 mm 27 mm
5 13.86 mm 7.5 mm max. 4.5 mm
6 – max. 30 mm max. 16 mm
2
1
3
5
4
3
1
2
4
5
6
3
4
5
6
1
2
