Mounting the loudspeakers
Esotec / Esotar
2
Series 11

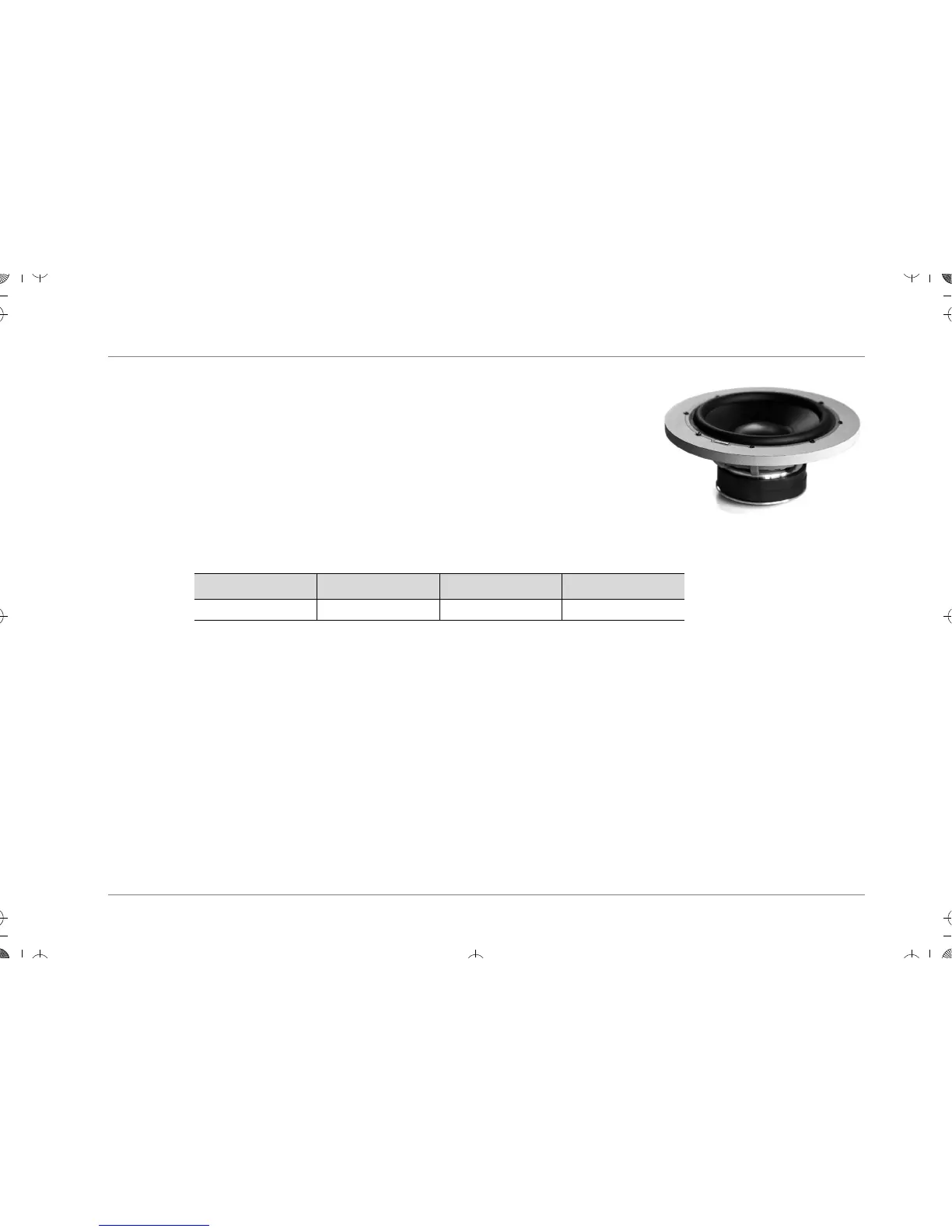

Using the installation trim rings (Esotar
2
only)
The Esotar
2
driver frame features a unique bolt pattern with the
mounting holes on the perimeter of the frame. To conveniently facilitate
flush mount installations, Dynaudio offers installation trim rings featuring
cut-outs that perfectly fit the outline of the Esotar
2
driver frames.
Note:
It is recommended to use the installation trim rings.
X Use the following cut out dimensions, when using the installation trim rings:
Esotar
2
110 Esotar
2
430 Esotar
2
650 Esotar
2
1200
130 mm 140 mm 210 mm 360 mm
