P75 mk4 Jumper Location and Settings
The P75 can be adjusted to suit any cartridge on the market.
Adjustment is simple. No soldering or extra parts needed.
The different settings are made by changing the position of jumpers on the

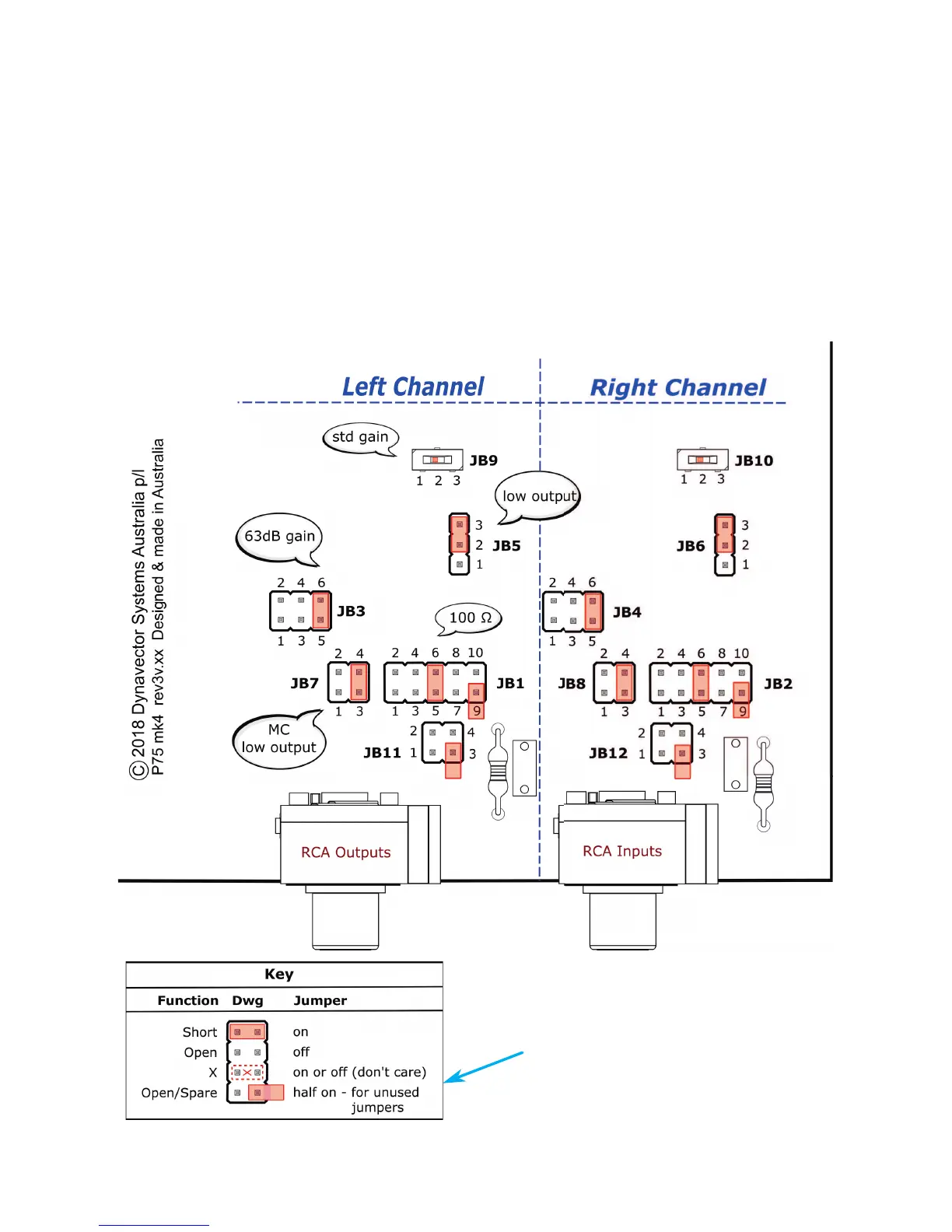

Jumper Blocks. The layout of the jumpers is shown below.
Standard / Factory Default Setting
The P75 is shipped from the factory as follows:
Low output moving coil 100 ohm 63dB gain. Shown below.
This setting is perfect for about 95% of low output moving coil cartridges.
Tip:
place unused/spare jumpers
half-on (just connected to one
pin). This prevents them
getting lost.
