3
2012-2017 Dyna Models

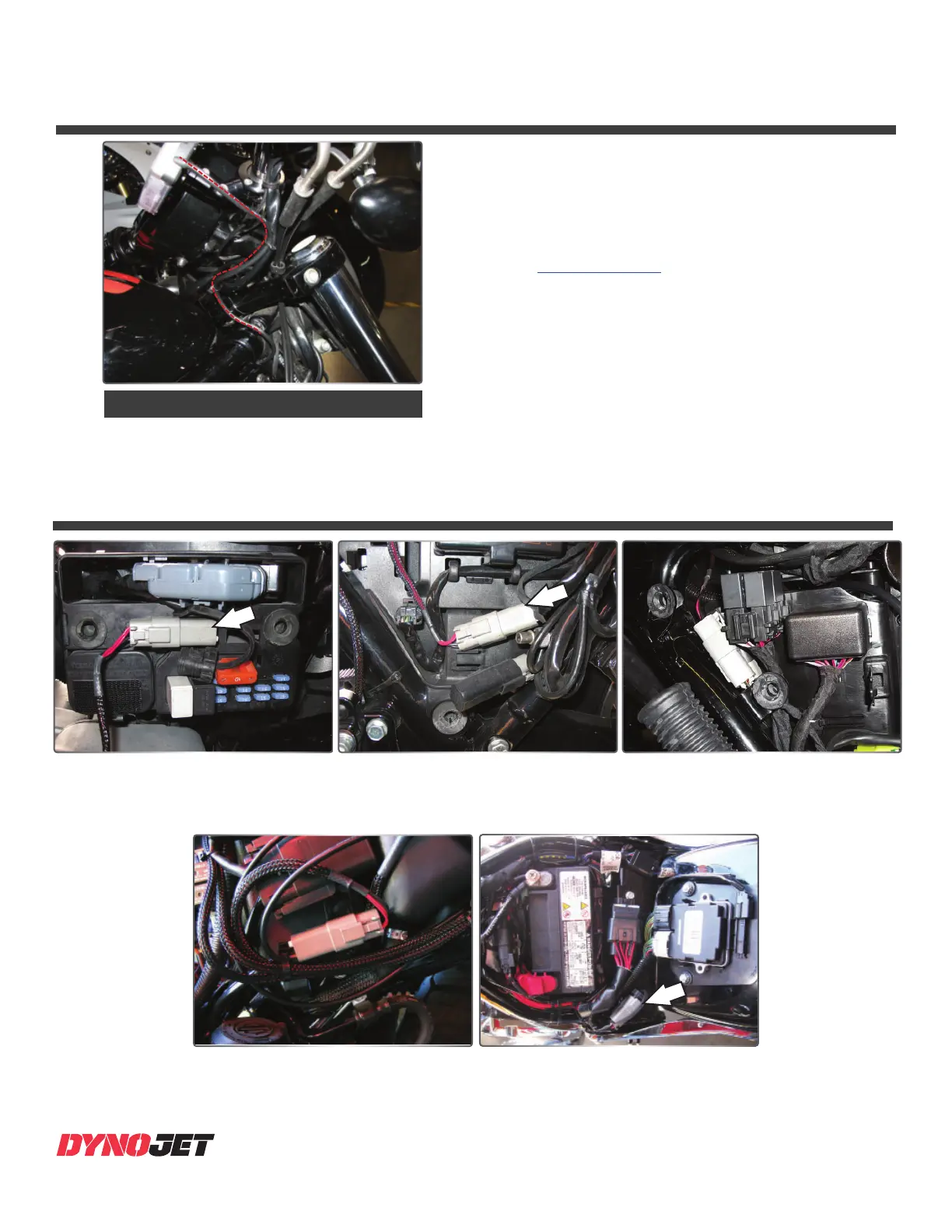

Diagnostic connector is located behind the Left hand
side cover. Connector is Light Grey in color with black
rubber plug installed.
2014-2021 Sportster Models
(including XR Models)
Diagnostic connector is located behind the Left hand
side cover. Connector is Light Grey in color with black
rubber plug installed.
2014-2020 Touring Models
Diagnostic connector is located behind the left hand
side cover. Connector is Light Grey in color with a black
rubber plug installed.
2011-2017 Softail Models
Diagnostic connector is located under the seat,
attached to the frame by the rear fender. Connector is
Light Grey in color, with black rubber plug installed.
DIAGNOSTIC PORT LOCATION
2015-2021 Street Models
Diagnostic connector is located behind right hand
side cover. Connector is Light Grey in color with black
rubber plug installed.
INSTALLING THE POWER VISION CONTINUED
2 Route the Power Vision cable away from any moving or
hot parts. Dynojet recommends using zip ties to secure
the cable to existing non-moving components.
3 Secure the Power Vision to the vehicle using the supplied
Velcro or mounting hardware. Make sure the Power Vision
will not interfere with the operation of the vehicle.
Visit
www.dynojet.com for an array of mounting solutions
for your Power Vision.
Note: The Power Vision does not need to be mounted
to the vehicle, however, the Power Vision provides
a window into your vehicle. Mount the Power Vision
to your handlebars and gain access to customizable
full-color gauge screens, along with data logging and
troubleshooting screens.
ROUTING THE CABLE
To Next Page
