Dyson AB 09 - Page 19

18
Section 3

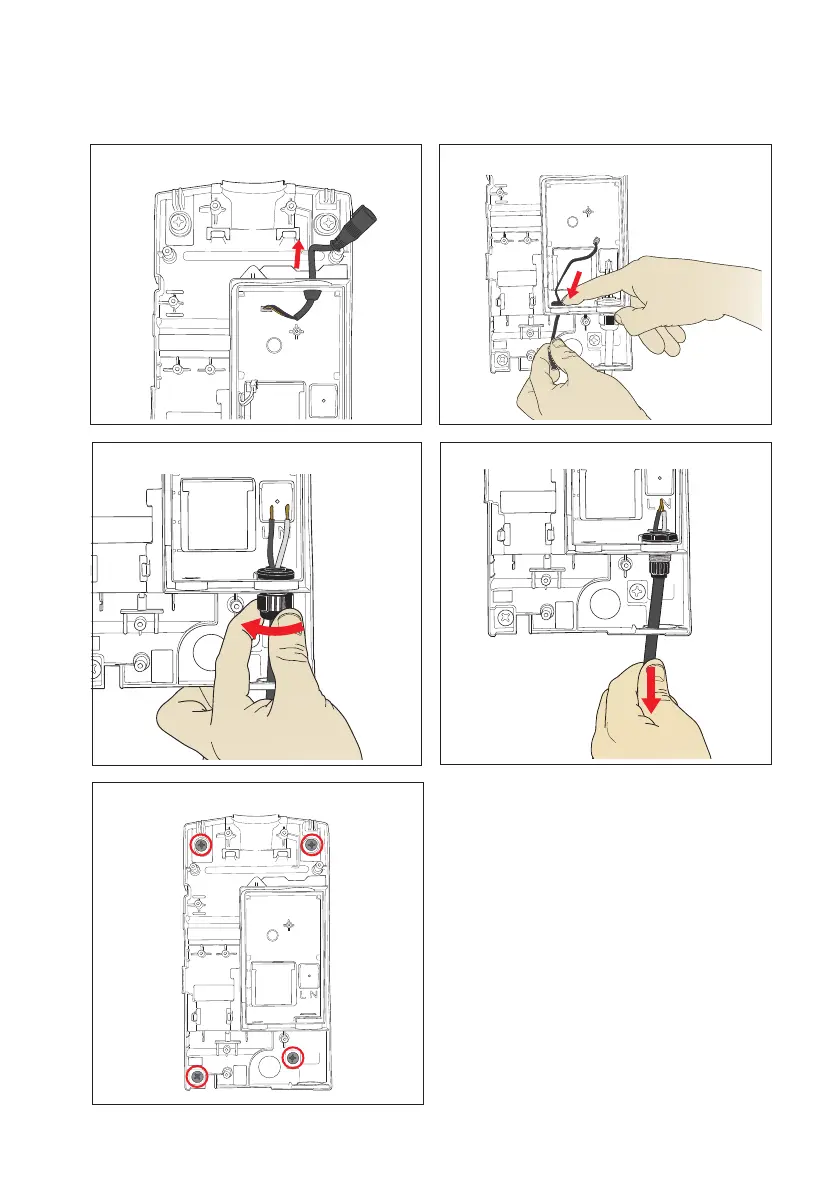

Backplate replacement removal
Before continuing the following parts need to be removed as previously shown:
the Solenoid assembly (pages 5-6), and the Air Hose and Power supply assemblies (pages 10-13).
01 02
04
03
05
