1
3
2

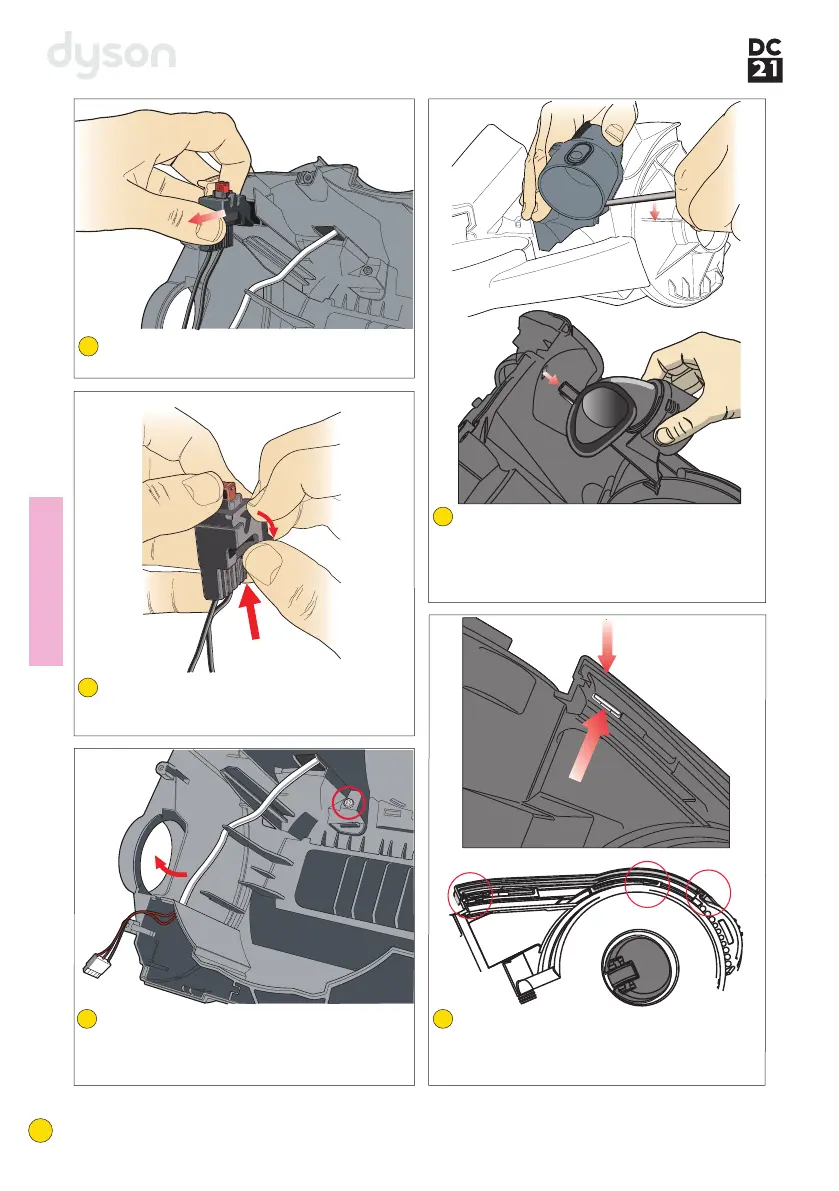

Release the switch holder from the LMC
assembly.
Fitting notes
19
Then prise a thin, flat bladed screwdriver under
the cyclone inlet and slide the inlet off the LMC
assembly.
To refit, slide onto the LMC assembly, refit the
screw and neatly dress the loom within the ribs.
Release the switch from the switch holder.
Unclip the wires to detach the switch from the
PCB assembly.
20
Should the cyclone inlet assembly need
replacing, undo the screw and release the
cyclone inlet loom from the retaining clips within
the inside of the LMC assembly.
21
To remove the bumper strip, unclip the retainers
and forcefully push the bumper strip away from
the LMC.
To replace, snap clips back in sequence shown.
23
22
9
service manual
