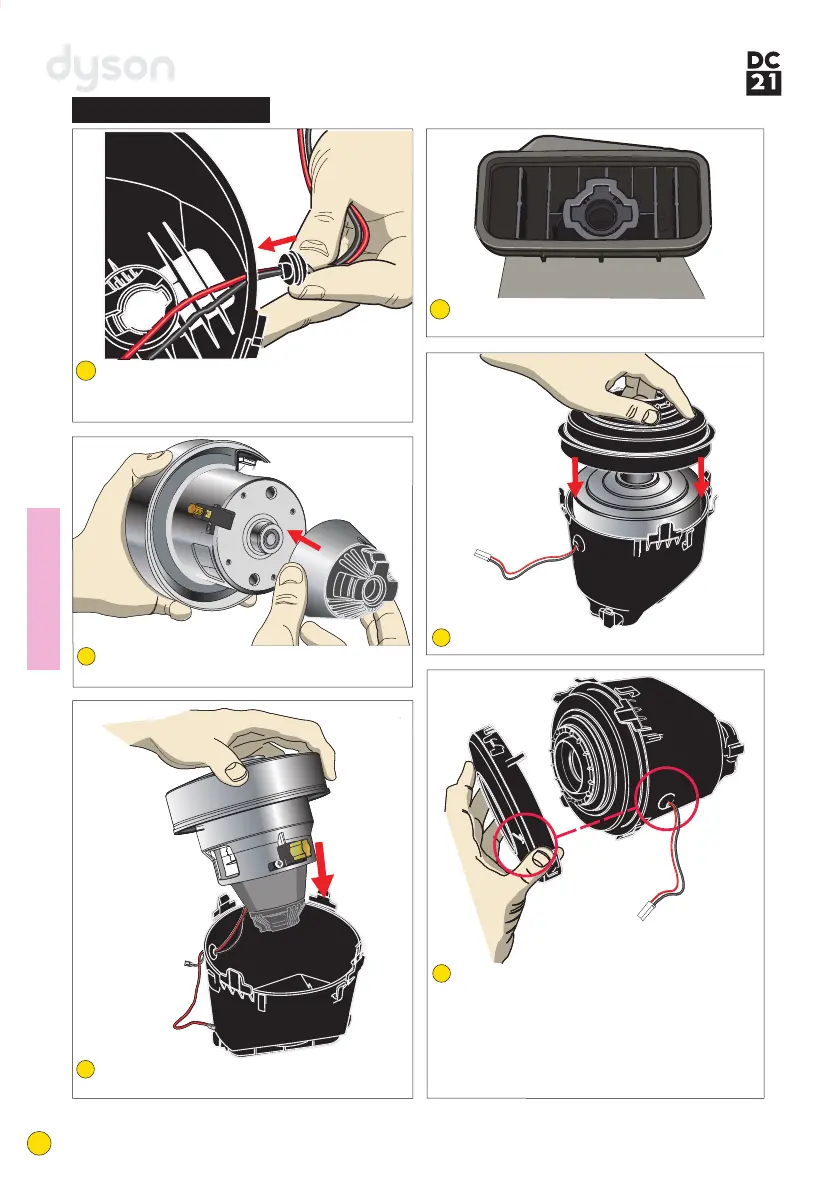

Fit the motor mount onto the motor plate.
Locate the motor plate onto the motor.
Refit the wiring harness into the motor bucket if
previously removed. Ensure the grommet is
adequately sealed.
Fit the fancase seal onto the base of the motor.
Align the motor bucket top with the motor
bucket so the arrow points towards the wiring
harness grommet. Firmly clip the motor
bucket top onto the four catches around the
side of the motor bucket. Ensure the detail
on the fancase seal protrudes fully through
the hole in the motor bucket top.
Attach the wiring harness to the motor. Lower
the motor into the motor bucket.
Fitting notes
26
27
30
31
28
Ensure the detail on the motor mount locates
into the end of the motor bucket.
29
Main body assemble
11
service manual
