Sub-assemblies - Power floor tool assembly - assemble

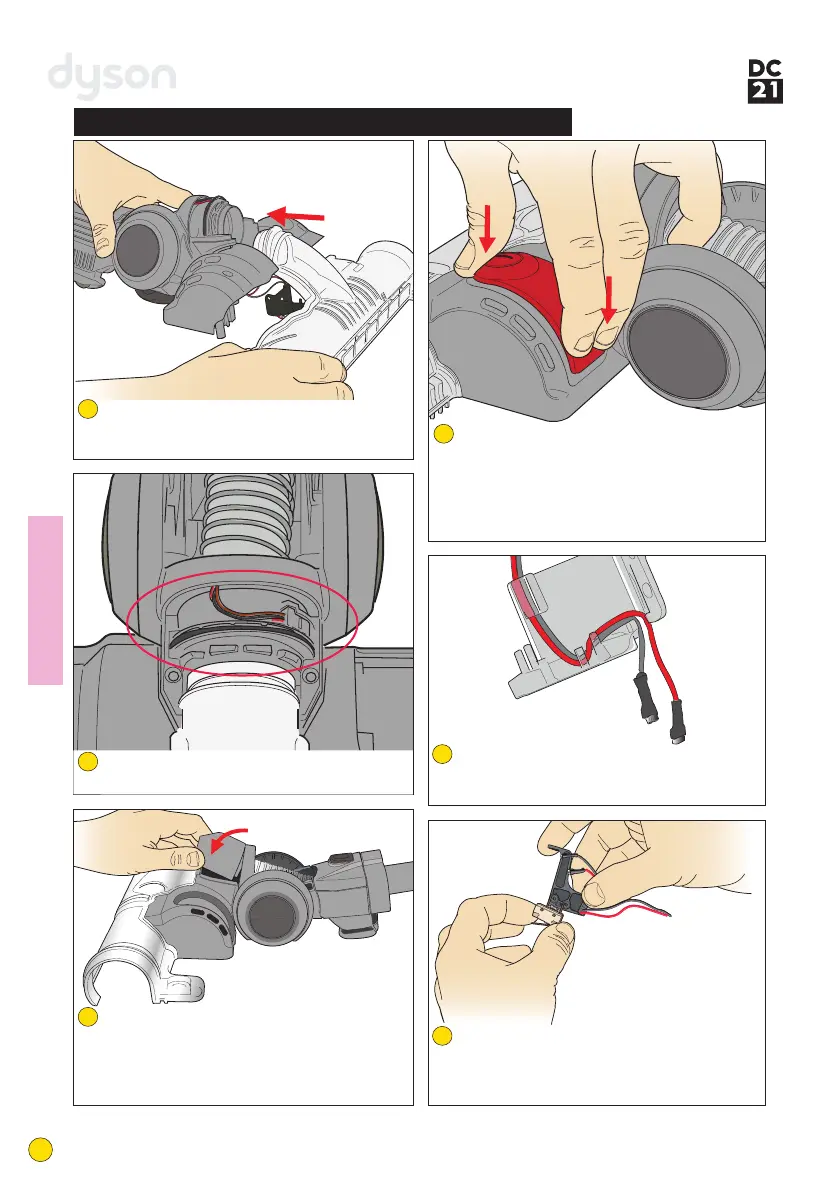

Slide the brush housing under the brushbar
motor cover and into the neck.
Refit the 2 screws.
88
Locate the rear of the gimble cover into the
neck. Clip the front of the cover onto the
brush housing.
Refit the 2 long screws in the underside of the
brush housing.
90
Locate the front of the brushbar actuator into
the top of the brushbar motor cover. Then
force the rear of the actuator into the cover.
Turn the floor tool over and locate the lip of
the actuator over the ledge in the underside
of the brushbar motor cover.
91
Ensure the brushbar microswitch loom is
correctly located within all retainers on the
rear of the switch holder.
92
Locate the brushbar microswitch onto the
2 pegs on the holder. Attach the brushbar
microswitch loom to the switch (red wire onto
the front terminal).
93
Fitting notes
23
Ensure all wires are correctly located within
the neck and can move freely.
89
