Dyson DC21 - Page 27

service manual

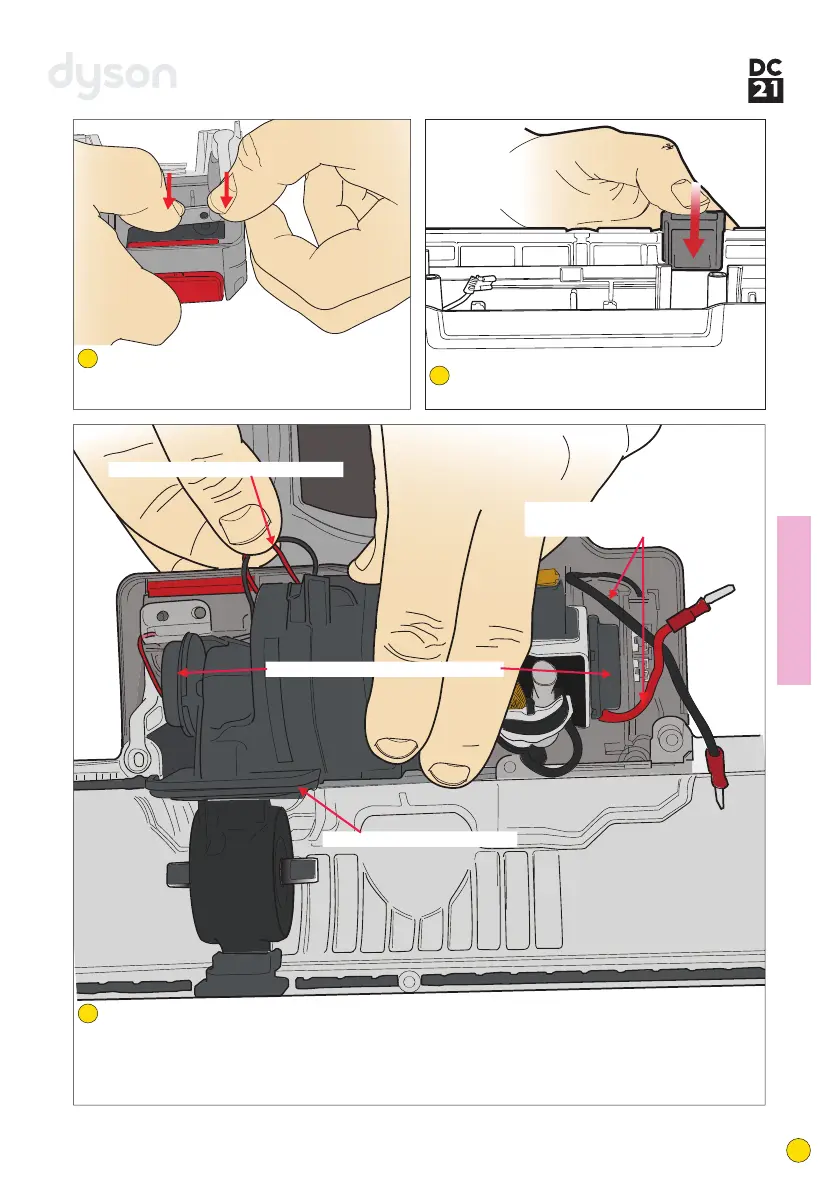

Firmly press the brushbar microswitch holder
over the retaining peg on the brushbar motor
cover.
94
Locate the brushbar motor front mount into
the front of the brush housing.
95
Ensure the brushbar motor wires are looped under the motor brushes. Important: hold the
brushbar microswitch loom out of the way. Lower the brushbar motor into the brushbar motor
cover. When correctly located the brushbar motor end mounts will sit onto the shelves. Ensure
the brushbar motor wires are not trapped under the motor and can move freely. Ensure the
transmission manifold is sealed behind the brush housing.
96
Fitting notes
24
Ensure the motor wires sit
under the motor brushes.
Brushbar microswitch loom
Brushbar motor end mounts
Transmission manifold
