service manual

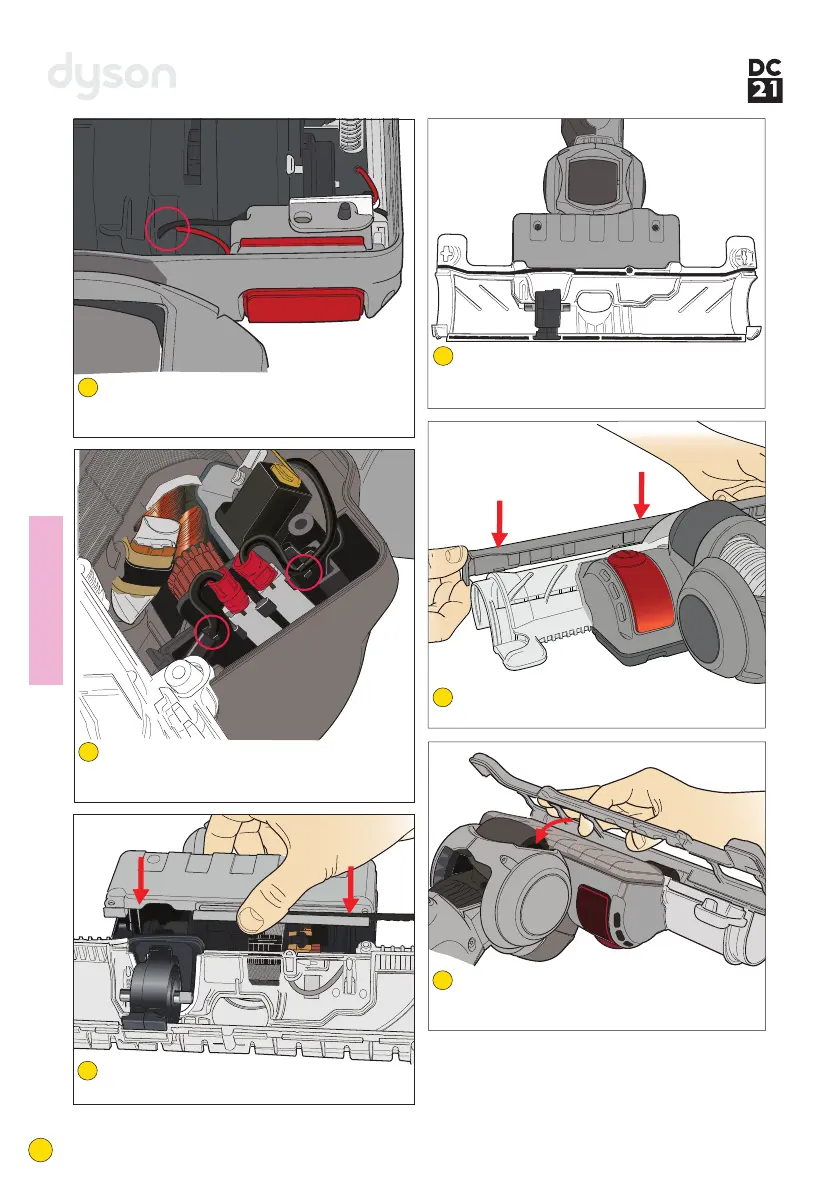

Carefully locate the brushbar microswitch
loom behind the rubber retainer on the rear
of the brushbar motor.
97
Fitting notes
25
Attach the motor wires to the connectors.
Ensure the wires are retained in the channels
on the connector housing.
98
Lower the brushbar motor cover lower onto
the brush housing. Refit the 3 screws.
99
Ensure if previously removed that all lengths
of ropeseal are fitted into the edges of the
brush housing.
Press the bumper strip firmly onto the front of
the brush housing if previously removed.
101
Lower the soleplate assembly onto the brush
housing.
Fit the 7 Philips screws.
102
100
