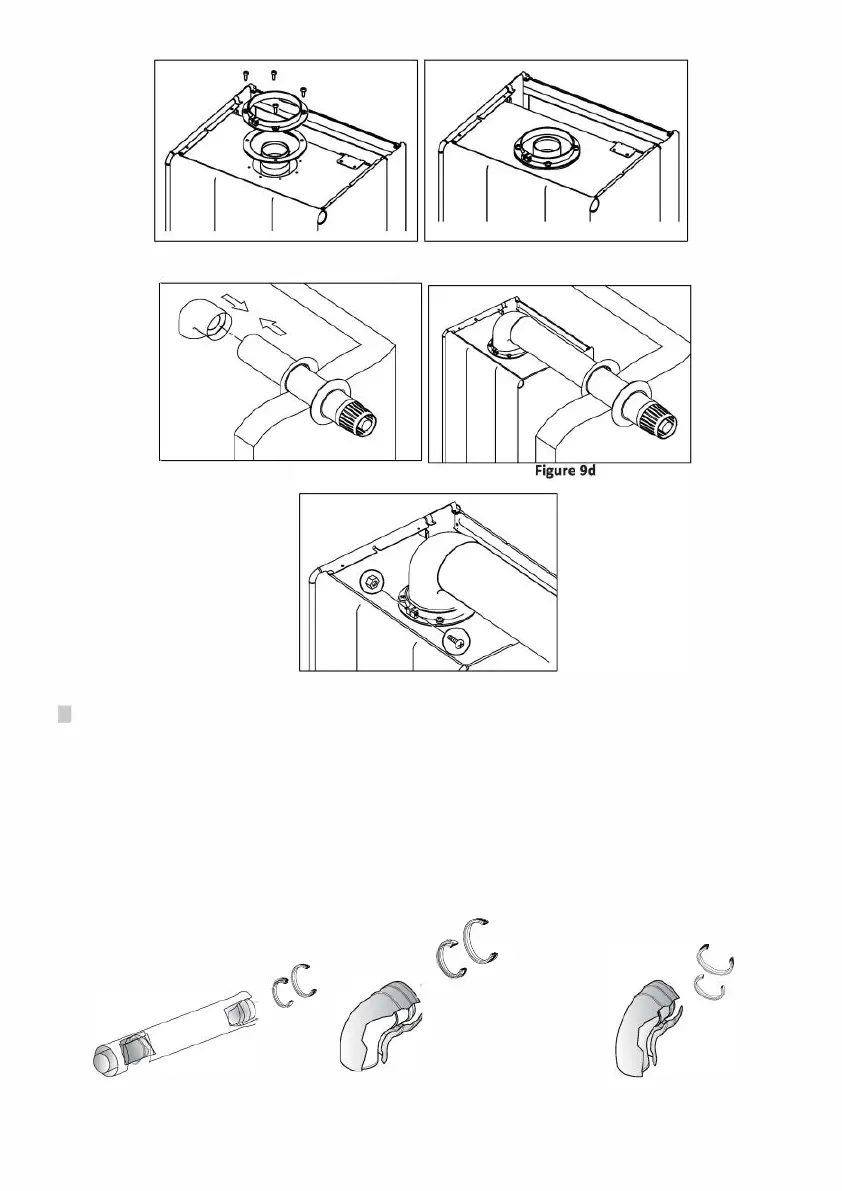

Figure 9a Figure 9b
Figure 9c
Figure 9e
Issues to be Considered in Flue Connection Extensions
In case the hermetic flue set -provided by the packaging of the product- is of insufficient length,
additional hermetic flue accessories should be ordered from an authorized E.C.A. vendor as per
requirement, and other hermetic flue accessories should not be used.
• (Ø60/lOOmm) Hermetic Flue Set Accessories (Figure-10)
a) Extension pipe (500 mm), EPDM gasket, clamp and clamp screws
Extension pipe (1000 mm), EPDM gasket, clamp and clamp screws (Figure - 10a)
b) Bend of 90
°
, EPDM gasket, clamp and clamp screws (Figure-10b}
a) b)
Figure 10
c)
14
To Next Page
