3. Once we have the Hub Motor and Brake Hub in place tighten up the axle nuts and the brake hub screw.

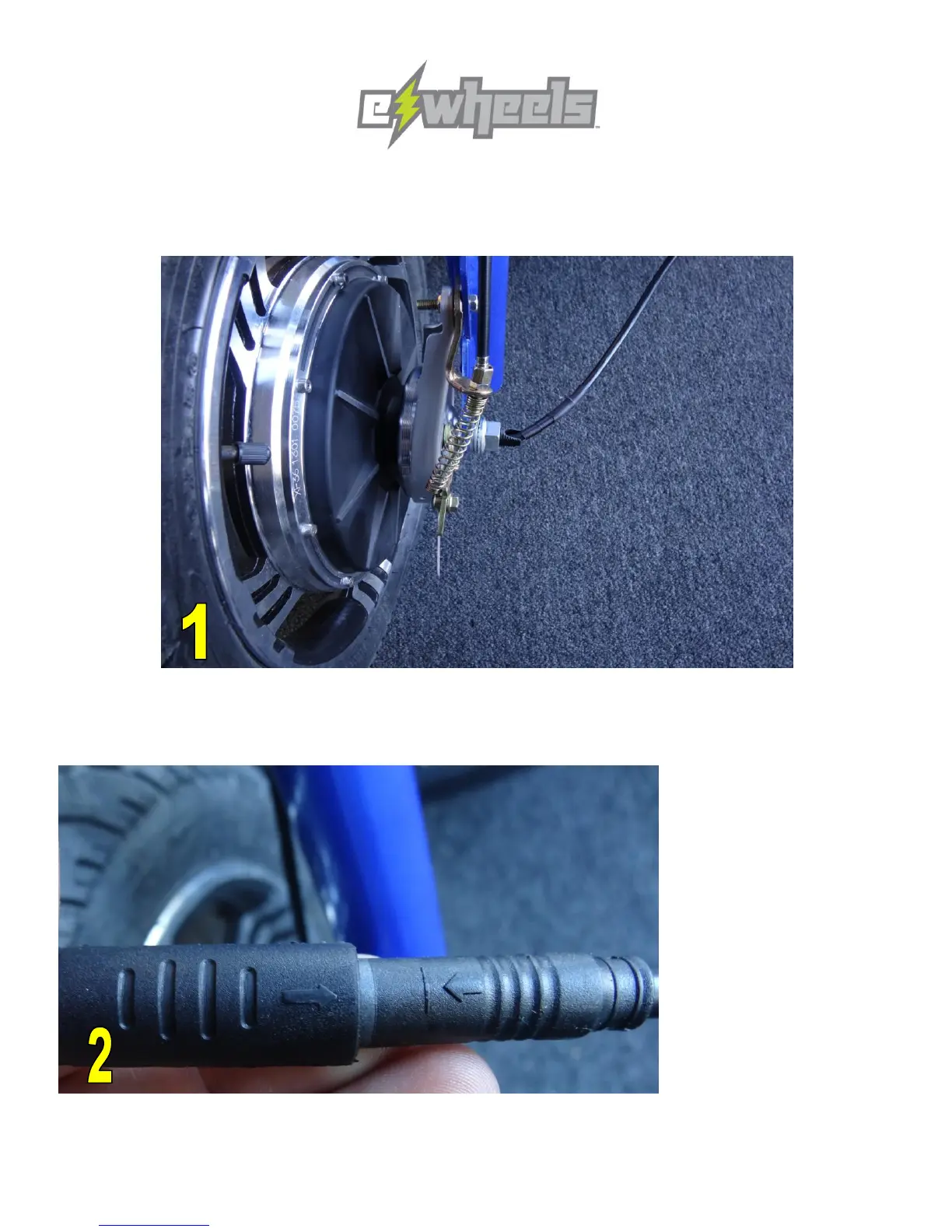

4. Insert the brake cable through the cable holder and the adjusting nut. Make sure you have the brake spring between
the cable holder and the adjusting nut.(Figure 1)
5.Plug the hub motor cable. Make sure the arrows are pointing at each other . (Figure 2)
