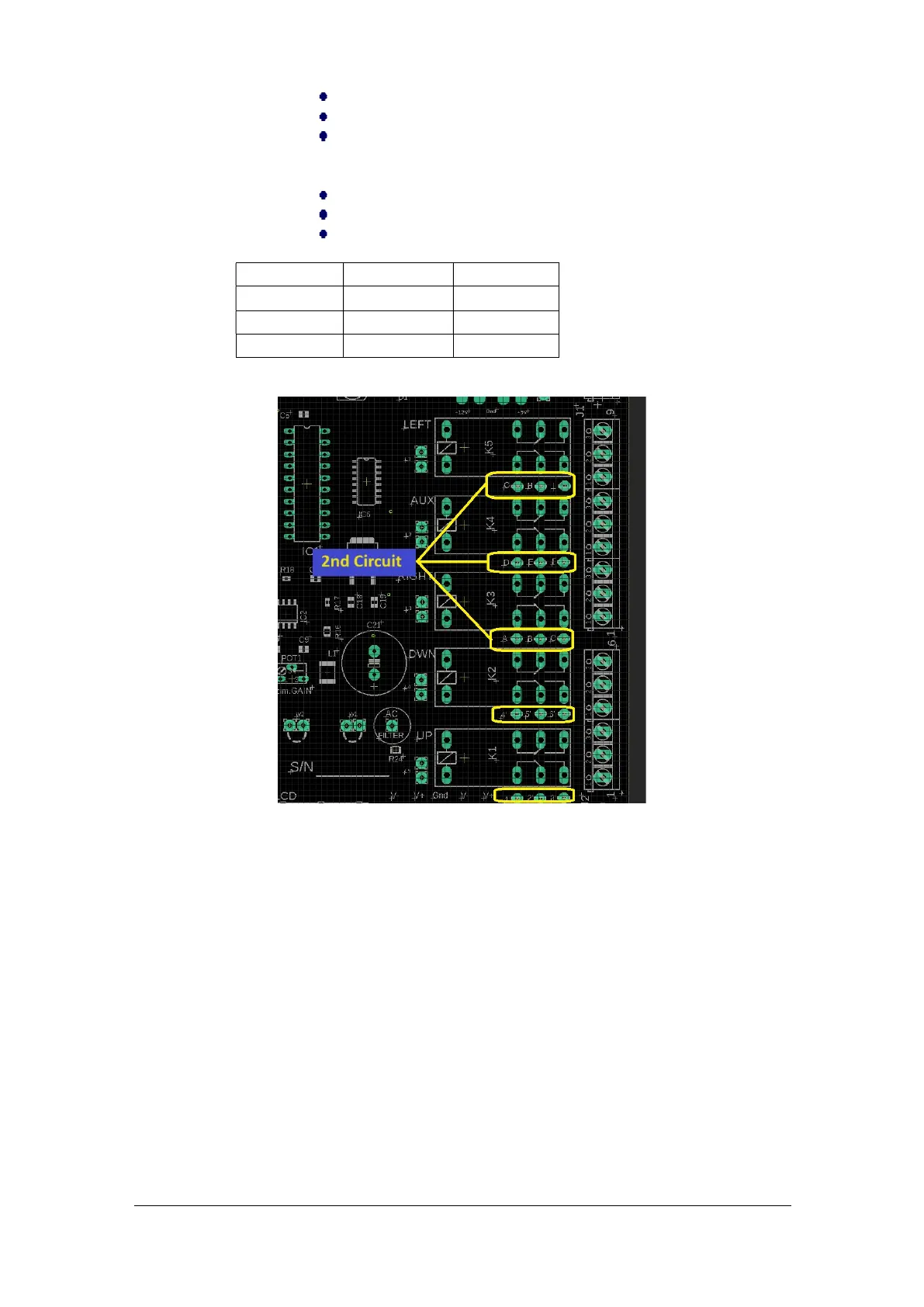

Switching is similar to J1. The de-energised positions are:
B to A
E to D
H to G
And the energised positions remain switched:
B to C
E to F
H to I
Relay OFF Relay ON
Right/CW B - A B - C
AUX E - D E - F
Left/CCW H - G H - I
