CONNECTING THE AC LINE VOLTAGE:
Electrically, the Power I is wired in series with the incoming AC supply
from the breaker box to the operator. The connector labeled "AC In" is
connected to the main AC supply. The "AC Out" is connected to the
operator.
Connect the incoming AC line to the AC In as follows:
L - AC Line In (Live): Black
N - AC neutral (Common): White
G - AC Ground (Earth): Green
Connect the outgoing AC line to the AC Out as follows:
L - AC Line Out: Black
N - AC neutral: White
G - AC Ground: Green
Refer to the installation manual provided with operator for the
proper connections to the operator
APPLYING THE POWER AND CONNECTING THE SYSTEM RELAY
With the power to the operator and breaker box turned off and all of the AC line
connections are complete, install the provided relay. After 5 to 10 seconds the
green inverter light will turn on. Then run the operator with the main breaker off
to test the power I. When testing is completed, turn on the breaker and the green
inverter light will go off, then charger green or yellow light will go on.
FOR HOLD OPEN APPLICATION
Connect the two orange terminals to the "exit open" on the operator. Using this
connection will immediatly open the gate upon power failure. Gate operator will
resume normal operation when power is resumed.

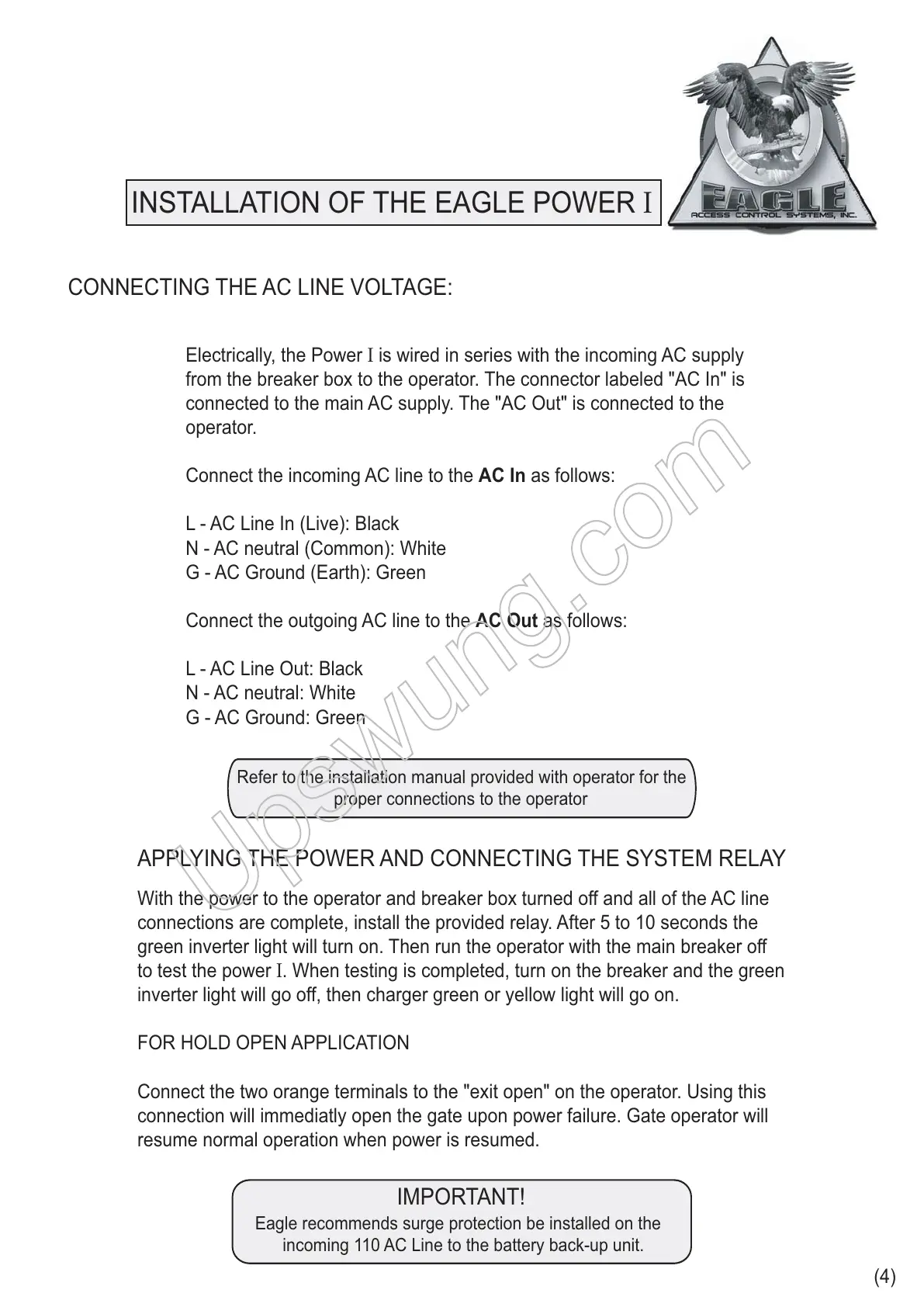

INSTALLATION OF THE EAGLE POWER I
Eagle recommends surge protection be installed on the
incoming 110 AC Line to the battery back-up unit.
IMPORTANT!
(4)
