Page 33
8
9
10
12
7
11
KEY Part # DEscriPtion QtY.
1 845100 RIGHT COVER ASSEMBLY 1
2 845101 AIR FILTER COVER KIT 1
3 845104 STARTER ASSEMBLY 1
4 845105 OIL PUMP 1
5 845106 CLUTCH ASSEMBLY KIT 1
6 845109 CLUTCH SHELL 1
7 845110 FUEL CAP KIT 1
8 845115 FUEL TUBE 1
9 845116 GAS FILTER COMPONENTS 1
10 845118 PRIMER BULB 1
11 845119 OIL CAP KIT 1
12 845117 AIR FILTER 1
13 845103 SCAVENGE TUBE 1
14 845102 PUMP TUBE 1
15 845107 CARBURETOR 1
16 838119 BUCKING SPIKE, CHAINSAW 1
17 838120 BUCKING SPIKE, CHAINSAW MOUNT SCREW 2
18 845108 COIL ASSY. (NOT SHOWN) 1
19 845111 TRIGGER ASSEMBLY KIT 1

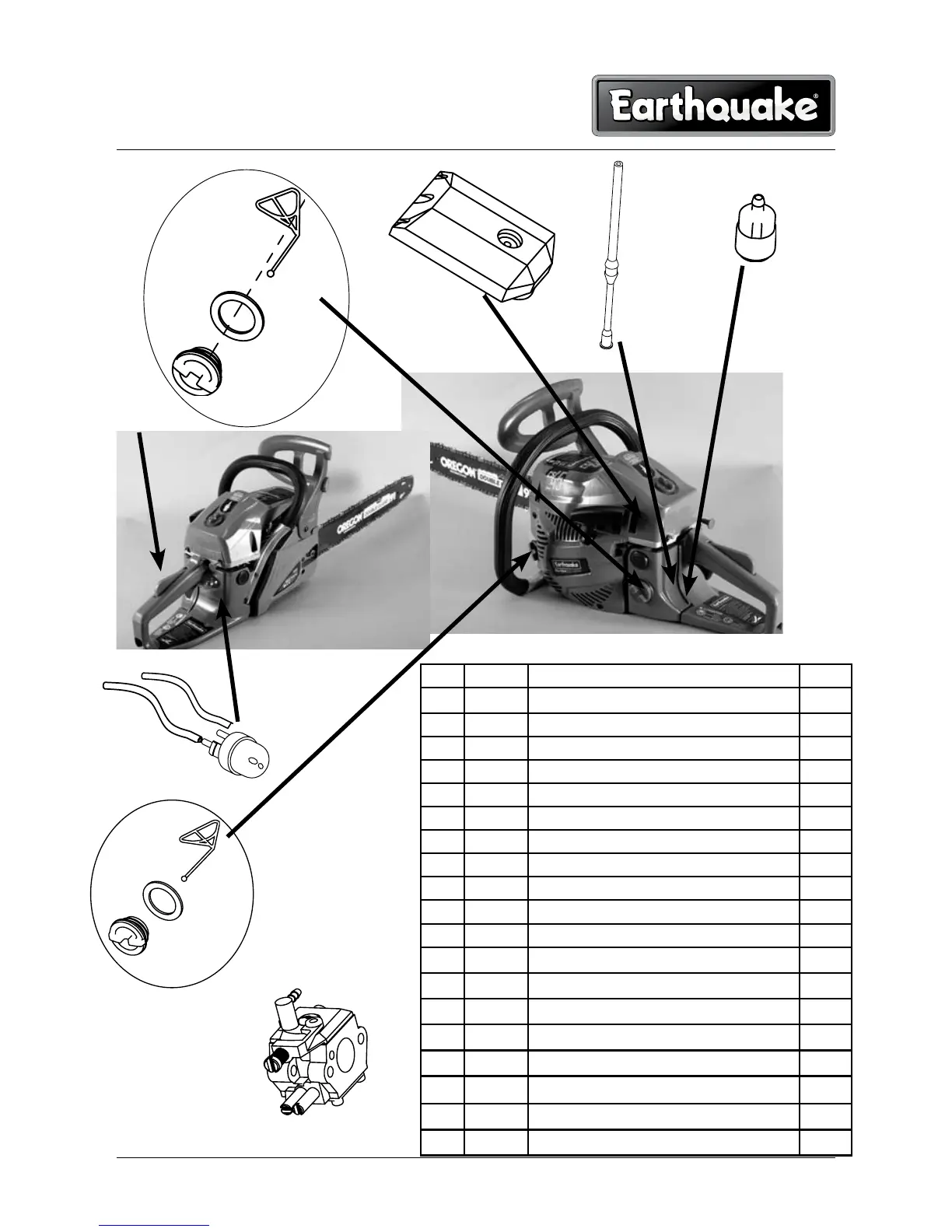

Parts Explosions
14
13
15
19
