VTEK MATCHED COMPONENT SPECIFICATIONS
VTEK-MC5
Sensitivity
Frequency Response
Nominal Impedance
Power Recommendations
Tweeter
Frequency Response:
1,500Hz - 22kHz
Crossover Networks
Model
45Hz - 23kHz (±3dB)
91dB @ 1W/1M
50 - 500 Watts
4 ohm
• 2-way network
• Military grade polypropylene film capacitors
• +3db/-3dB tweeter & woofer adjustment
• Poly switch tweeter protection
• 1” silk dome
• Soft rubber suspension
• Neodymium magnet
• Multiple mounting positions
VTEK-MC6
Woofer • 5” driver / electroplated carbon fiber cone body
• 25mm (over 1”) ASV voice coil
• Nomax/Romax high-performance spider
• Over hung butyl rubber surround
• 6.5
• 30mm (almost 1.25”) ASV voice coil
• Nomax/Romax high-performance spider
• Over hung butyl rubber surround
” driver / electroplated carbon fiber cone body
• 1” silk dome
• Soft rubber suspension
• Neodymium magnet
• Multiple mounting positions
• 2-way network
• Military grade polypropylene film capacitors
• +3db/-3dB tweeter & woofer adjustment
• Poly switch tweeter protection
50 - 600 Watts
40Hz - 23kHz (±3dB)
91dB @ 1W/1M
4 ohm
VTEK-MC5 Included Components and Parts
• Two VTEK-5w, 5.0-inch (127mm) carbon fiber woofers
• Two VTEK-25t, 1-inch (25mm) silk dome tweeters
• Two VTEK-500c crossover networks
• Two compact flush-mount fixtures
• Two compact angle-mount fixtures
• Two compact surface-mount fixtures
• Two metal woofer grilles with trays
• Two compact angle-mount fixtures
• Butyl adhesive putty for woofer grilles
• Twelve 8 x 1.25” (30mm) sheet metal screws
• Four 6 x .625” (16mm) sheet metal screws
• Two 1-inch (25mm) machine screws
• Two metal spring clips for tweeter fixtures
• Eight mounting clips for woofer mounting
• Two 6.4mm female crimpable connectors
• Two 4.7mm male crimpable connectors
• Two 2.8mm male crimpable connectors
• Twelve crimpable spade connectors
VTEK-MC6 Included Components and Parts
• Two VTEK-6w, 6.50-inch (160mm) carbon fiber woofers
• Two VTEK-25t, 1-inch (25mm) silk dome tweeters
• Two VTEK-650c crossover networks
• Two compact flush-mount fixtures
• Two compact angle-mount fixtures
• Two compact surface-mount fixtures
• Two metal woofer grilles with trays
• Two compact angle-mount fixtures
• Butyl adhesive putty for woofer grilles
• Twelve 8 x 1.25” (30mm) sheet metal screws
• Four 6 x .625” (16mm) sheet metal screws
• Two 1-inch (25mm) machine screws
• Two metal spring clips for tweeter fixtures
• Eight mounting clips for woofer mounting
• Two 6.4mm female crimpable connectors
• Two 4.7mm male crimpable connectors
• Two 2.8mm male crimpable connectors
• Twelve crimpable spade connectors
All specifications are subject to change without notice.
A
3kHZ
PASS
-3dB
WOOFER
- -
INPUT
-
TWEETER
+
B
C

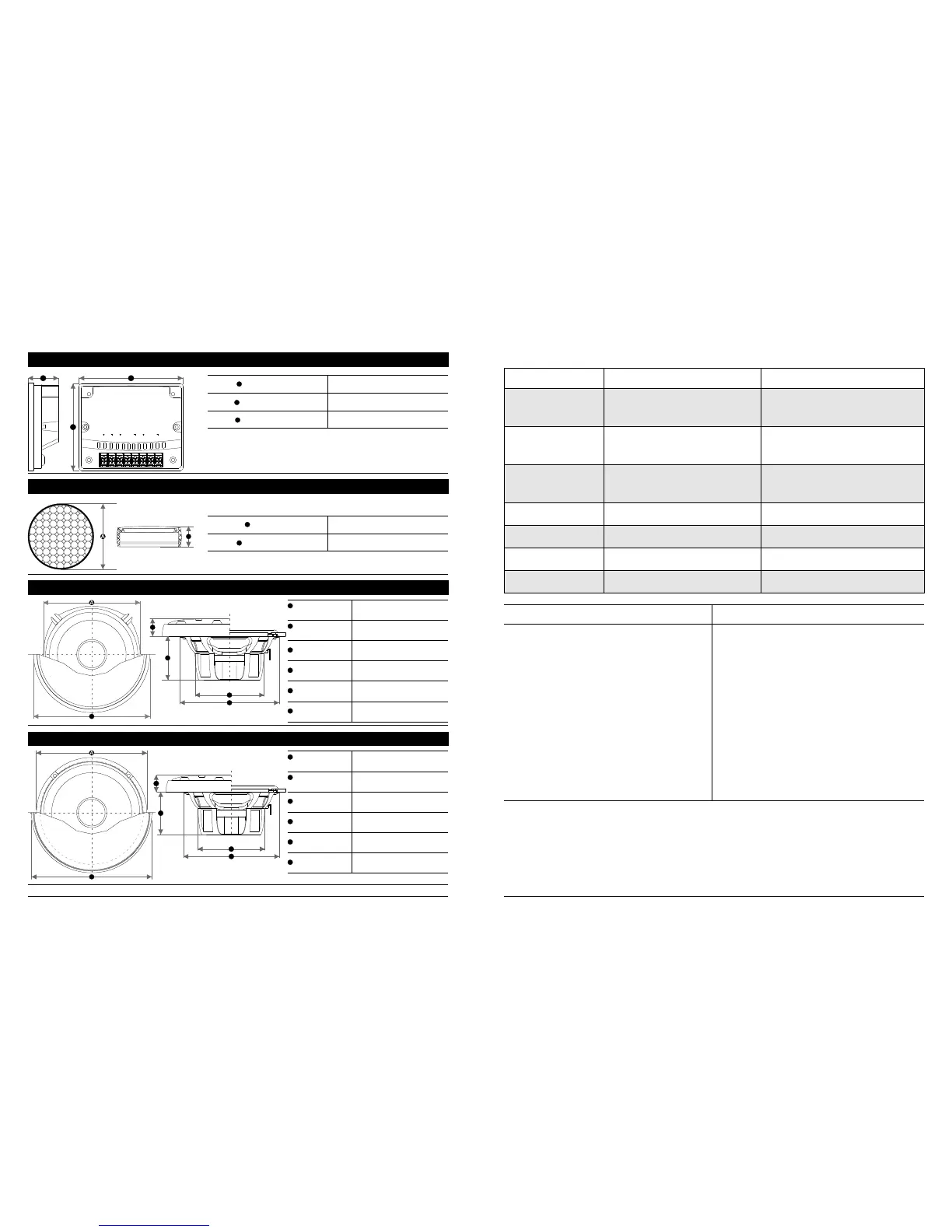

VTEK Component Crossover Dimensions (For 5” and 6” sets)
Height
A
Width
B
Depth
C
1.405", 35.7mm
5.07”, 129mm
4.21”, 107mm
VTEK-25C Dimensions
Diameter
A
Height
B
1.405", 35.7mm
.75”, 19.05mm
This diagram displays only the raw tweeter.
Mounting components vary in size.
C
D
E
F
VTEK-5C Dimensions
Frame outer
diameter
A
5.13”, 130.34mm
Grille tray outer
diameter
B
6.49”, 165mm
Mounting depth
D
1.92”, 49mm
Magnet width
E
4.21”, 107mm
Cut out hole
F
4.21”, 107mm
Grille protrusion
C
71”, 18.034mm
VTEK-6C Dimensions
Frame outer
diameter
A
6.49”, 165mm
Grille tray outer
diameter
B
7.07”, 179.5mm
Mounting depth
D
2.51”, 64mm
Magnet width
E
4.03”, 102.29mm
Cut out hole
F
5.66”, 144mm
Grille protrusion
C
0.94”, 24mm
C
E
D
F
+
4
EARTHQUAKE SOUND • VTEK COMPONENT SPECIFICATIONS 5
B
B
B
