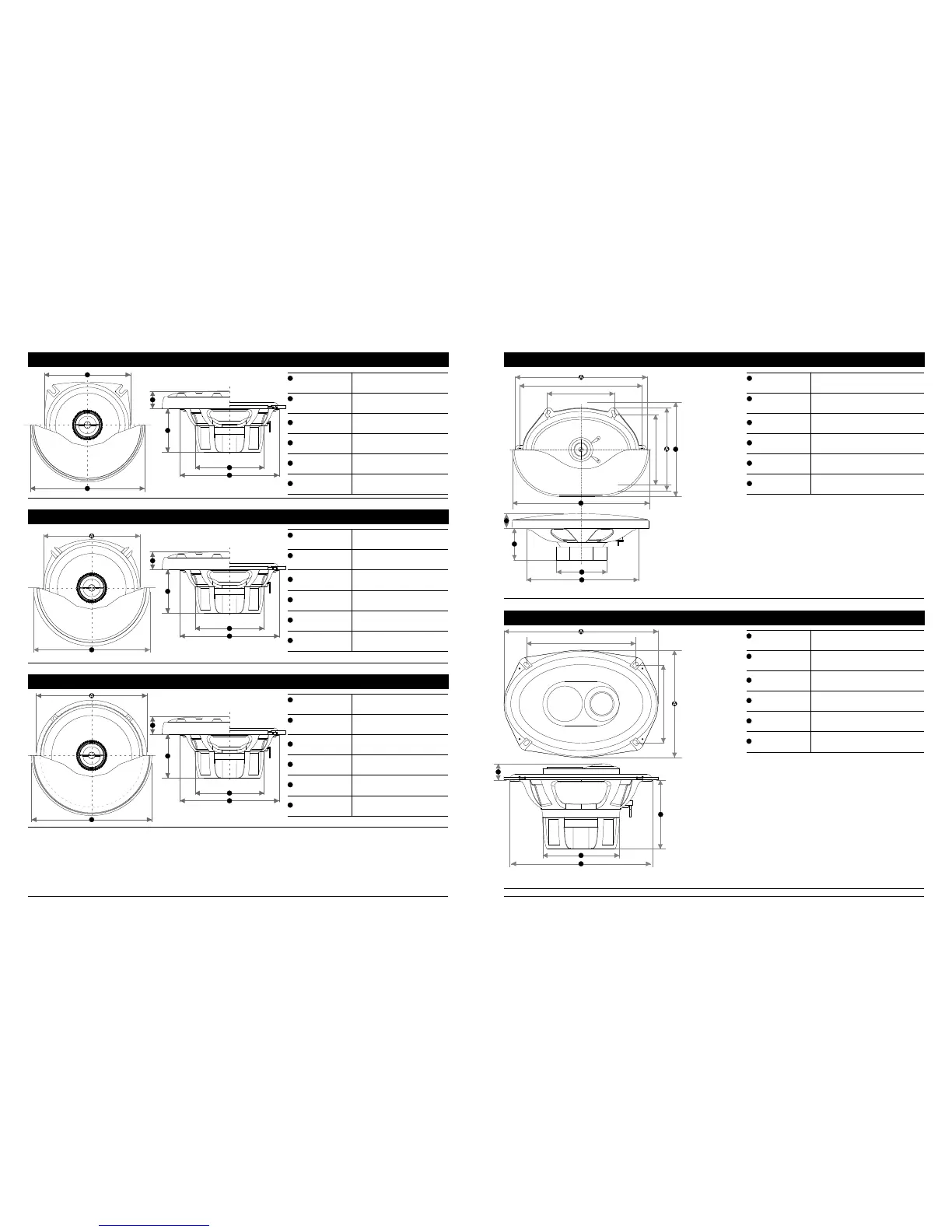

EARTHQUAKE SOUND • VTEK COAXIAL SPEAKER SPECIFICATIONS 7
C
D
E
F
VTEK-42 Dimensions
Frame outer
diameter
A
4.5” • 114.3mm
Grille tray outer
diameter
B
5.75” • 146.05mm
Mounting depth
D
1.81” • 46mm
Magnet width
E
2.96” • 75.34mm
Cut out hole
F
3.72” • 94.69mm
Grille protrusion
C
.079” • 20.066mm
VTEK-52 Dimensions
Frame outer
diameter
A
5.13” • 130.34mm
Grille tray outer
diameter
B
6.50” • 165mm
Mounting depth
D
2.023” • 51.4mm
Magnet width
E
3.22” • 81.93mm
Cut out hole
F
4.72 • 120mm
Grille protrusion
C
0.70” • 17.6mm
VTEK-62 Dimensions
Frame outer
diameter
A
6.49” 165mm •
Grille tray outer
diameter
B
7.07” 179.5mm •
Mounting depth
D
2.51” 64mm •
Magnet width
E
4.03” • 102.29mm
Cut out hole
F
5.74” 146mm •
Grille protrusion
C
0.94” 24mm •
VTEK-57 Dimensions
Frame outer
diameter
A
8.64” x 5.51 • 219 x 140mm
Grille tray outer
diameter
B
6.49” • 165mm
Mounting depth
D
2.32” • 59mm
Magnet width
E
3.46” • 88mm
Cut out hole
F
7.20 x 5.07” • 183 x 129mm
Grille protrusion
C
0.89” • 22.606mm
VTEK-693 Dimensions
Frame outer
diameter
A
9.27” x 6.45” • 235 x 164mm
Grille tray outer
diameter
B
Mounting depth
D
1.42” • 36.068mm
Magnet width
E
4.33 • 110mm”
Cut out hole
F
8.58” x 5.66” • 218.03 x 144mm
Grille protrusion
C
B
A
B
164mm•6.45”
166.64 • 6.56”
B
C
D
E
F
C
D
E
F
204.8mm•8.06”
112.5mm•4.42”
118mm•4.64”
C
C
D
D
E
F
B
B
119.28 • 4.69”
E
F
3.75” • 95.25mm
