EarthQuake VTEK Series User Manual

All specifications are subject to change without notice.
10

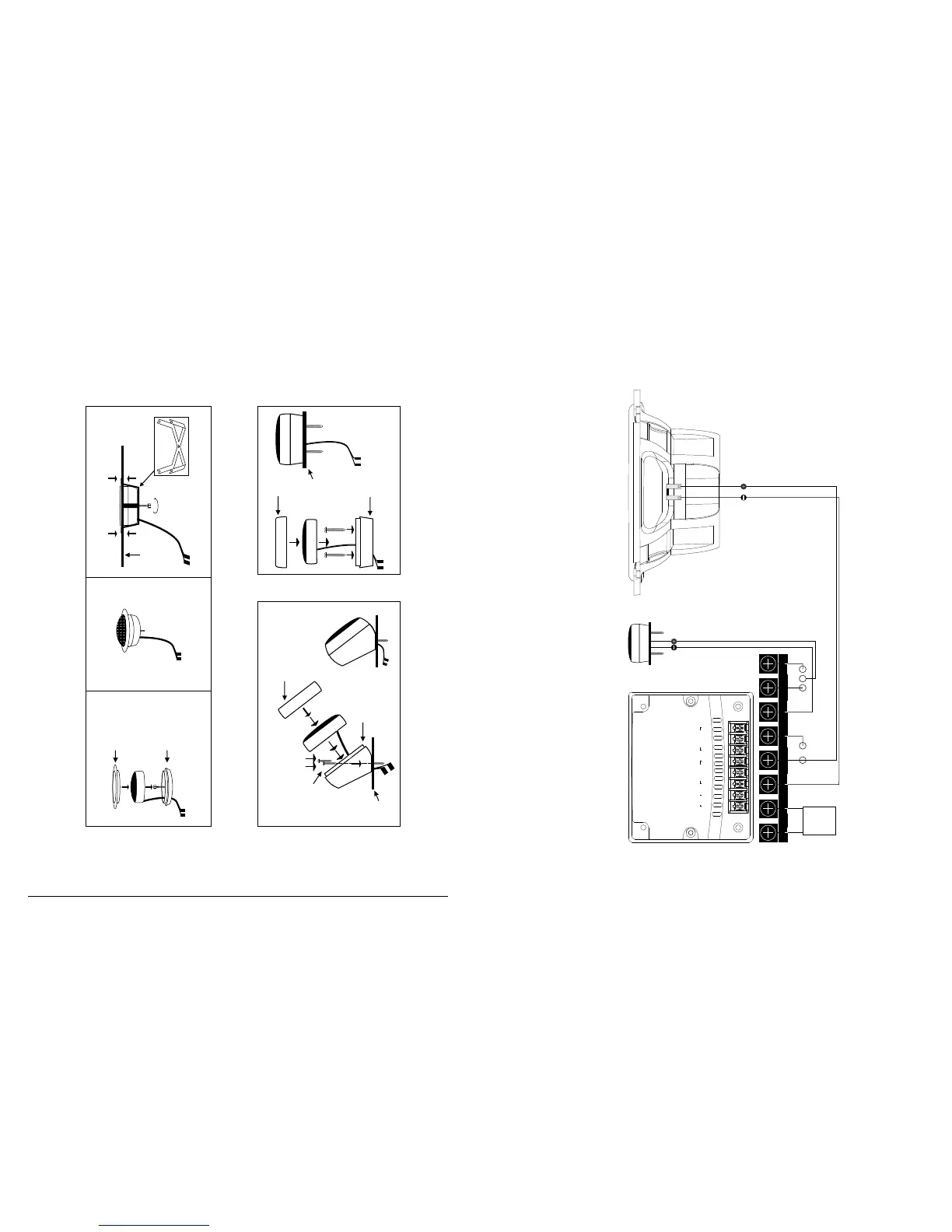

Flush Mount Assembly Flush Mount Installation
Top Ring
Panel
Mounting screws
Earthquake has provided two (2) mounting screws to be used in the Angle and Surface options
Angle Mount Assembly & Installation
Bottom Cup
Completed Flush Mount
Surface Mount Assembly & Installation
Top Ring
Panel
Bottom Cup
Push assembled tweeter through cut out hole
Cut diameter: VTEK-25S= 2” (50.8mm)
Twist on nut
until the
tweeter is
secured
Fasten the panel
clamp down from
behind the panel.
Panel
Panel Clamp
Top Ring Make sure that
the top ring and
bottom cup snap when pushed
together
Bottom Cup
Component Set Wiring Diagram
-
INPUT
+
LP FULL
0dB -3dB
IN
- +
+
3kHz PASS
+
WOOFER
- +
0dB
3dB+
TWEETER
-
0 dB+ -3dB
+
TWEETER
AMP
-
-
0 dB+ -3dB
+
WOOFER
WWW.EARTHQUAKESOUND.COM
