EarthWise 60217 - HANDLE ADJUSTMENT; INSTALLING SIDE DISCHARGE DEFLECTOR

I ASSEMBLY
A WARNING:
Never operate the mower without the proper safety de-
vices
in place and working. Never operate the mower with
damaged safety devices. Failure to heed this warning can
result
in serious personal injury.

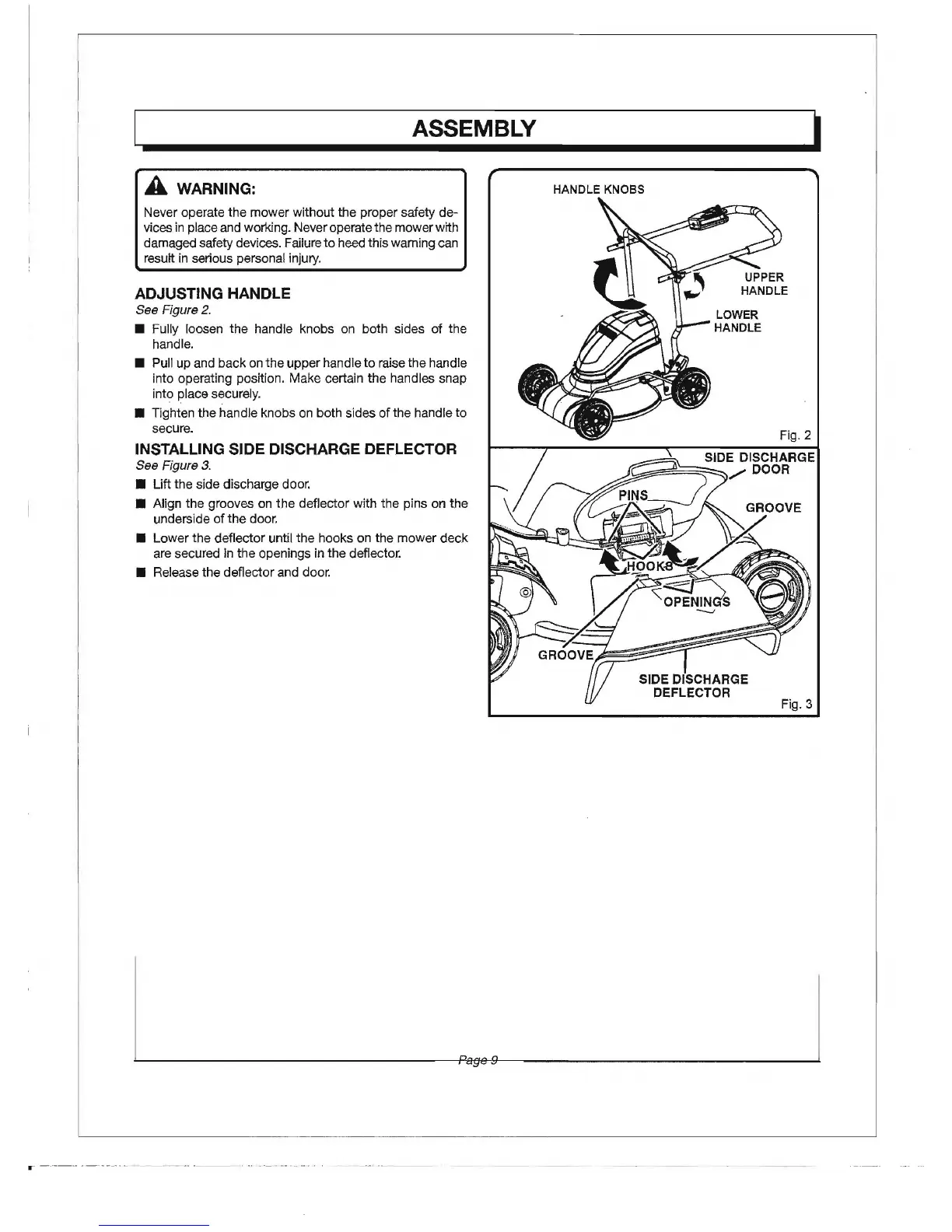

ADJUSTING HANDLE
See Figure 2.
• Fully loosen the handle knobs on both sides of the
handle.
• Pull up and back
on the upper handle to raise the handle
Into operating position. Make certain the handles snap
into place securely.
• Tighten the handle knobs
on both sides of the handle to
secure.
INSTALLING SIDE DISCHARGE DEFLECTOR
See Figure 3.
• Lift the side discharge door.
• Align the grooves
on the deflector with the pins on the
underside
of the door.
• Lower the deflector until the hooks on the mower deck
are secured
In the openings in the deflector.
• Release the deflector and door .
HANDLE KNOBS
.- ------- - -- - --- . -
