EarthWise 60418 - Exploded View

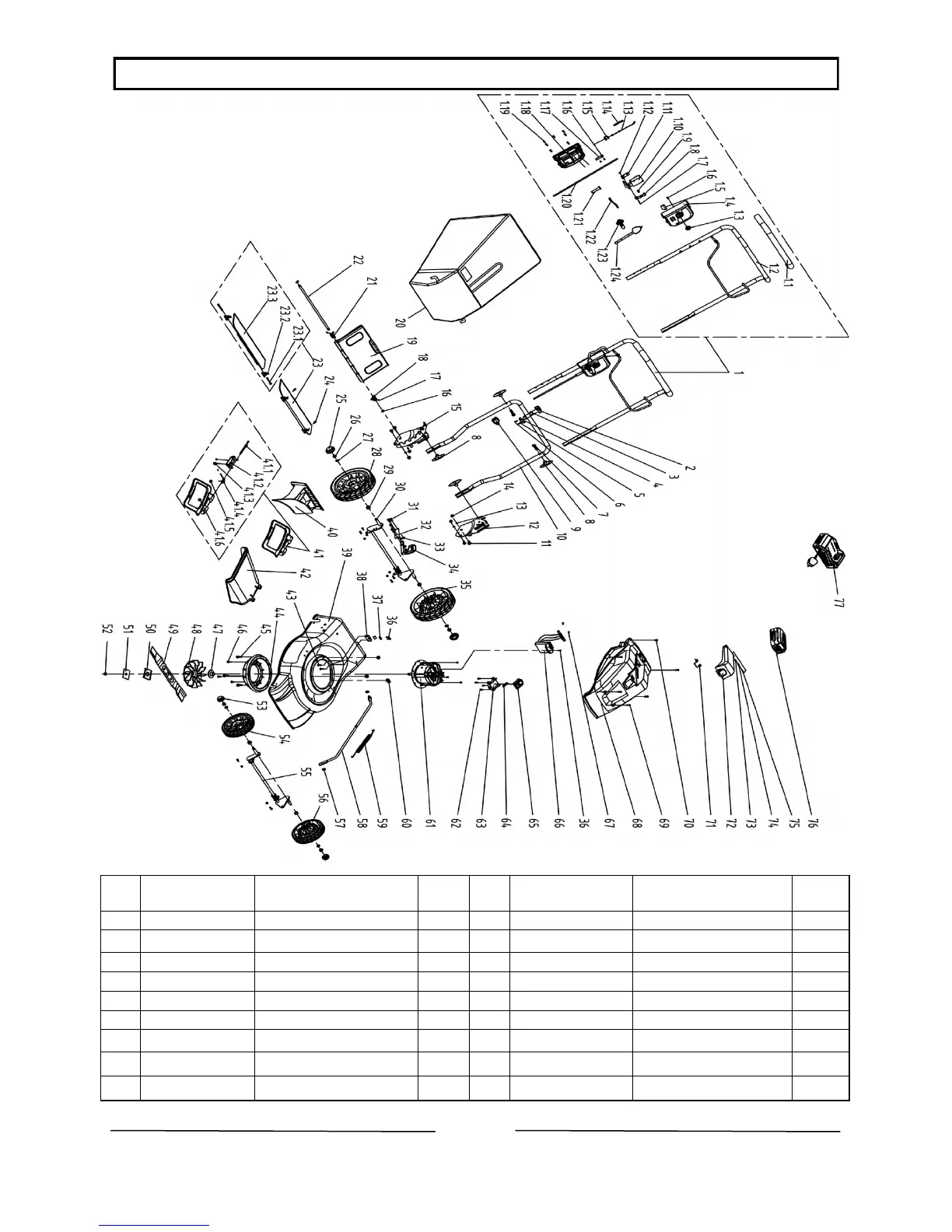

EXPLODED VIEW
Page 18
MODEL 60418
Key
no.
Part number Description Qty.
Key
no.
Part number Description Qty.
1 8440-518504 upper handle assy. 1 1.9 8342-516404 button spring 1
1.1 8331-510801 handle grip 1 1.10 8042-516201 switch 1
1.2 8440-518503 handle assy. 1 1.11 8187-510801 trigger fixed plate 1
1.3 8312-510801 switch button 1 1.12 8NH-03D01
hex lock nut 03D
1
1.4 8020-510808 upper switch box cover 1 1.13 8370-510801 switch cable 1
1.5 8181-516205 back plate 1 1.14 8342-510803 switch spring 1
1.6 8SNAB40-08B flange self-tapping screw 1 1.15 8343-510801 trigger button 1
1.7 8SJAD03-20D machine screw 1 1.16 8SJAB30-15Q
self-tapping screw 3*15Q
2
1.8 8186-510801 clamp 1 1.17 8186-510802
clamp
1
