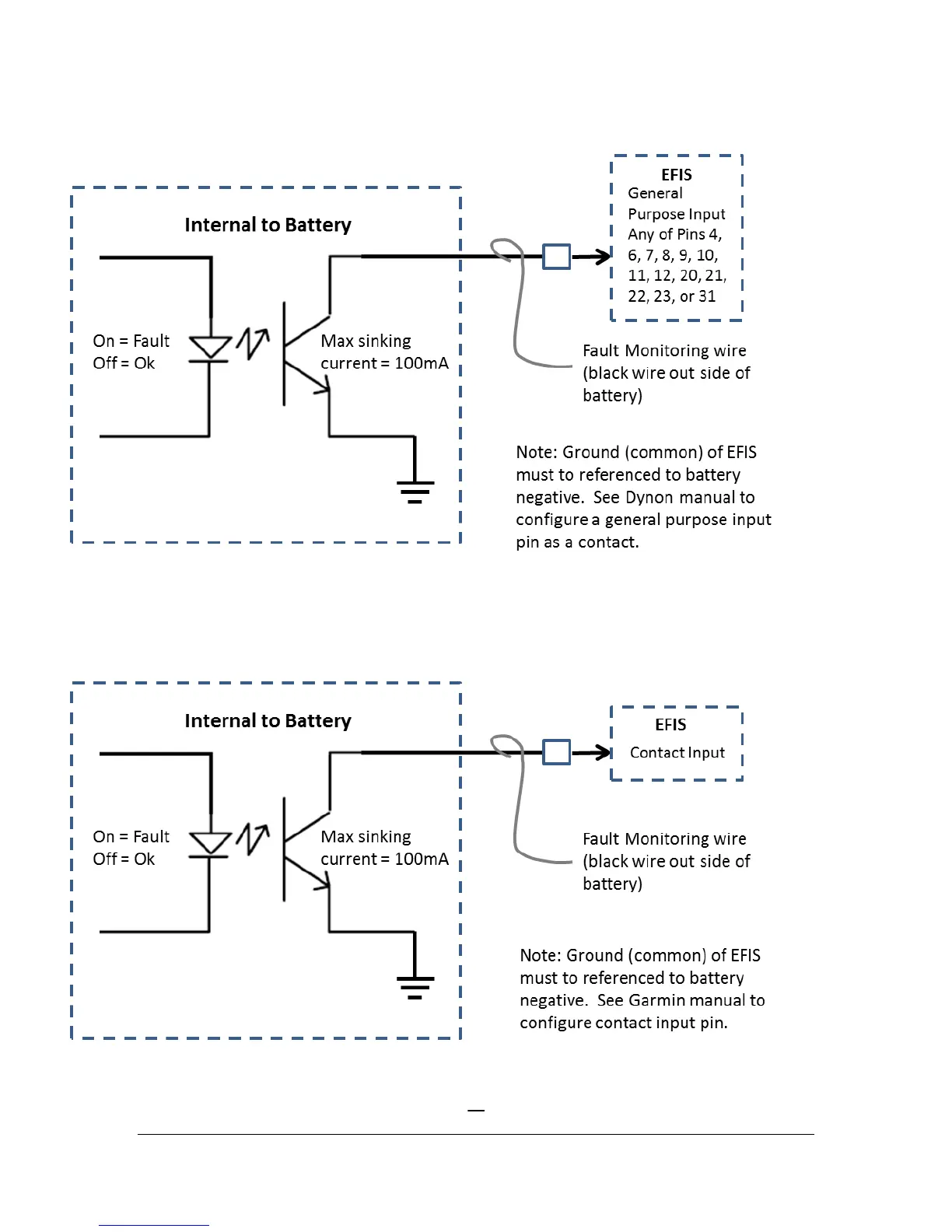

Fault Monitoring Connection to Dynon Avionics SkyView SV-EMS-220/221
Configure the input as “active low”, “alarm” type. Note; when Dynon power is off the LED inside battery
may be dimly lit (less than 120uA, too small to drain the battery).
Fault Monitoring Connection to Garmin EFIS
Configure the digital input (contact input) as “active low”, “user defined alert” type.
