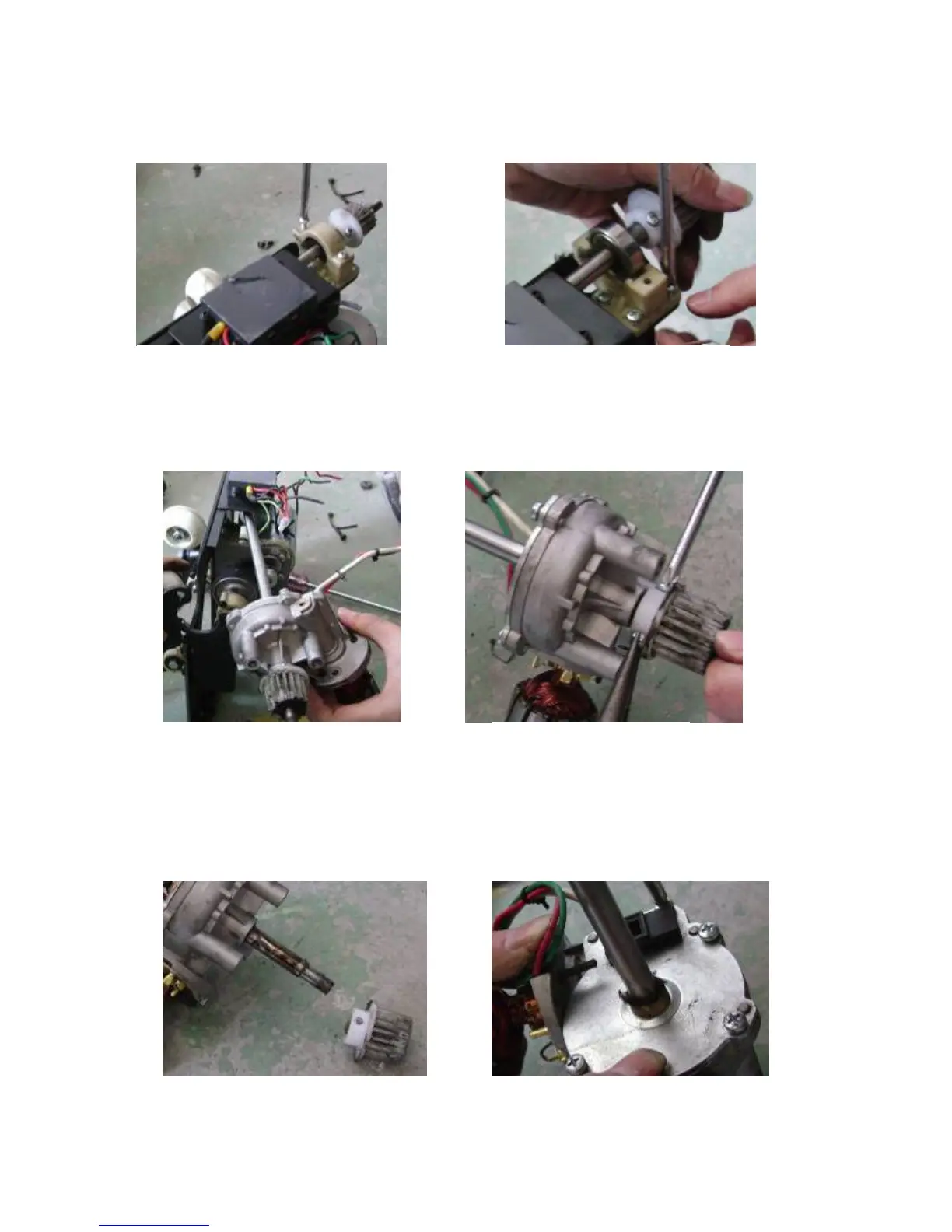

10. Slacken and remove the screws, 6 pieces, fixing the upper and lower cover of bearing block with a plus
screwdriver.
11. Then you can pull out the shaft subassembly though the sheet-metal as you can see in the following picture.
12. Slacken and remove the screw bolt and nut fixing the pinion on the shaft with a screwdriver and nipper pliers.
13. Pull the pinion out of the shaft. Slacken and remove the screws fixing the inner side cover on the outer side
cover with a screwdriver.
Screws fixing the upper cover Screws fixing the lower cover
Pull out the shaft subassembly Disassemble the pinion
Pull out the pinion Screws fixing the inner side cover
