ABS / INC Coordinates display switches
ES-3 ABS
INC
provides two sets of basic coordinate display, they are (absolute)
and (incremental) displays.
During machining operations, the operator can
The operator is then free to zero the axes or preset any dimensions into any
axis in INC coordinate for relative position machining. The work piece datum
( work piece zero position ) is still retained in ABS coordinate by the ES-3.
Operator can then toggle between ABS (absolute) and INC (incremental)
coordinates without losing the work piece datum ( work piece zero position ).
store the work piece datum ( zero
position ) in ABS coordinate, then switch to INC coordinate to continue machining
operations.
-5-

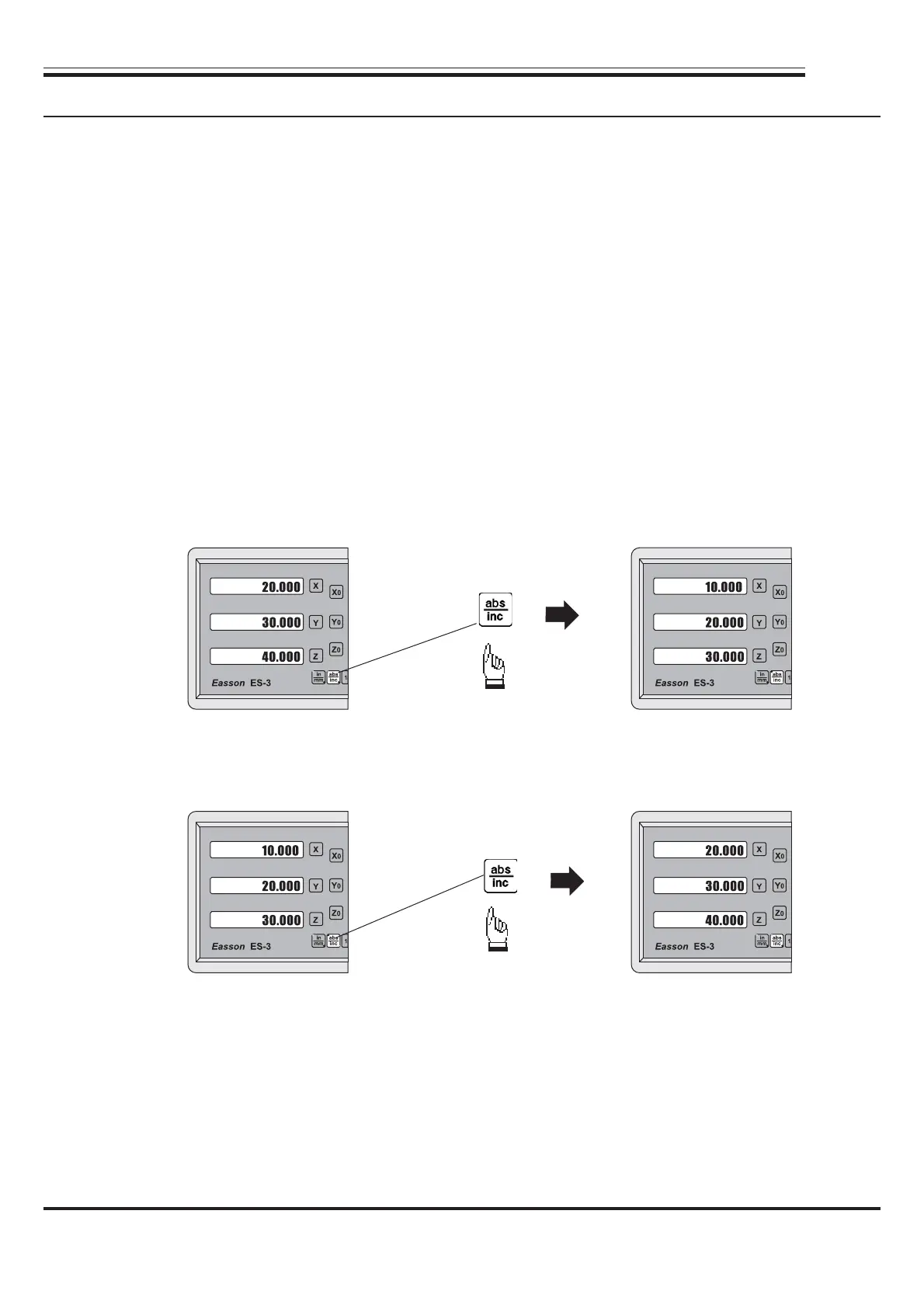

Purpose :
Example 1 :
Currently in display coordinate, to switch to display coordinateABS INC
Example 2 :
Currently in display coordinate, to switch to display coordinateINC ABS
