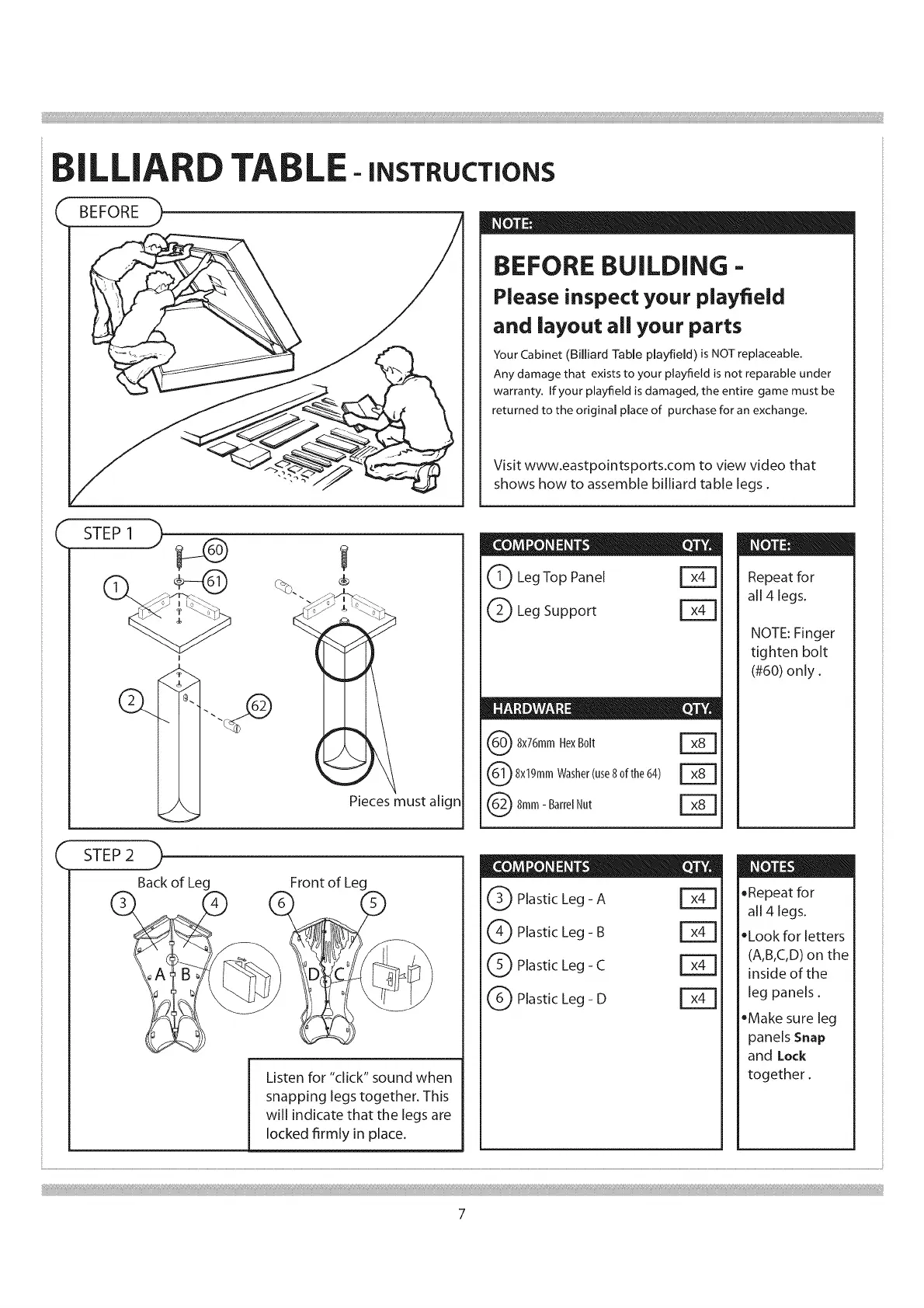

BILLIARD TABLE. instructions
( BEFORE )})
BEFORE BUILDING -
eis
Please inspect your playfield
and layout all your parts
Your Cabinet (Billiard Table playfield) is NOT replaceable.
Any damage that exists to your playfield is not reparable under
warranty. If your playfield is damaged, the entire game must be
returned to the original place of purchase for an exchange.
Visit www.eastpointsports.com to view video that
shows how to assemble billiard table legs .
Pieces must align
COMPONENTS QTY.
CG) Leg Top Panel
@) Leg Support
HARDWARE ola e
x76mm Hex Bolt
61) ax19mm Washer (use 8 ofthe 64)
8mm - Barrel Nut
NOTE:
Repeat for
all 4 legs.
NOTE: Finger
tighten bolt
(#60) only.
( STEP2 }
Back of Leg Front of Leg
Listen for “click” sound when
snapping legs together. This
will indicate that the legs are
locked firmly in place.
eee) aS
G) Plastic Leg-A 4
(4) Plastic Leg -B 4
G) Plastic Leg -C 4
(6) Plastic Leg - D 4
SEE
EE
Nees
«Repeat for
all 4 legs.
Look for letters
(A,B,C,D) on the
inside of the
leg panels.
@Make sure leg
panels Snap
and Lock
together.
