EMI board is connected between the output of inverter and output terminal SWITCH
block.

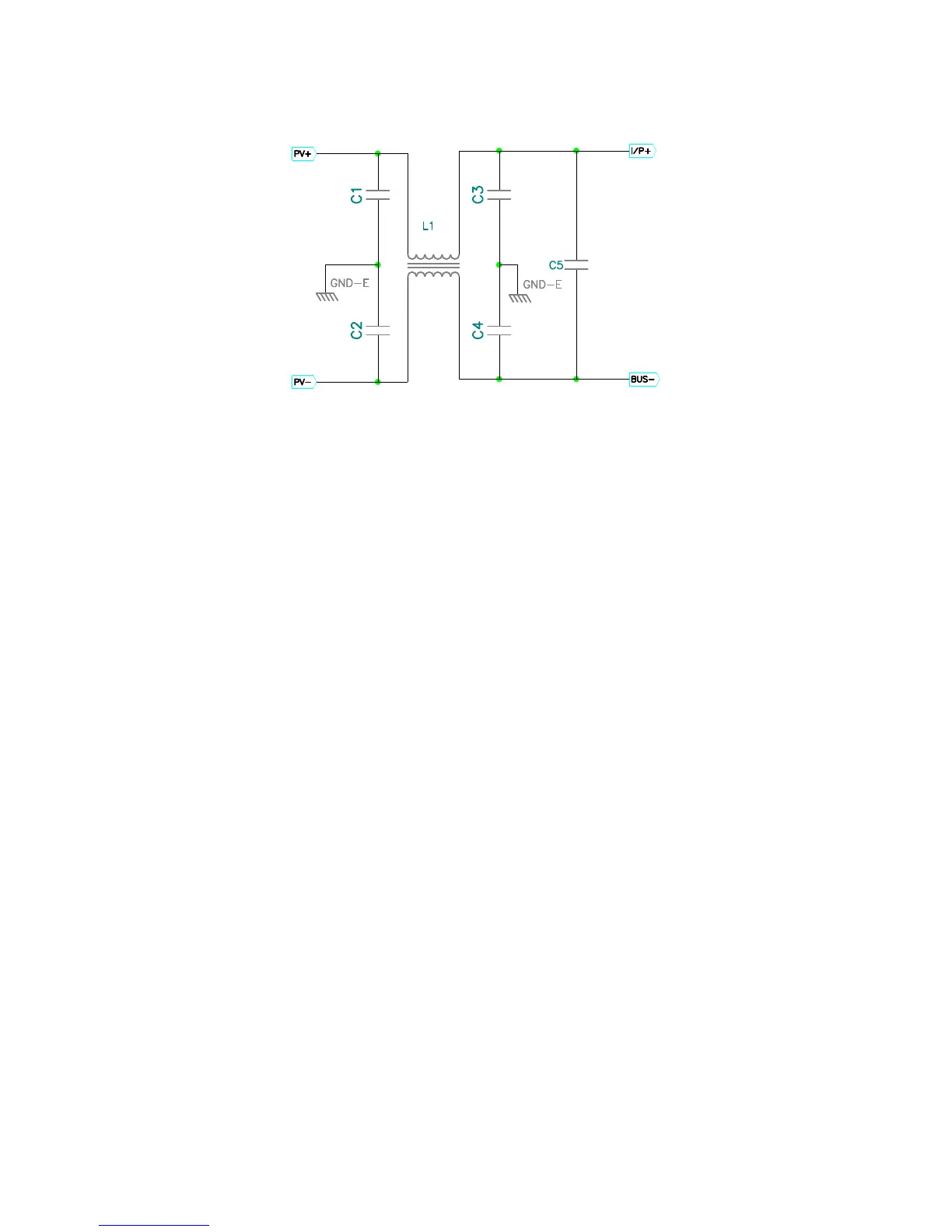

Figure 4.8 Topology of the EMI
