BESKRIVELSE OG BRUG AF MASKINEN
DESCRIPTION AND USE OF THE MACHINE
58
3
1 2

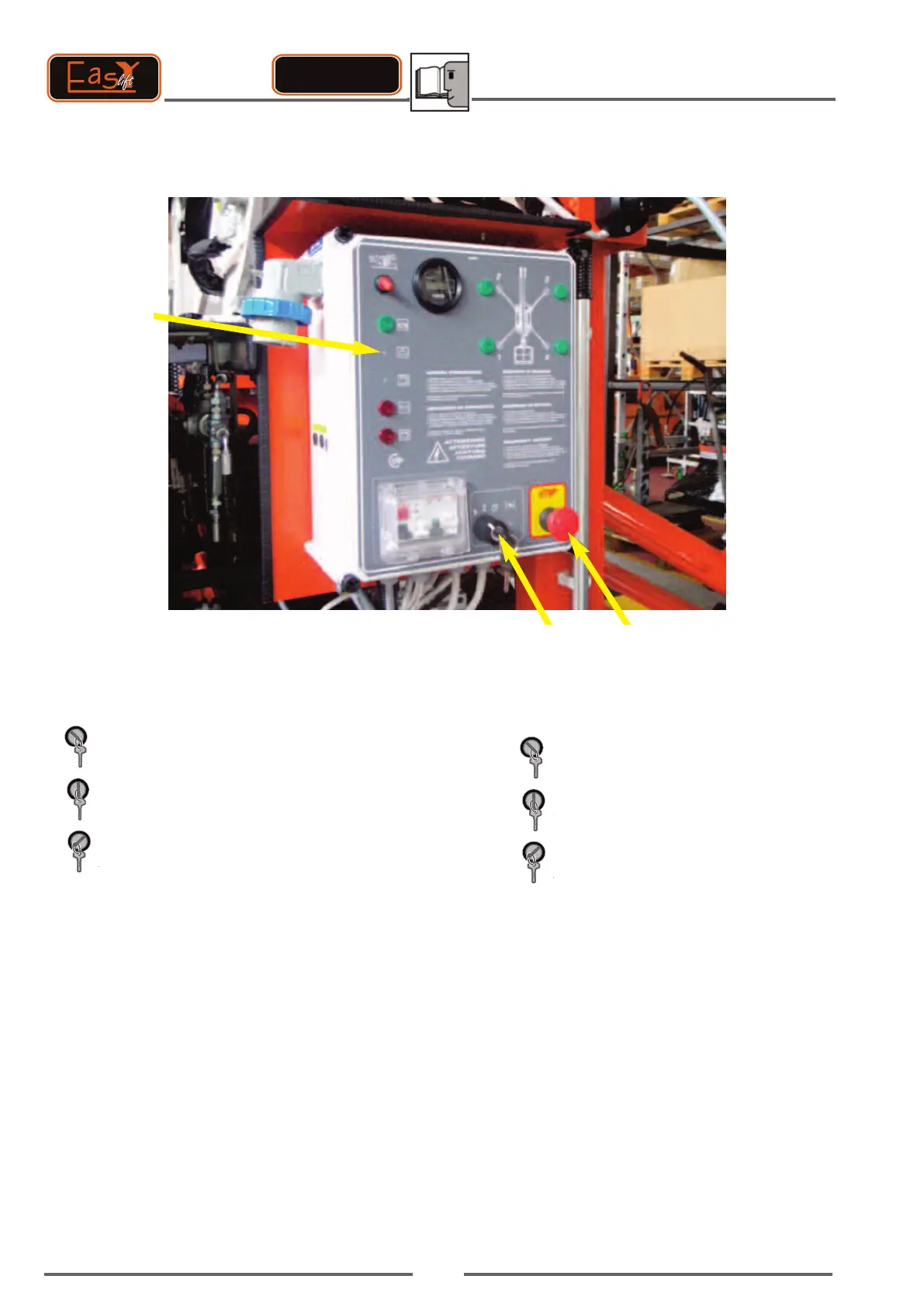

GROUND CONTROL PANEL
1 Engine motor start/voltage connection key
switch
Three-position selector switch:
(0) The motor pump is stopped and the
voltage is disconnected
(I) The motor pump is enabled and the volt-
age is connected
(II) It start the motor pump is started (the
switch is turned to position II only during the
start up of the motor, when released it will
come back to position I);
2 Emergency button
Press it to stop the machine in case of emergency:
all motors and movements will immediately stop, and
control supply power will immediately be cut off.
Reset by turning the button in the direction of
the arrows.
3 Stowen machine warning light
When this light is on the machine is completely
stowed.
mod. R 160
STYREKOMMANDOER PÅ JORD
1 Nøglevælger til star at forbrændingsmotor/
tilslutning af spænding
Vælgeren har tre positioner:
(0) motorpumpen stander og spændingen
afbrydes
(I) motorpumpen aktiveres og spændingen
tilsluttes
(II) motorpumpen starter (vælgeren skal
kun drejes til position II under startfasen,
når den slippes vender den tilbage til
positionen I);
2 Nødstopknap
Når knappen trykkes ned går maskinen i nødstop:
alle motorer og bevægelser standser øjeblikkeligt og
spændingen afbrydes til alle kommandoer.
Nødstoppet nulstilles ved at dreje knappen I pilens
retning.
3 Pilotlampe for maskine i dvale
Den tændte pilotlampe signalerer, at maskinen er i
dvaletilstand.
