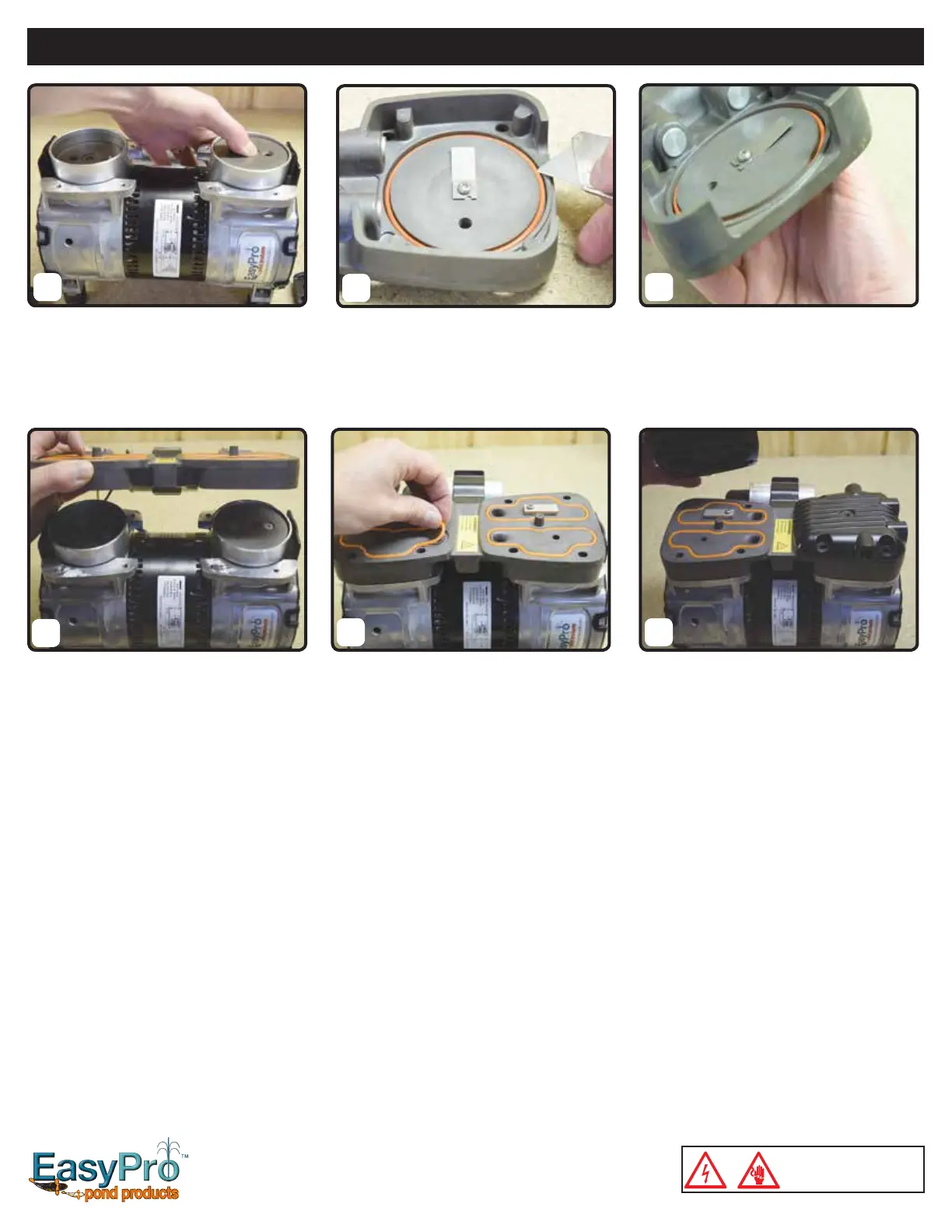

Reinstall head over valve plate(s) checking
that orientation with ports is correct. Torque
screws to 50 inch-pounds
Remove old and install new head o-rings in
the o-ring grooves on top of valve plate
Press retainer plate with piston cup into cyl-
inder all the way to the piston. The cylinder
can be rotated to align the screw holes. Ap-
ply thread locking compound (Loctite
®
222)
to retainer screws, torque screws to 10-13
inch-pounds.
Check that orientation of the valve plate(s)
with ports is correct and place over
cylinders.
7.
10.
Stratus SRC Series Repair Kit Instructions
(800) 448-3873 • Grant, MI 49327 • www.easypropondproducts.com
9156 - 5/17
Unit must be unplugged
before servicing
Inspect the leaf valves for damage or wear.
NOTE: There is one intentionally “bent”
leaf valve per set. If leaf valves need to be
replaced, a complete leaf valve plate can be
ordered. The screws holding the leaf valves
are susceptible to breaking which makes in-
dividual leaf valve replacement very dicult.
Remove the cylinder o-ring(s) from the bot-
tom of valve plate(s) and install new o-rings.
9.
8.
12.11.
Visit easypropondproducts.com/resources for more information
Check that all external accessories such as relief valves and gauges are not damaged before re-operating product.
