This document is a comprehensive manual for the EasyShed Flat Model EF-S2308, a garden shed designed for outdoor storage. It covers assembly instructions, component lists, safety guidelines, and maintenance recommendations.

Function Description

The EasyShed EF-S2308 is a flat-roof garden shed designed for general outdoor storage. Its primary function is to provide a secure and weather-resistant space for tools, equipment, and other items, protecting them from the elements. The shed features a single door for access and is constructed from steel sheeting and channels, ensuring durability.

Important Technical Specifications

Model: EF-S2308
Dimensions: 2.25m (length) x 0.78m (width) x 1.82m (height).
- This translates to approximately 2255mm (length) x 780mm (width) x 1820mm (height).
Assembly: 5-step assembly process.
Components (Sheeting):
- 6 x 1800mm Wall Sheets (SWR1)
- 1 x 1740mm Door Sheet (SD1)
- 3 x 970mm Roof Sheets (SR3)
- 1 x 1800mm Wall Sheet Narrow (SN2) – 685mm (w)
Components (Fasteners & Hardware):
- 160 x 10G x 16mm General Assembly Screws (ESCREW16)
- 28 x 10G x 16mm Roof Screws with Neoprene Seal (ESCREW16-N)
- 18 x Pop Rivets (ERIVET-S)
- 6 x Internal Channel Joiners (EICJ)
- 2 x Butt Hinges (HINGE64)
- 1 x Door Plate (EDP)
- 1 x Padbolt & Hasp (EPAH)
Components (Channels & Flashings):
- 2 x 970mm L Flashings (L970)
- 2 x 1800mm Jambs (J1800)
- 2 x 1125mm Jambs (J1125)
- 2 x 1740mm U Channels (C1740)
- 12 x 1127mm U Channels (C1127) – these are joined to form 6 x 2254mm lengths.
- 2 x 793mm U Channels (C793)
- 2 x 777mm U Channels (C777)
- 4 x 780mm U Channels Cut-Out Both Ends (C780N)
Screw Types:
- General Assembly Screws: 16mm long, self-drilling, pre-drills pilot holes in steel.
- Roof Screws: Fitted with a neoprene watertight seal, for exterior roof components.
U Channel Positioning: Higher side (20mm) always to the inside of the shed; lower side (17mm) always to the outside to allow rainwater overflow.
Anchoring: Essential for stability, with methods for concrete slabs (rebated or existing) and temporary ground pegs.
Roof Type: Non-trafficable flat roof.

Usage Features

Assembly Process: The manual outlines a 5-step assembly: Back Panel, Side Panel, Roof Panel, Door, and Front Panel. It emphasizes the importance of reading instructions thoroughly before starting.
Two-Person Assembly: Two people are recommended for handling roof and wall panels, with a third person for stabilization during installation, or timber props as an alternative.
Work Area: A level work area is crucial. Suggestions include a concrete slab or planks on the ground, or a platform made from trestles and planks.
Panel Assembly Precision: Overlapped sheets must finish flush with the ends of perimeter channels for correct shed construction. Channels should also be flush with sheeting ends.

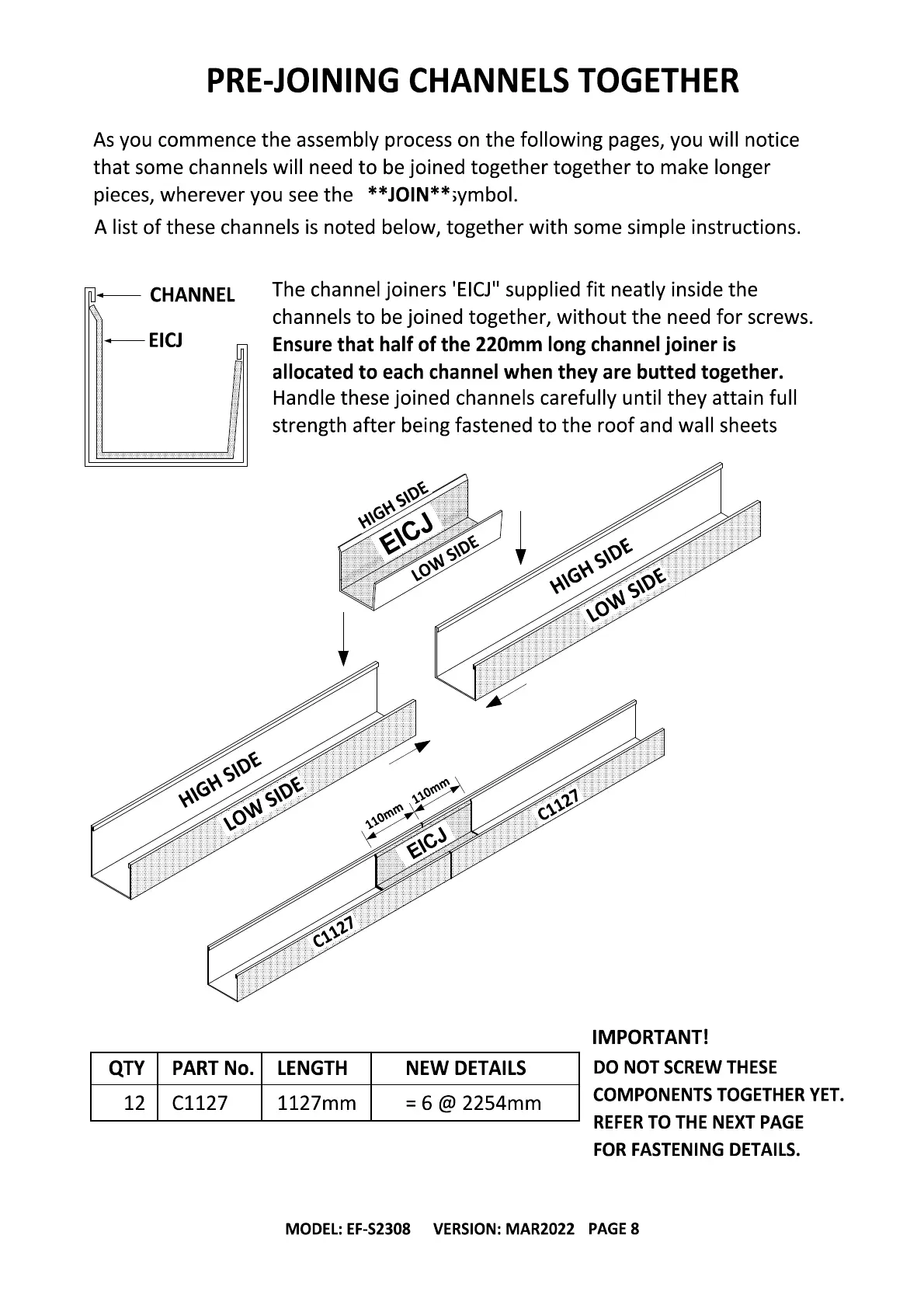

Spliced Components: Specific instructions are provided for joining channels with internal channel joiners (EICJ) to create longer components, ensuring maximum strength by fastening both outside and inside faces of the panel.
Door Assembly: Critical attention is paid to door assembly to ensure proper alignment and smooth operation. A 4-5mm hinge spacer is recommended during hinge fitting to maintain correct gaps.
Door Braces: Two diagonal door braces (J1125) are fitted to the inside face of the door for added stability.
Padbolt and Hasp: The padbolt is fitted to the door plate, with its base partially resting on the C1740 U channel to ensure smooth locking bolt operation. The hasp is then riveted to the adjacent panel.
Anchoring: The shed must be firmly anchored immediately after installation to prevent damage from wind gusts. Method A (rebated concrete slab) is highly recommended for water prevention. Method B uses concrete fixing sets for existing slabs, and Method C uses galvanised anchor pegs for temporary anchoring.
Door Opening Check: During front panel assembly, the door opening's diagonal measurements must be equal, and a 4mm gap should be maintained between the door and the right jamb. Adjustments are detailed if these conditions are not met.

Maintenance Features

Swarf Removal: Immediately after installation, all swarf (small steel shavings from screwing/drilling) must be removed to prevent corrosion and rust stains. A vacuum cleaner, broom, or garden blower is recommended.
Regular Cleaning: To maximize lifespan and maintain the protective steel coating, the shed should be washed clean twice yearly with soapy water and hosed off. More frequent cleaning is advised in coastal or industrial areas.
Fastener Checks: Regular checks of fastening points are important to ensure all components are tightly secured, especially in extreme weather conditions, as some rainwater entry may occur between components.
Waterproofing: Silicone sealants and rubber door seals (available from hardware outlets) can further assist with waterproofing.
Condensation Prevention: Plastic sheeting is recommended for protecting valuable stored items from condensation and dripping from the roof panels.
Ground Clearance: Dirt or garden mix should not be backfilled against the walls, and fertilizers/chemicals should be stored at least 300mm away from wall panels, as these can rapidly corrode components and void the warranty.
Roof Drainage: As the roof is flat, water entrapment can occur. Adding extra screws and a bead of silicone to seal joints, along with drilling small holes in perimeter channels, can help water escape and prevent seepage.
Warranty: EasyShed products are warranted for up to 20 years from the date of purchase. Proof of purchase is required for warranty claims. The manufacturer is not responsible for damage due to inadequate assembly or anchoring.
