Shadow Tray Assembly
FIG. 15

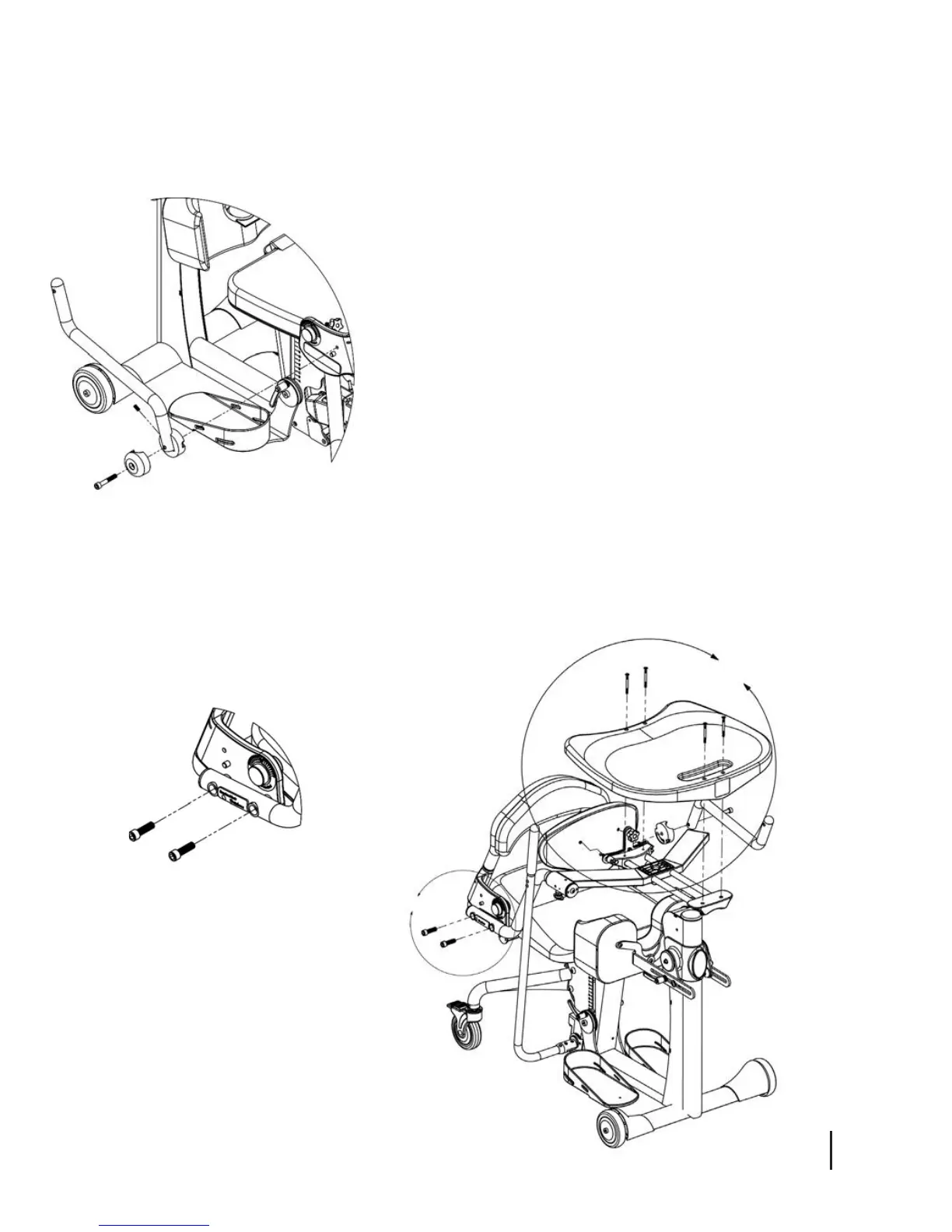

FIG. 15- To install the support arm, first remove the nut from
the pre-assembled bolt on the arm, leaving the bolt and the
two halves of the fitting (one plastic and one metal) in place
on the tube. Thread the bolt into the hip plate, as shown in
Fig. 16. Once the bolt has been secured and the support arm
has the desired level of tension, install the nut and lock
washer on the bolt protruding through the opposite side of
the hip plate, closest to the user. Use either the small end
of the wrench from the supplied tool kit, or a 17mm socket
wrench (preferred) to securely tighten the nut, see p. 30. A
setscrew in the metal half of the support arm fitting may be
used to adjust the level of the tray once the installation is
complete.
FIG. 16- Install the tray arm rest to the unit with the two
bolts attached. Tighten bolts securely.
FIG. 17- Place chest pad onto tray tubes. Place tray onto
bracket and insert the bolts into the bracket and tighten
securely.
For Shadow Tray adjustments, see p. 30.
FIG. 16
FIG. 17
