EasyStand Zing - Platform Foot Plates Adjustment; Multi-Adjustable Foot Plates Adjustment

17. Place leg assembly onto unit as shown
and line up holes. Making sure the ratchet
handle and knee clamp are facing towards
the rear of the unit. Insert both bolts and
tighten securely. Repeat steps 16 and 17 for
the other leg.
17
Knee Clamp
Ratchet Handle
Page 8
16. For the leg assembly, remove the two
bolts behind the support pad. Set aside.
18. Legs should be installed as shown.
16
Page 31
18
Platform Foot Plates

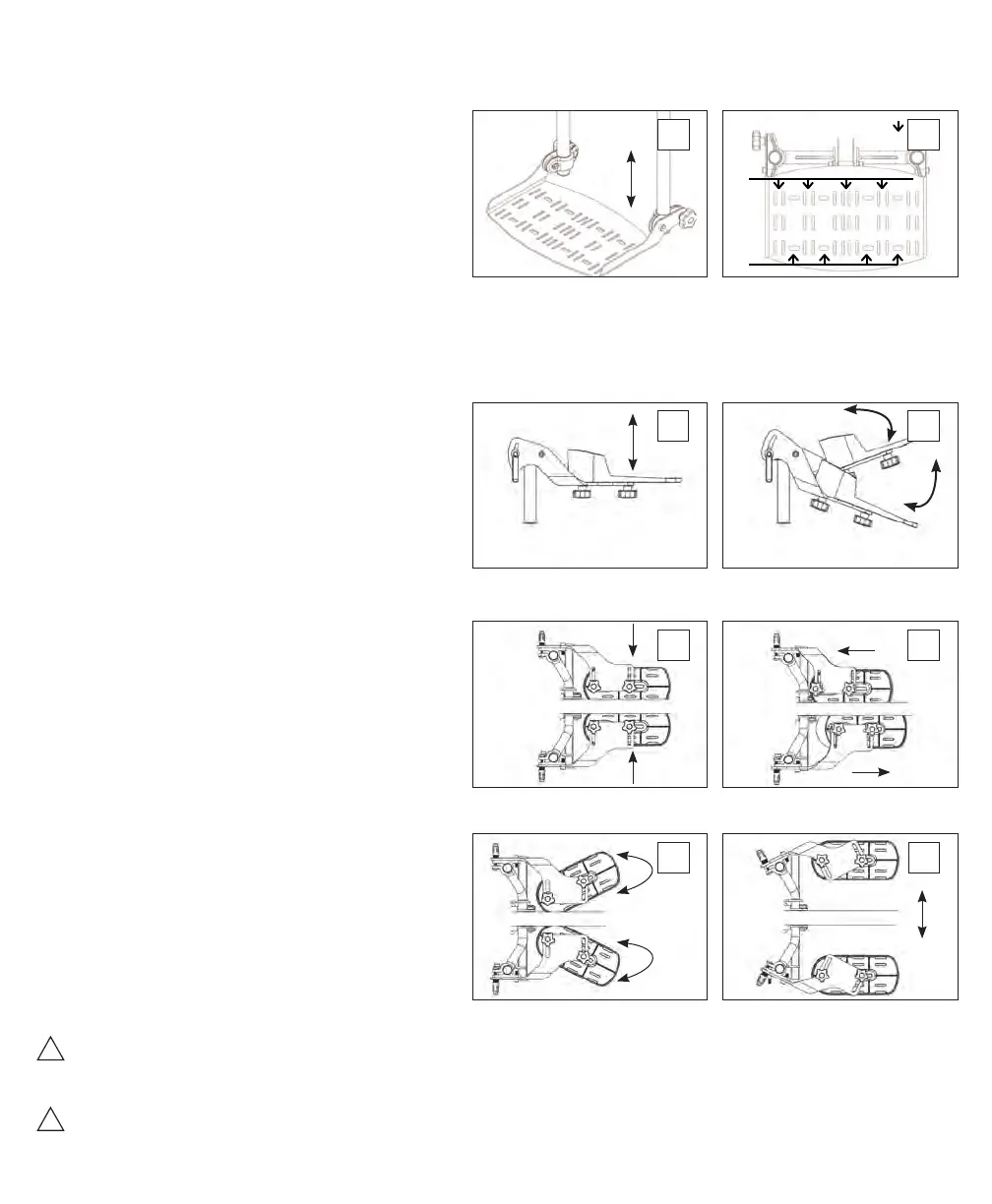

83. Height-Platfrom Foot Plates are only
height adjustable. Loosen knob, set to
desired position. Tighten securely.
84A. Straps (if ordered)-Position straps into
desired slots.
84B. Foot Holders-Position foot holders into
desired position. Insert bolt and tighten knob
securely.
Multi-Adjustable Foot Plates
85. Height-Loosen the ratchet handles
connecting the foot bracket to vertical leg
tubes to adjust foot plate height.
86. Plantar/Dorsi-Loosen ratchet handles to
tilt foot plates. Tighten securely.
87. Abduction-Loosen knobs to slide foot
plates together. Tighten knobs securely.
88. Forward/Aft-Loosen knobs underneath
foot plates, slide foot plates into position.
Tighten knobs securely.
89. Toe-in/Toe-out-Loosen knobs
underneath foot plates, slide foot plates into
position. Tighten knobs securely.
90. Abduction-Loosen ratchet handles to
spread apart foot plates, tighten securely.
Loosen knobs under foot plates and slide foot
plates apart. Tighten knobs securely.
Caution: Never reposition the foot plates
with the child in the standing position.
Caution: Avoid placing ngers in the
adjustment slot.
!
!
A
B
84
83
8685
88
87
90
89
