Vertical adapters 800/1600A on fixed
IZM low voltage circuit breakers
Eaton Industries GmbH
Electrical Sector
©2010 by Eaton Industries GmbH
Änderungen vorbehalten
Subject to alterations
05/10 AWA1230-2460 / Z8694
Moon/Doku/Heng
Printed in USA (05/10)
05/10 AWA1230-2460
Effective May 2010
Step 2: Complete the installation of all vertical adapters as shown,
paying particular attention to the positioning of the adapters on the
line and load conductors.

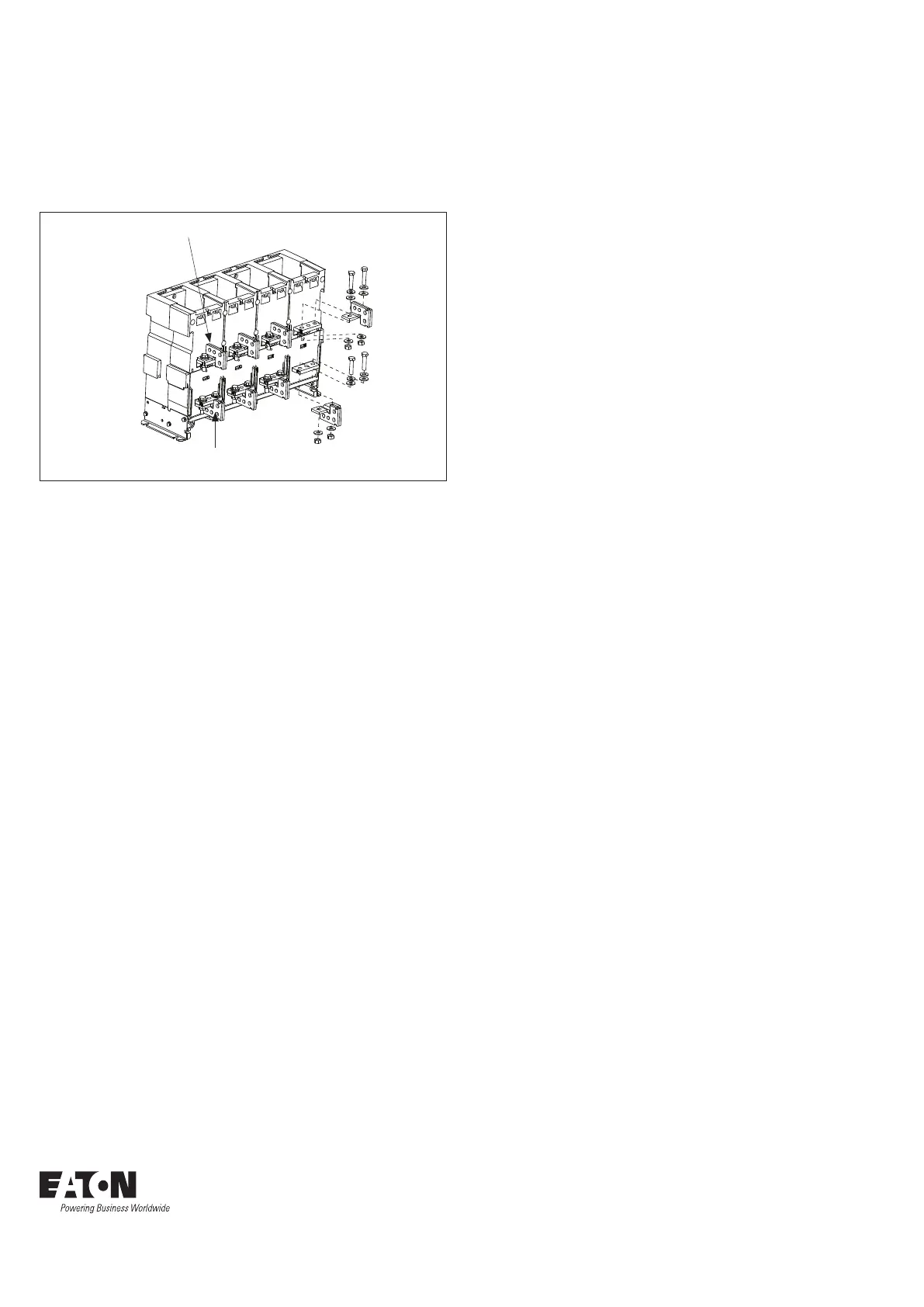

Figure 2. Step 2
Mount on Top of Line Conductor
Mount on Bottom of Load Conductor
