87INSTALLATION AND OPERATION MANUAL 25-16327-B November 2020 www.eaton.com
Section 4: Appendix
IP66 wall sounder wiring (CAS381WP, CASB383-WP)
Installation
1. Drill required holes for the cable gland fixing
2. Drill out the required fixing holes
3. Fix to mounting surface using two suitable screws

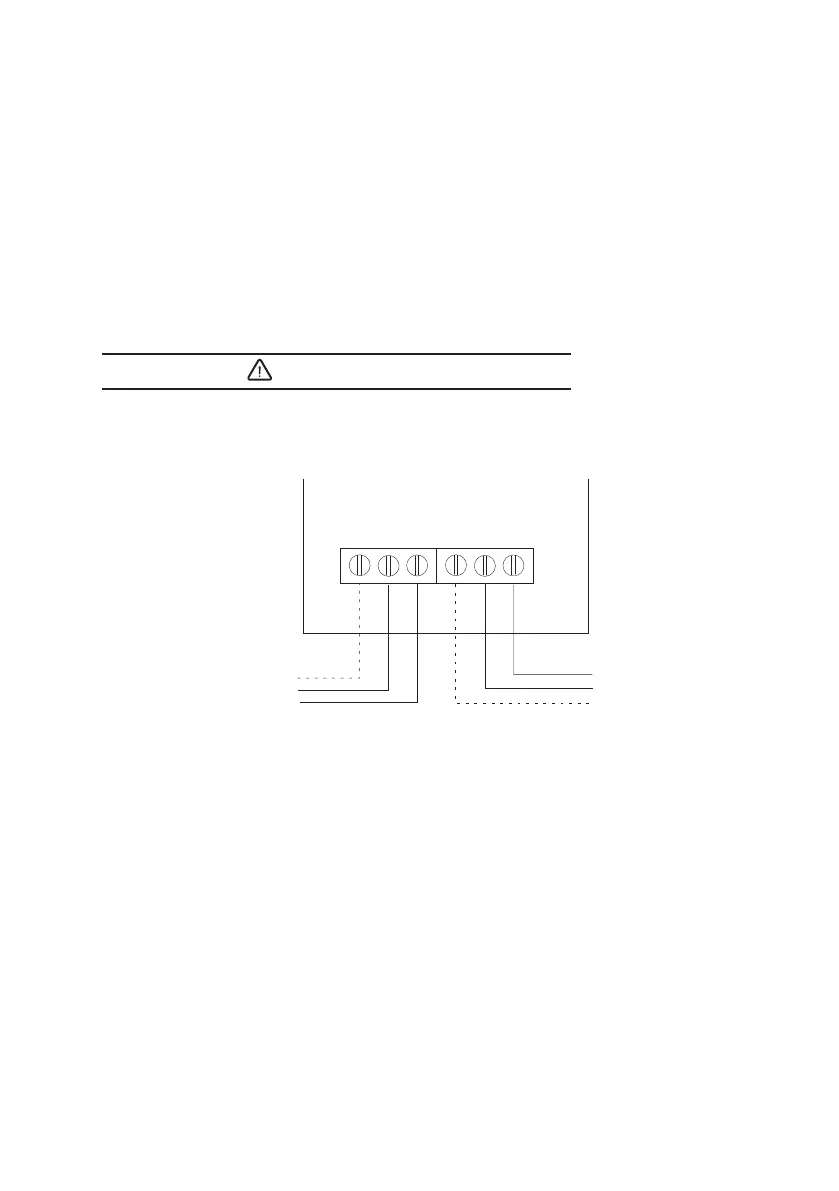

Connections
WARNING
Do NOT use high voltage testers if ANY equipment
is connected to the system. Earth screen must be
continuous along entire length of loop.
EE
EE
IINN
OO UU TT
--
--
++
++
AA nn aalloogguu ee AA ddddrreessssaa bb llee LL oooo pp
To Next Page
