Eaton HP - Horn Adjustment Procedure

7
HP, HPO, HPLB, HPOBL Hooter Technical Manual
HP, HPO, HPLB, HPOBL HOOTER TECHNICAL MANUAL TMF0049.A www.eaton.com
Adjustment
mm150
”5.91
mm55
”2.17
mm256
”10.08
mm45
”1.77
mm4,5Ø
”0.18
mm70
”2.76
oben
top
haut
parte
superior
unten
bottom
bas
parte
inferior

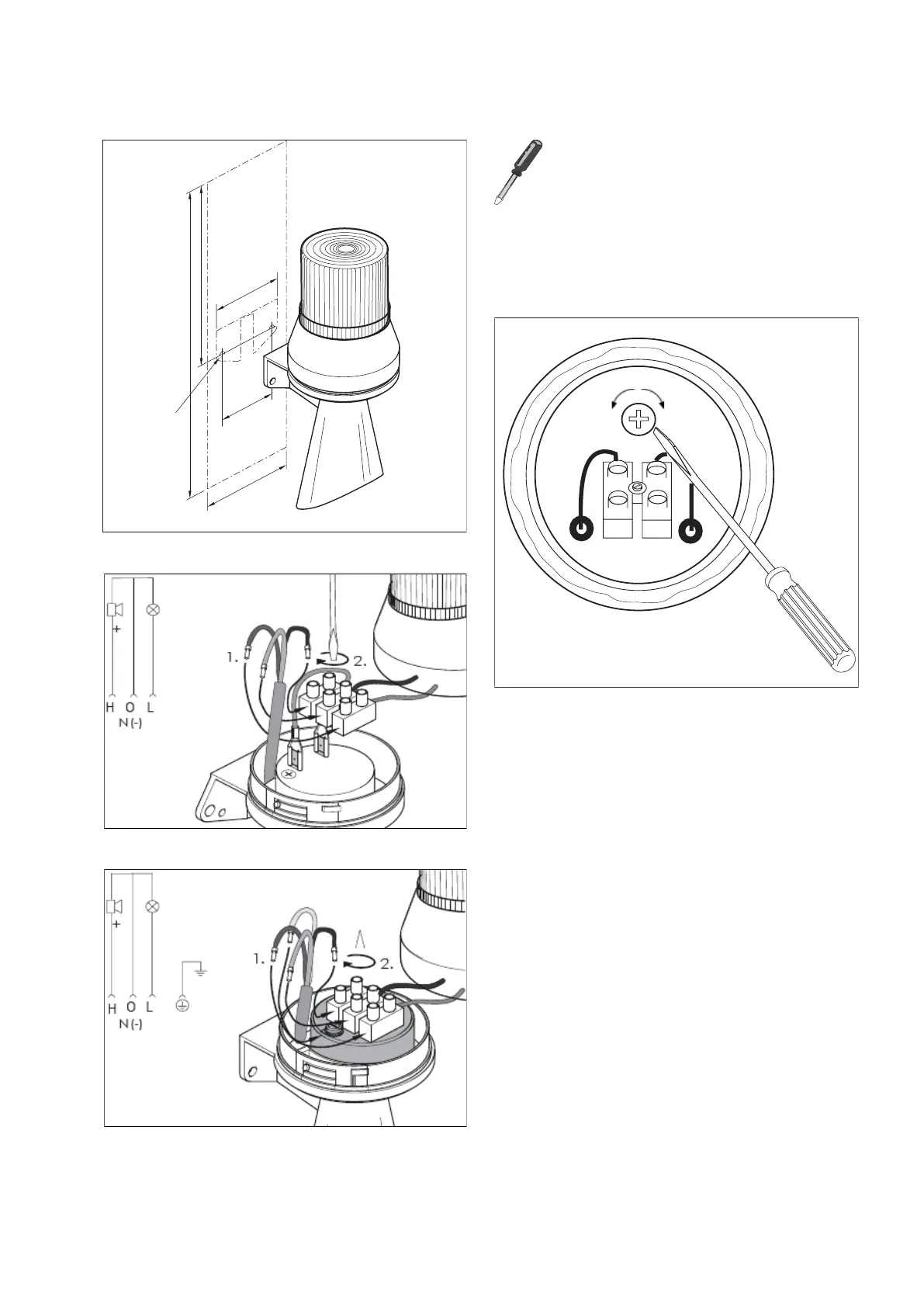

The horn is correctly adjusted when supplied. Due to
longer term operation the horn can get misaligned. By
turning the adjustment screw it is possible to reset the
horn to the ideal condition.
