TSN MTL830x Transition
July 2019
DRAFT 02 March 2016
4
11. Use the software to configure the MTL838C to match the old MTL830B system settings you recorded (see the MTL83xC
LLMUX Emulation manual (INM MTL83xC LLMUX) for details).
On the MTL838C tab:
a. Check for relevant firmware updates for the MTL831/MTL838C
b. Select LLMux as the Communucation Protocol.
c. Select the MTL831C transmitters that are connecred (#1,#2, or both).
d. Select the type of inputs connected to each MTL831C (mV/TC or RTD).
e. Select the Line Frequency to 60Hz or 50Hz (frequency of power on site).
f. Click the Download -> MTL838C button.

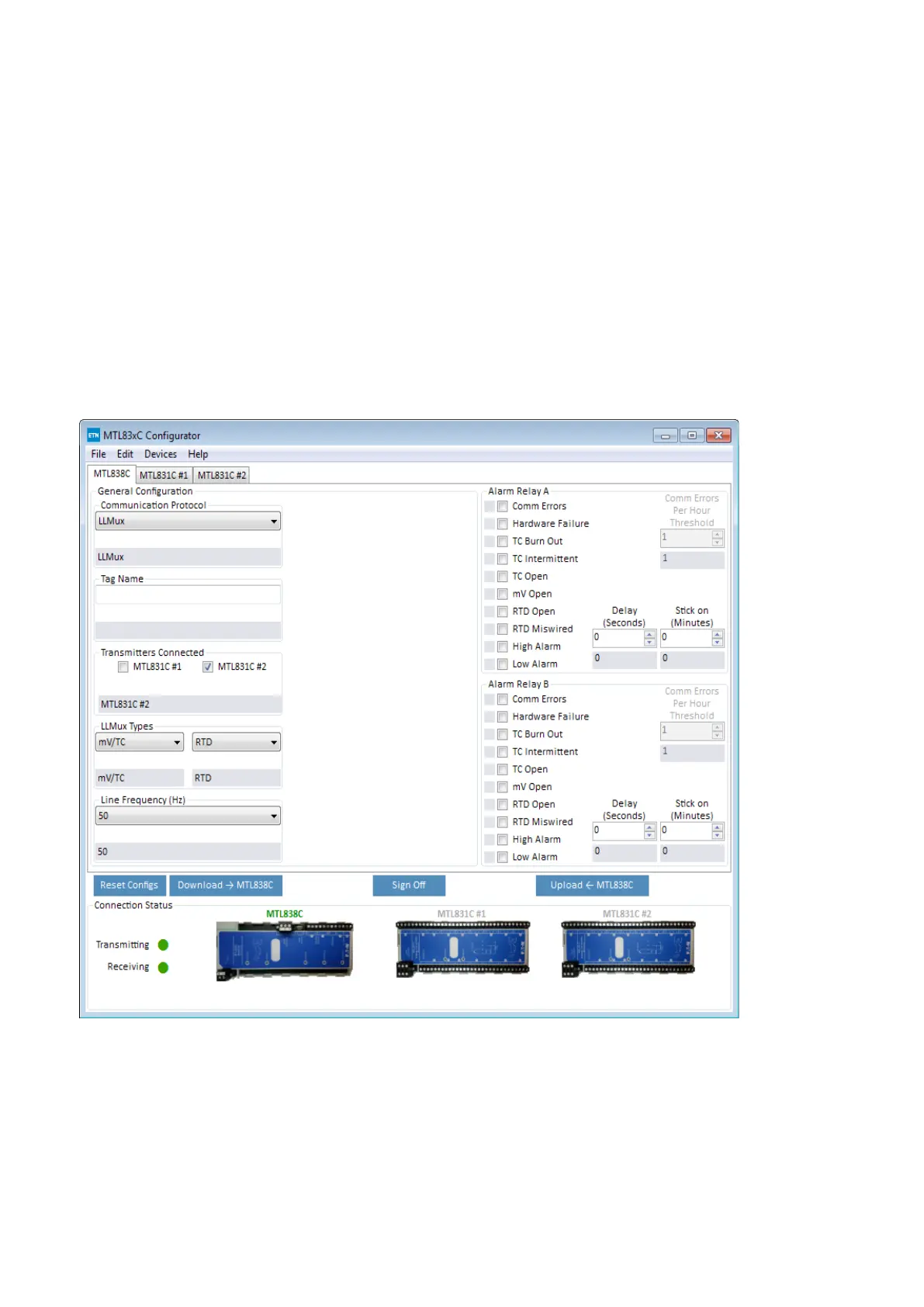

Figure 4: Example MTL838C Configuration
