EAW SB330zF - Performance Data Graphs; Frequency Response: Processed; Frequency Response: Unprocessed; Frequency Response: Digital Signal Processor

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel 800 992 5013 / 508 234 6158 fax 508 234 8251 www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0228 (A) SB330zF April 2005
SB330zF Specifications group · S
PERFORMANCE DATA
See NOTES GRAPHIC DATA for details

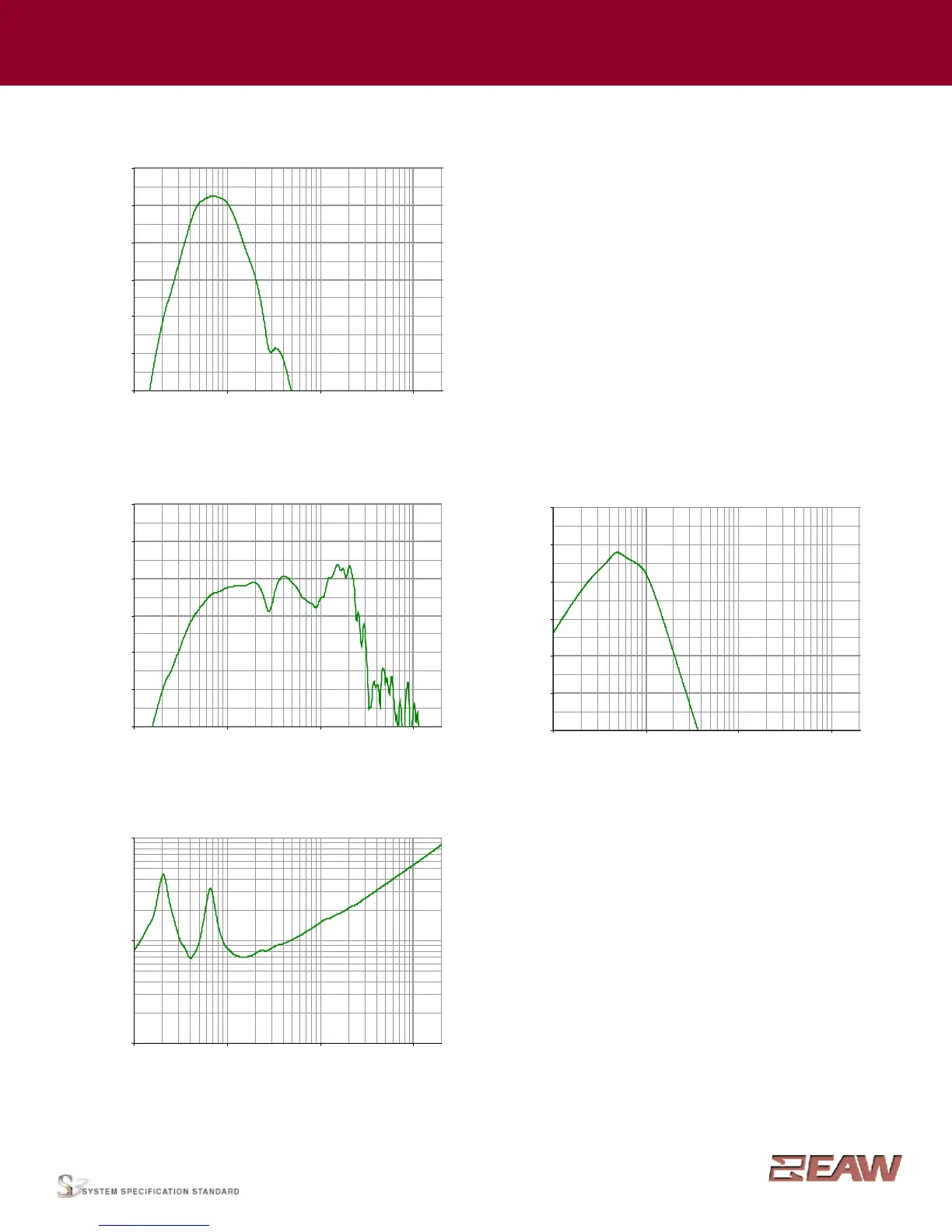

Frequency Response: Processed
LF Whole Space = green
SPL (dB)
Frequency Response: Unprocessed
LF Whole Space = green
SPL (dB)
Frequency Response: Digital Signal Processor
LF = green
dB re 0.775 V
Impedance Magnitude
LF = green
Ohms
120
110
100
90
80
70
60
100
10
1
10 100 1000 20000
Frequency (Hz)
10
0
-10
-20
-30
-40
-50
20
10
0
-10
-20
-30
-40
10 100 1000 20000
Frequency (Hz)
10 100 1000 20000
Frequency (Hz)
10 100 1000 20000
Frequency (Hz)
