SB625zP Specifications group · M
ENCLOSURE
Material Baltic birch plywood
Finish Wear resistant textured black paint
Grille Powder-coated perforated steel
[150.9]
5.94

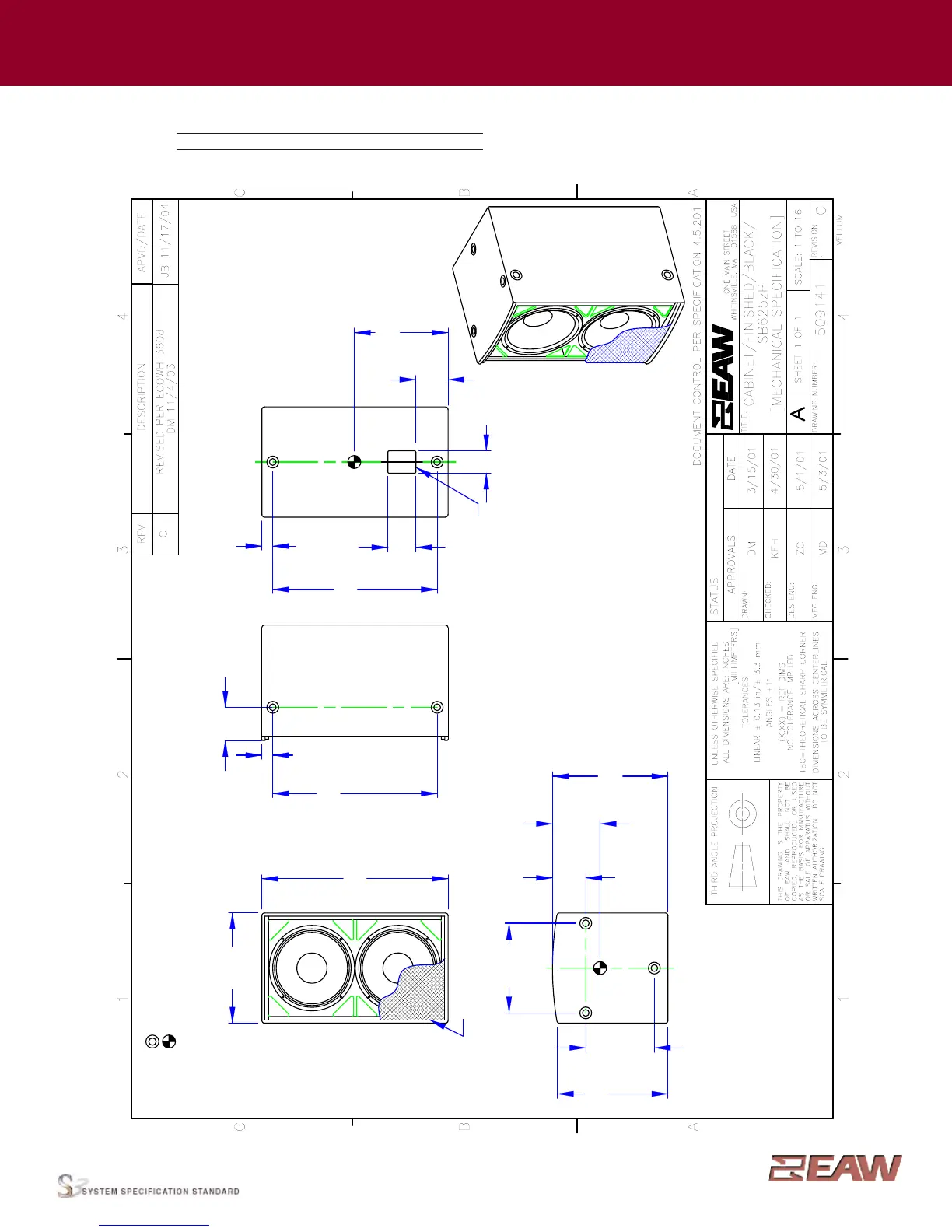

NOTES:
1. SYMBOL INDICATES MOUNTING POINT 3/8-16 THREADED HOLE (PI ANGLE).
2. SYMBOL INDICATES CENTER OF BALANCE.
3. WEIGHT APPROX. 127 lb [57.6 kg].
4. SHIPPING WEIGHT APPROX. 139 lb [63 kg]
RIGHT SIDE
DIMENSIONS APPLY
TO BOTH SIDES
FRONT
[502.0]
20.62
[215.9]
L
[406.4]
16.00
19.76
12.25
[311.1]
DIMENSIONS APPLY
TO TOP & BOTTOM
BOTTOM
C
5.94
[150.9]
[523.8]
8.50
[745.6]
29.36
[49.5]
1.95
19.69
33.25
[844.6]
[500.1]
GRILLE PARTIALLY SHOWN
4.00
INPUT
EA STERN A C O USTIC W ORKS
PRODUCTION
SB625zP
[101.6]
BACK
[127.0]
5.00
L
C
[425.4]
16.75
[146.1]
5.75
[49.5]
1.95
[745.6]
29.36
NOTES: This drawing has been reduced. Do not scale.
For WP version, add 0.25 in / 6.4 mm to the outside dimensions = 0.125 in / 3.2 mm all around.
