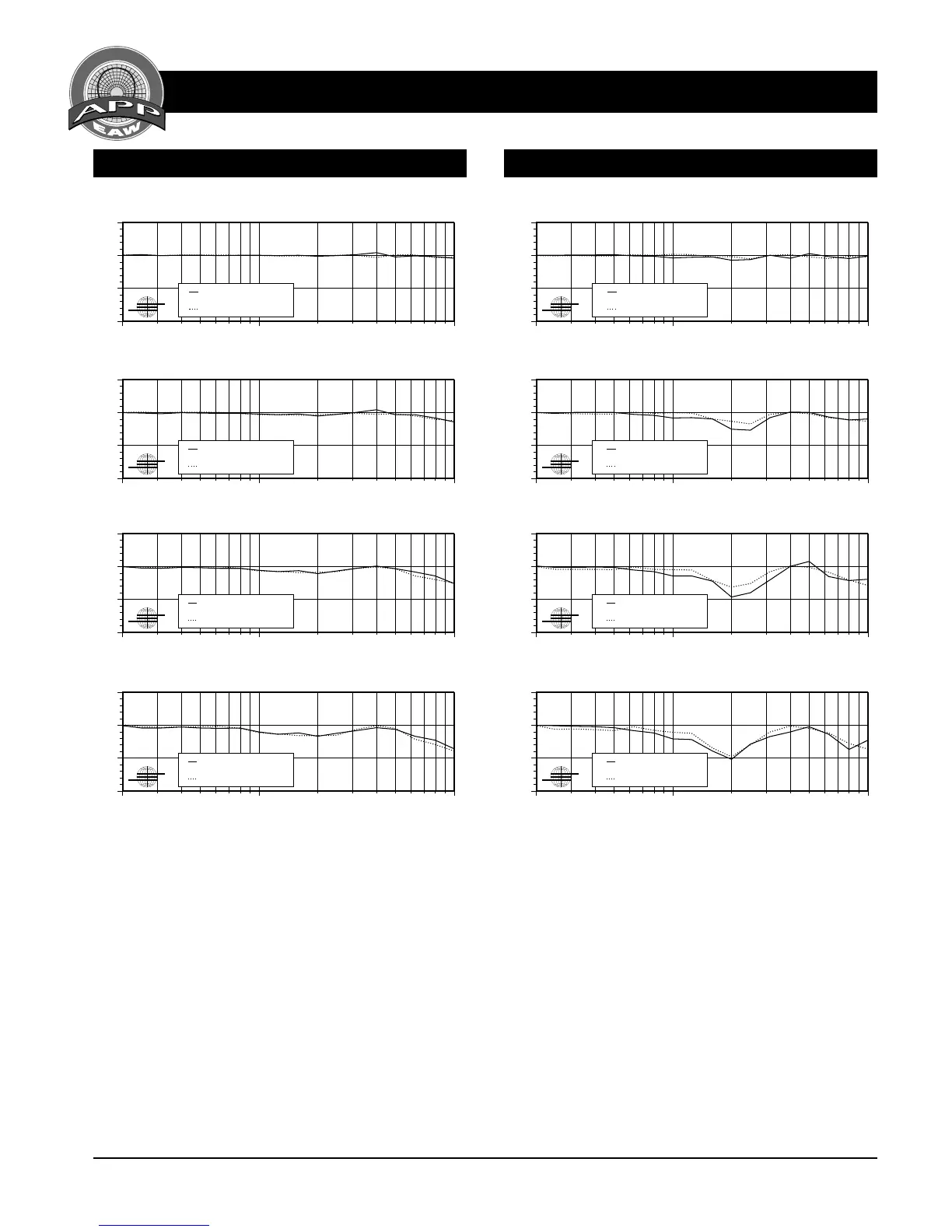

HORIZONTAL OFF-AXIS RESPONSE VERTICAL OFF-AXIS RESPONSE
Performance Data UB12
On-axis response normalized to 0 dB. On-axis response normalized to 0 dB.
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Horizontal +10 degrees
Horizontal -10 degrees
UB12 Horizontal ±10°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Horizontal +20 degrees
Horizontal -20 degrees
UB12 Horizontal ±20°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Horizontal +30 degrees
Horizontal -30 degrees
UB12 Horizontal ±30°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Horizontal +40 degrees
Horizontal -40 degrees
UB12 Horizontal ±40°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Vertical +10 degrees
Vertical -10 degrees
UB12 Vertical ±10°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Vertical +20 degrees
Vertical -20 degrees
UB12 Vertical ±20°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Vertical +30 degrees
Vertical -30 degrees
UB12 Vertical ±30°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Vertical +40 degrees
Vertical -40 degrees
UB12 Vertical ±40°
K
B
