EBA 430 E - Machine Installation; Attaching Control Handles; Electrical Connection

EBA 430 E • EBA 430 EP
-13-
C
A
B
-12-
1.
2.
3.
Unpack the cabinet (A), (accessories) or stand
(B), (accessories) and assemble according
to the enclosed separate instructions.
2 strong people are required to lift the
machine onto the cabinet or stand. Beware of
fingers! Risk of injury!

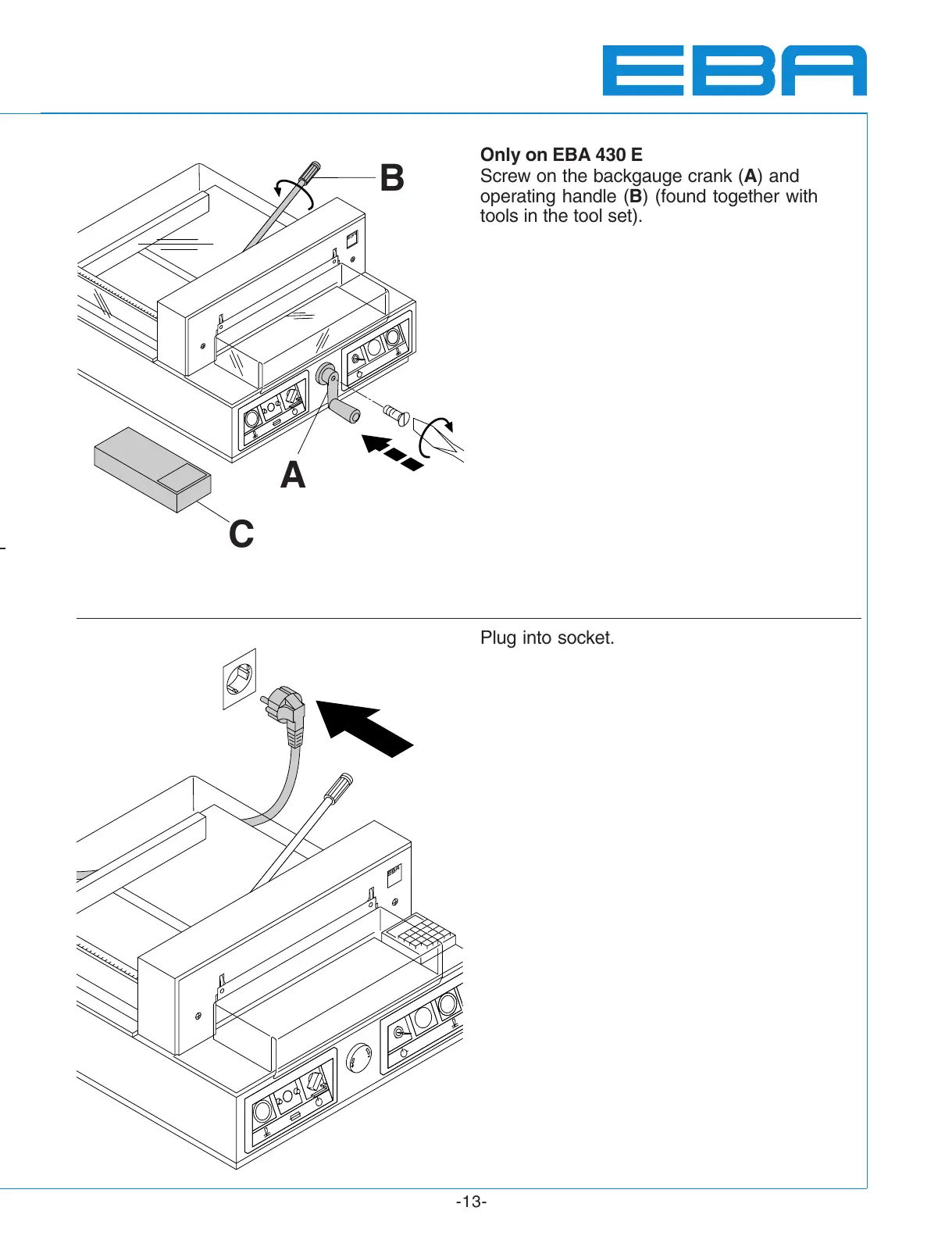

Only on EBA 430 E
Screw on the backgauge crank (A) and
operating handle (B) (found together with
tools in the tool set).
Plug into socket.
B
A
