EBA 430 E - Measurement System Details; EBA 430 E Measurement Scale; EBA 430 EP Digital Display

EBA 430 E • EBA 430 EP
B
C
A
EBA 430 E
EBA 430 EP
-17--16-
A
B
D
E
EBA 430 E
EBA 430 EP
C
EBA 430 E
The backgauge has to be adjusted by the
handle with calibration ring (A). Measurement
has to be adjusted from the rear.
EBA 430 E

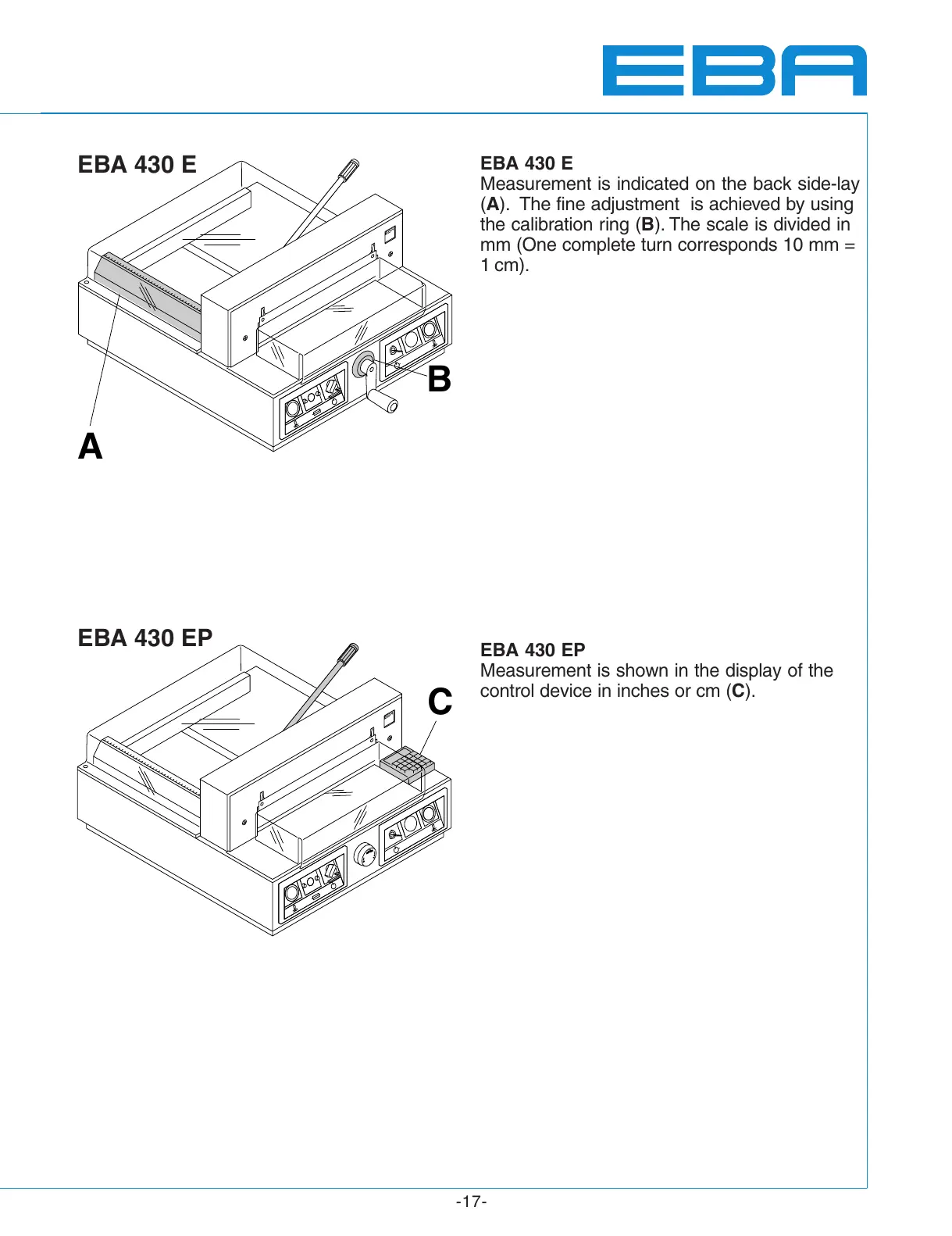

Measurement is indicated on the back side-lay
(A). The fine adjustment is achieved by using
the calibration ring (B). The scale is divided in
mm (One complete turn corresponds 10 mm =
1 cm).
EBA 430 EP
The graduation is done manually via the
handle with calibration ring (B) or by
programming (C) the cutting measurements.
(If Display shows "
C" the pressure lever (D)
has to be moved to the right, so the
backgauge (E) is moving).
EBA 430 EP
Measurement is shown in the display of the
control device in inches or cm (C).
