EBA 430 E - Basic Cutting Workflow; Paper Positioning and Alignment; Securing the Safety Guard

EBA 430 E • EBA 430 EP
B
A
C
-19-
A
-18-
Optical cutting line (A) that indicates the exact
position of the cut.(Only use when no exact cut
is required).
Only for EBA 430 E
Change of measurement through oversight is
avoided by pulling out the lever.

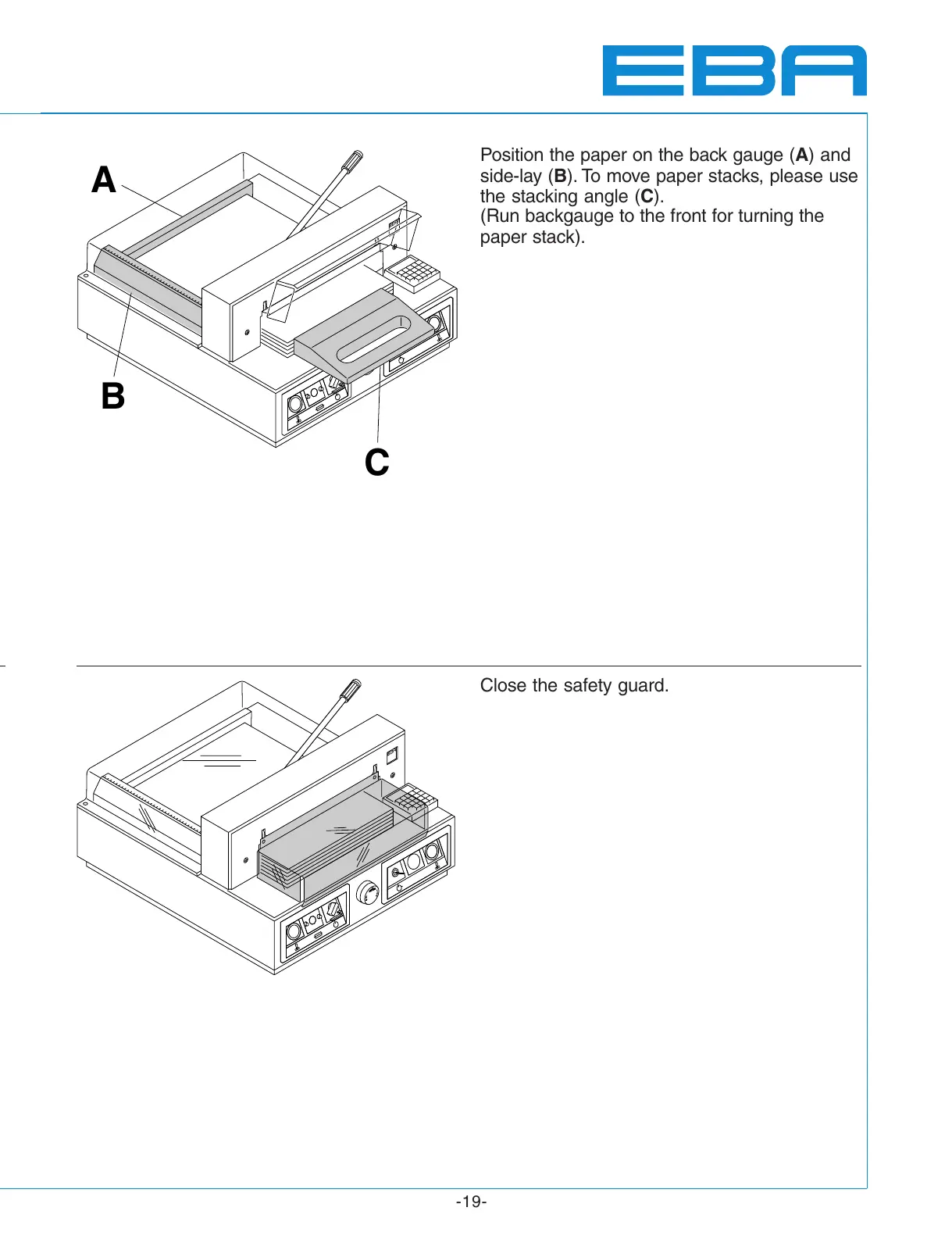

Position the paper on the back gauge (A) and
side-lay (B). To move paper stacks, please use
the stacking angle (C).
(Run backgauge to the front for turning the
paper stack).
Close the safety guard.
