EBA 430 E - Machine Safety Features; Guard and Two-Handed Control; Pre-Operation Safety Checks

EBA 430 E • EBA 430 EP
B
A
B
C
A
≤15mm
≤0.59inch
-9--8-
A
A
A
B
A
C
C

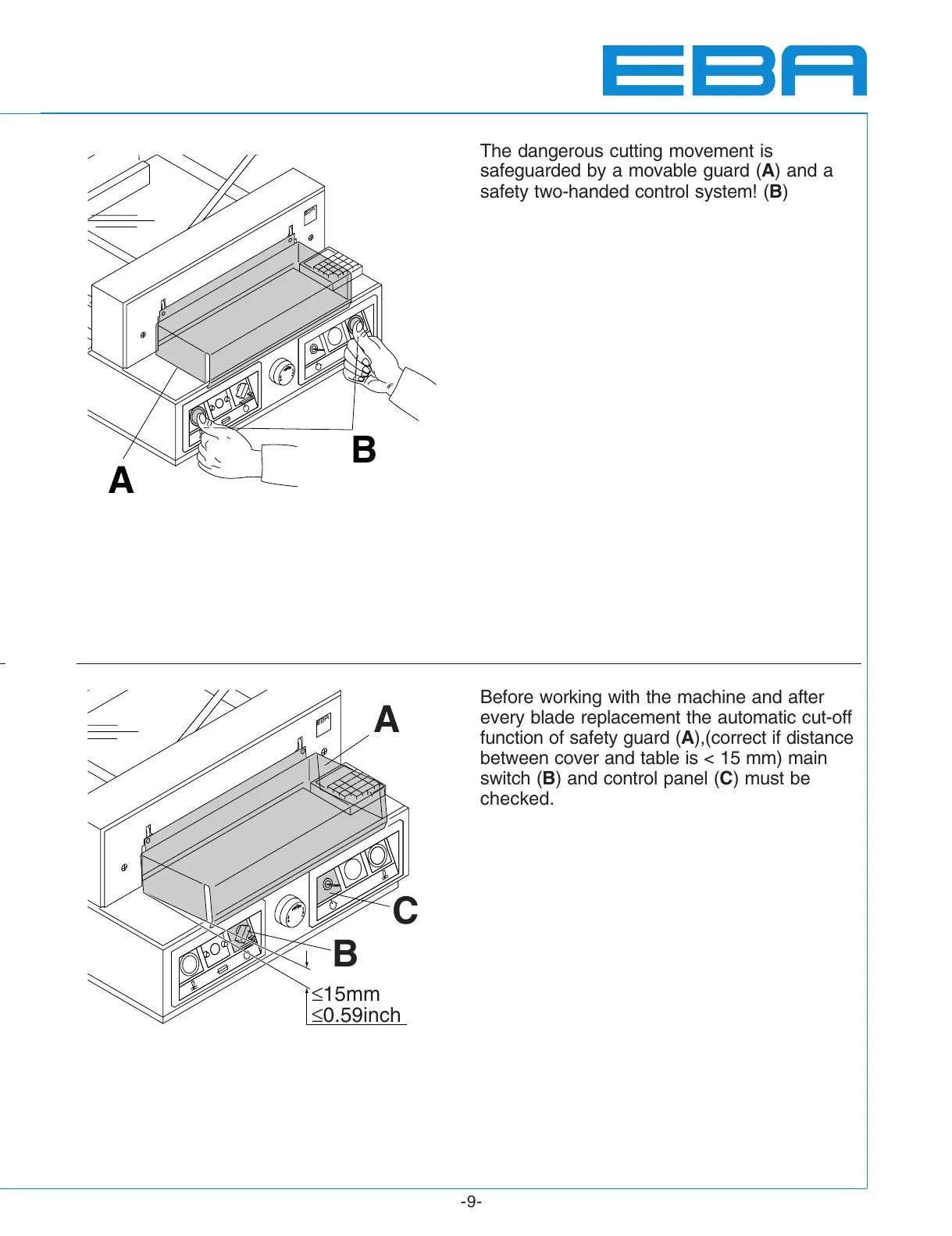

Operating the machine without safety device
(front safety guard (A), rear screwed safety
guard (B) and panel (C) is forbidden!
The dangerous cutting movement is
safeguarded by a movable guard (A) and a
safety two-handed control system! (B)
Before working with the machine and after
every blade replacement the automatic cut-off
function of safety guard (A),(correct if distance
between cover and table is < 15 mm) main
switch (B) and control panel (C) must be
checked.
All components which may endanger the
operator are covered by a guard!
