EBA 430 EP - Operating Elements; Main Controls and Safety; Backgauge and Positioning; Display and Unit Selection

EBA 430 E • EBA 430 EP
cm
inch
-21--20-
A
A
Before every cut the lever must be pushed to
the left and tightened with light pressure.
Press both buttons of the two-hand activation
(A) simultaneously and keep them
pressed until the paper is completely cut.

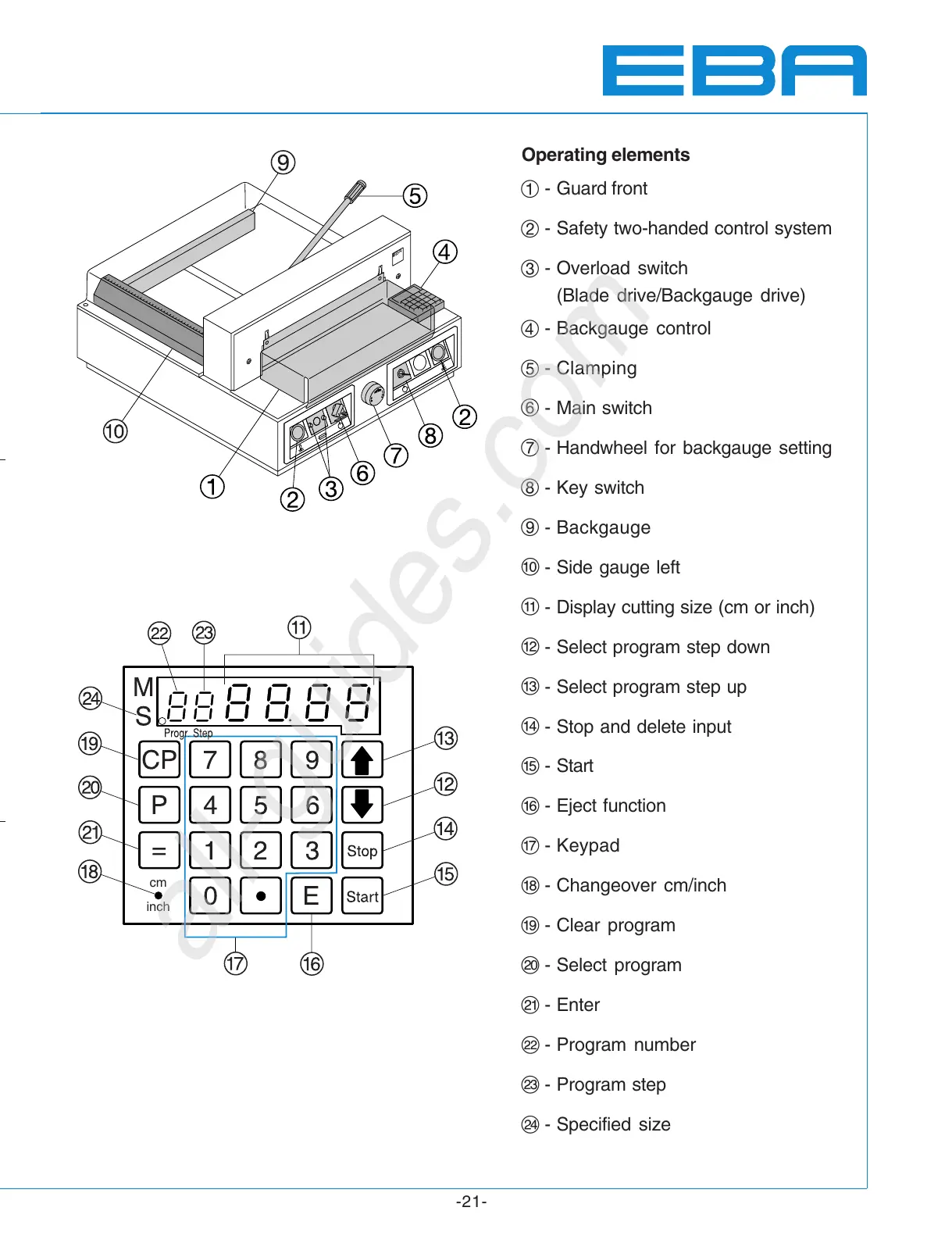

Operating elements
A
- Guard front
B
- Safety two-handed control system
C
- Overload switch
(Blade drive/Backgauge drive)
D
- Backgauge control
E
- Clamping
F
- Main switch
G
- Handwheel for backgauge setting
H
- Key switch
I
- Backgauge
J
- Side gauge left
K
- Display cutting size (cm or inch)
L
- Select program step down
M
- Select program step up
N
- Stop and delete input
O
- Start
P
- Eject function
Q
- Keypad
R
- Changeover cm/inch
S
- Clear program
T
- Select program
U
- Enter
V
- Program number
W
- Program step
X
- Specified size
Cutting stop or interruption
Release one or both buttons (A) of the two-
hand control.
